Specification
Brand : AUZHU

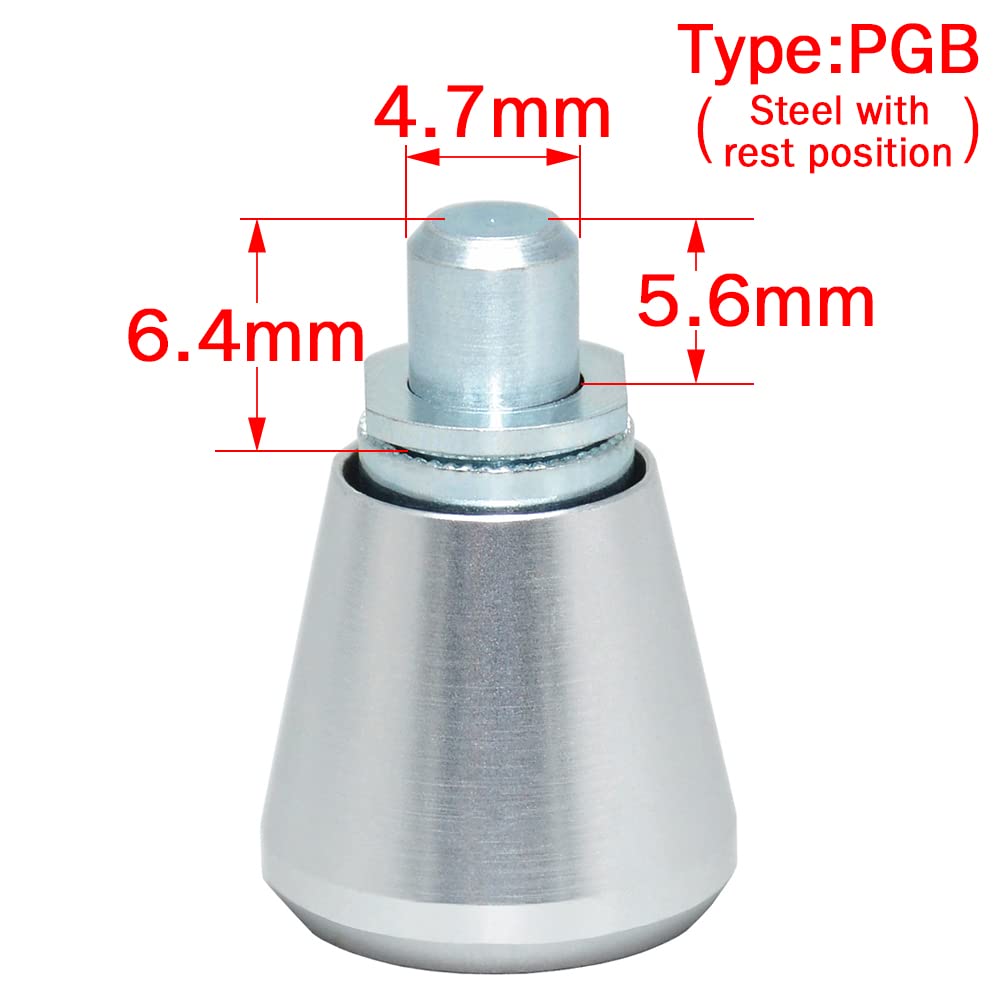

BulletPoint1 : PGB is the model number for this product. The dimensions you have selected are: spring pin diameter B is 4.7 mm; spring pin length S is 6.4 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found under the corresponding letters in the specification sheet, and several sizes are available.
BulletPoint2 : [Material of main body: Carbon Steel]; [Surface treatment of main body: Galvanized]; [Material of spring pin: Carbon Steel]; [Surface treatment of spring pin: Galvanized]; [Material of the handle: Carbon Steel]; [Surface treatment of handle: Galvanized]; [Material of built-in spring: Stainless Steel ]
BulletPoint3 : How to use: This Indexing plungers can be divided into two types of structures with a lock type and without a lock type. This product model PGB is an plunger with a lock type. When in use, pull the handle out and rotate it 90 degrees and release it, clip the handle on the main body, and the pin will always keep retracted in the plunger; when the pin needs to be ejected, pull the handle again and rotate it 90 degrees and release it, Insert the handle into the groove and the pin will pop out.
BulletPoint4 : This product is an indexing plunger with a built-in spring. The extension and retraction of the pin can be controlled by adjusting the handle, so as to achieve the effect of indexing, positioning or stop limit. Indexing elements are designed to reproduce locked positions defined by indexing bores. Indexing plungers are made up of a threaded body with or without a knob and a plunger, in different high-quality materials: steel, stainless steel and aluminum alloy.
BulletPoint5 : Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.

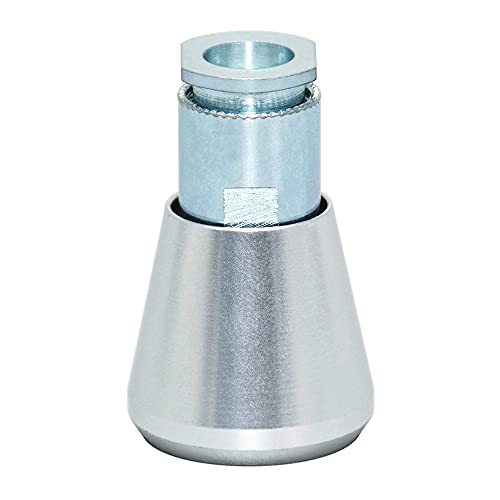

ItemName : AUZHU- PGB - Metric- Steel Galvanised Indexing plungers Locking plungers with Rest Position Spring plungers Locating plungers Dowels Positioning Elements Wheel Bolts Size: B4.7 mm - S 6.4 mm
ItemShape : Pgb
ItemTypeKeyword : push-fit-ball-nose-spring-plunger
Manufacturer : AUZHU
Material : Carbon Steel
MeasurementSystem : Metric
ModelNumber : PGB
NumberOfItems : 1
NumberOfPieces : 1
PartNumber : PGB-B4.7 mm - S6.4 mm
PinType : Linchpins
ProductDescription : About this product:
* PGA and PGB Spring-Loaded Plungers provide convenient installation and removal of components. Activated with a simple “pull,” these plungers offer simplified positioning of sliding component and quick-release for easy removal. The spring pin provides design flexibility for limited space applications, and can be used as a locator pin in sliding applications or quick-release hinge pin for removable doors or drawers.
* Scope of application: This indexing plunger is made of high-quality carbon steel, which is strong, wear-resistant and corrosion-resistant. It can be widely used in standard parts of precision equipment such as factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, plastic molds, etc.
* We are a factory, if you need more special hardware parts, we can provide customized processing services. We can customize the style and size you need according to the customer's drawings or requirements, and welcome your letters.

ProductSiteLaunchDate : 2022-10-18T13:55:14.374Z
Size : Pin diameter: 4.7 mm, Pin length: 6.4 mm
SupplierDeclaredDgHzRegulation : not_applicable
UnspscCode : 31160000
