Specification
Brand : HinLIaDa
BulletPoint1 : 【Efficient Motor】Equipped with a single-phase asynchronous motor, 750W, with aluminum shell, this electric hydraulic pump is energy efficient, powerful, and durable. Hydraulic pump working pressure: 2Mpa to 70Mpa. Rotate speed:1400r/min. Flow rate: 0.6L/min - 5L/min.
BulletPoint2 : 【Large Capacity Tank】With a hydraulic pump tank, 7L capacity, the hydraulic power pack is efficient. A visible window for monitoring the inside. The pump uses the 15 - 46 anti-wear hydraulic oil. It features compact size, lightweight, simple structure, and ease of use.
BulletPoint3 : 【Accurate Pressure Gauge】This air hydraulic pump has a precise pressure gauge, resistant to shock, helping to observe the pressure when the pump is working at any time. From2Mpa to 70Mpa, you can try slowly and choose the right working pressure you need.
BulletPoint4 : 【Various Application】If the pump is equipped with other hydraulic tools, it can work on several assignments such as lifting, pressing, bending, straightening, cutting, assembly and dis-assembly. Reduce manual work and maximize work efficiency.
BulletPoint5 : 【Effective Oil Volume】Manage this double-acting hydraulic gear pump by the solenoid valve. The high-pressure oil pipe is of high quality and durability. Control two with double pipes.
Color : Red
IncludedComponents : 1 X Electric Driven Hydraulic Pump,1 X Oil Hose(1.8M),1 X Quick Connector

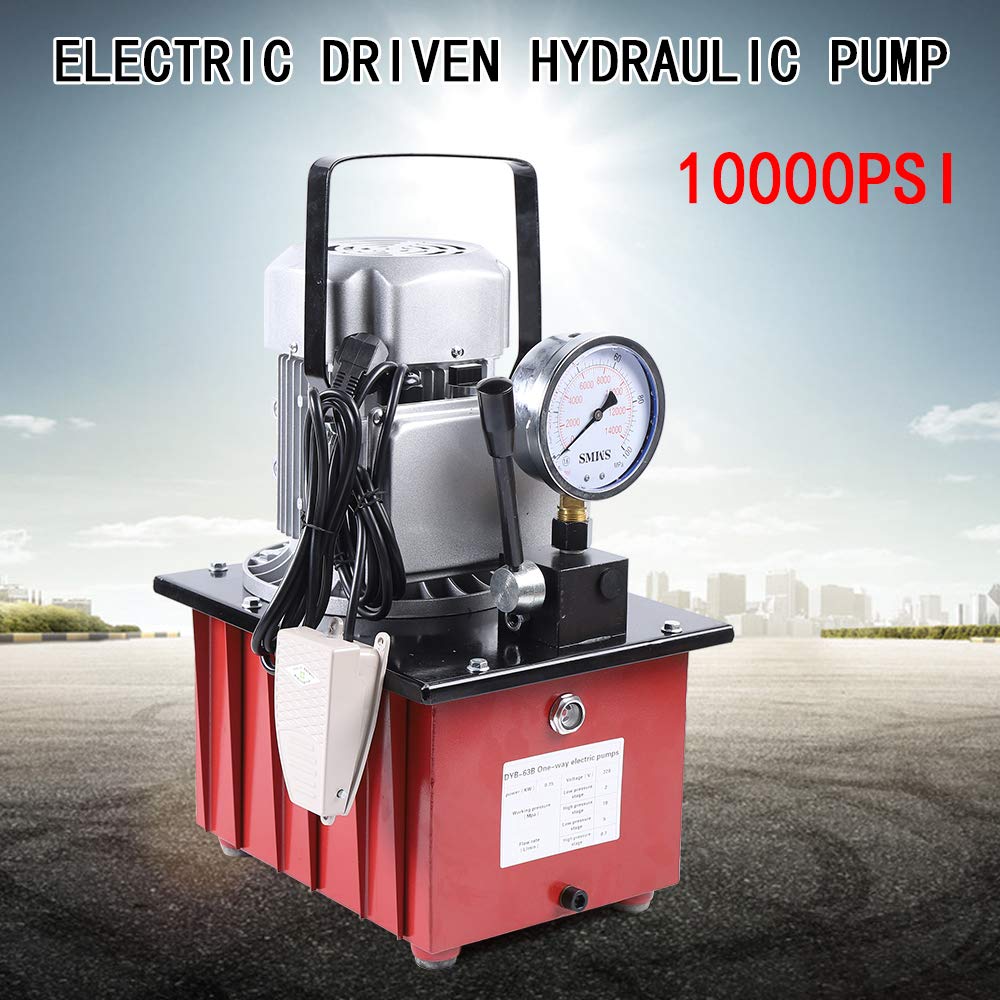

ItemName : HinLIaDa 10000PSI Electric Hydraulic Pump, 750W 110V Single Acting Hydraulic Driven Pump 7L Solenoid Pedal Hydraulic Power Pack Cylinder Hydraulic Pump Manual Valve Controls Return Oil (red)
ItemTypeKeyword : hydraulic-pumps
Manufacturer : HinLIaDa
ModelName : 10152 PSI Electric Hydraulic Pump
ModelNumber : 10152 PSI
NumberOfItems : 1
ProductDescription :

Application

The Pump Can Be Used For a Variety Of Hydraulic Equipment.

If The Pump Is Equipped With Other Hydraulic Tools, It Can Work On Several Assignments Such As Lifting, Pressing, Bending, Straightening, Cutting, Assembly And Dis-Assembly.

Working Mode: Manual Valve Controls The Return Oil

Specifications:

Input Voltage: AC 110V 60Hz

Flow Rate: 0.6L/Min(＞7Mpa) - 5L/Min(＜7Mpa)

Working Pressure: 290Psi - 10152Psi(2Mpa - 70Mpa)

Oil Capacity: 7L

Motor Power: 750W

Motor Speed: 1400r/Min

Operation Instruction

1. Open The Filler Before Use, The Electric Pump And Power Connections Before Oiling, Then Press Down The Black Button Which Next To The Motor To Open, Press The Manual Operation Switch (Up), After a Few Air Pressure, Press The Manual Operation Switch (Down), Turn Off The Motor, Connected To Tubing. (The Pressure Should Not Exceed 63Mpa When Air Pressure, In Order To Avoid Damage)

2. Open The Motor After The Pump Connect With The Equipment, And Placed The Operation Valve In Pressurized Position After The Motor Rotates 1-2 Minutes, This Moment The Hydraulic Oil Come Into The Cylinder To Perform The Work, And The Output Of The Hydraulic Oil Will Increases With The Load On Their Own Booster Until 63Mpa.

3. The Oil Pump Regular Working Temperature Between 10℃~50℃,When Find The Oil Temperature≥70 ℃ Should Stop Using After Continuous Working Under High Pressure, Let It Self-Cooling Before Use.

4. The Pressure Of The Relief Valve And Safety Valve Have Been Set Before The Pump Leave The Factory, The User Can Not Arbitrarily Increase The Pressure,Could Only Reduce It According To The Actual Working Pressure, That Can Improve The Life Of The Pump Station.

5. The Motor Must Have Reliable Grounding.

Package Included:

1 X Electric Driven Hydraulic Pump

1 X Oil Hose(1.8M)

1 X Quick Connector

ProductSiteLaunchDate : 2023-07-11T09:11:35.779Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 40151500
Voltage : 110 volts
