Specification
AutomotiveFitType : vehicle_specific_fit
Brand : INPAITOO
BulletPoint1 : LARGE LOADING TONNAGE: The high hardness material of this jack enables it to load a tonnage of 10T/22.46.22 lbs, which is enough to lift many items, its interface part is ZG3/8 threaded connector with steel ball inside to prevent back leakage of oil. The handle of the pump has a convex pattern design, which provides a good anti-slip effect. It can be held more firmly and provide better strength when used.
BulletPoint2 : STRONG AND DURABLE: This jack and pump are made of high hardness quality steel with plastic spraying surface treatment. This makes the item not easy to rust, very durable and long service life. Vertical, horizontal or inverted placement orientation can be selected according to space requirements. All these angles generate lift.
BulletPoint3 : ENGINEERING DESIGN: The handle of the pump of this hydraulic cylinder jack is a very ergonomic design. Even after long time use, it will not feel fatigue and give you great comfort. There are support feet on both sides of the pump for more stable placement. It will not shake randomly when you use it.
BulletPoint4 : HIGH SAFETY: The anti-slip ring on the main shaft of this hydraulic cylinder jack ensures more stable placement. The stop ring prevents the jack from breaking and being damaged when a load is applied. All this provides a high degree of safety when in use.There is a knob on the pump head to control the jack. Set to OFF to lift the jack. When set to ON, the jack will restart. This knob allows for easier and safer operation.
BulletPoint5 : APPLICATIONS: This hydraulic cylinder jack is commonly used in power, chemical, steel, bridge and other industries. Suitable for railroad car maintenance, machinery installation, construction project support, etc.
Color : Black
CompatibleWithVehicleType : Car
ExternallyAssignedProductIdentifier : 6967780605488

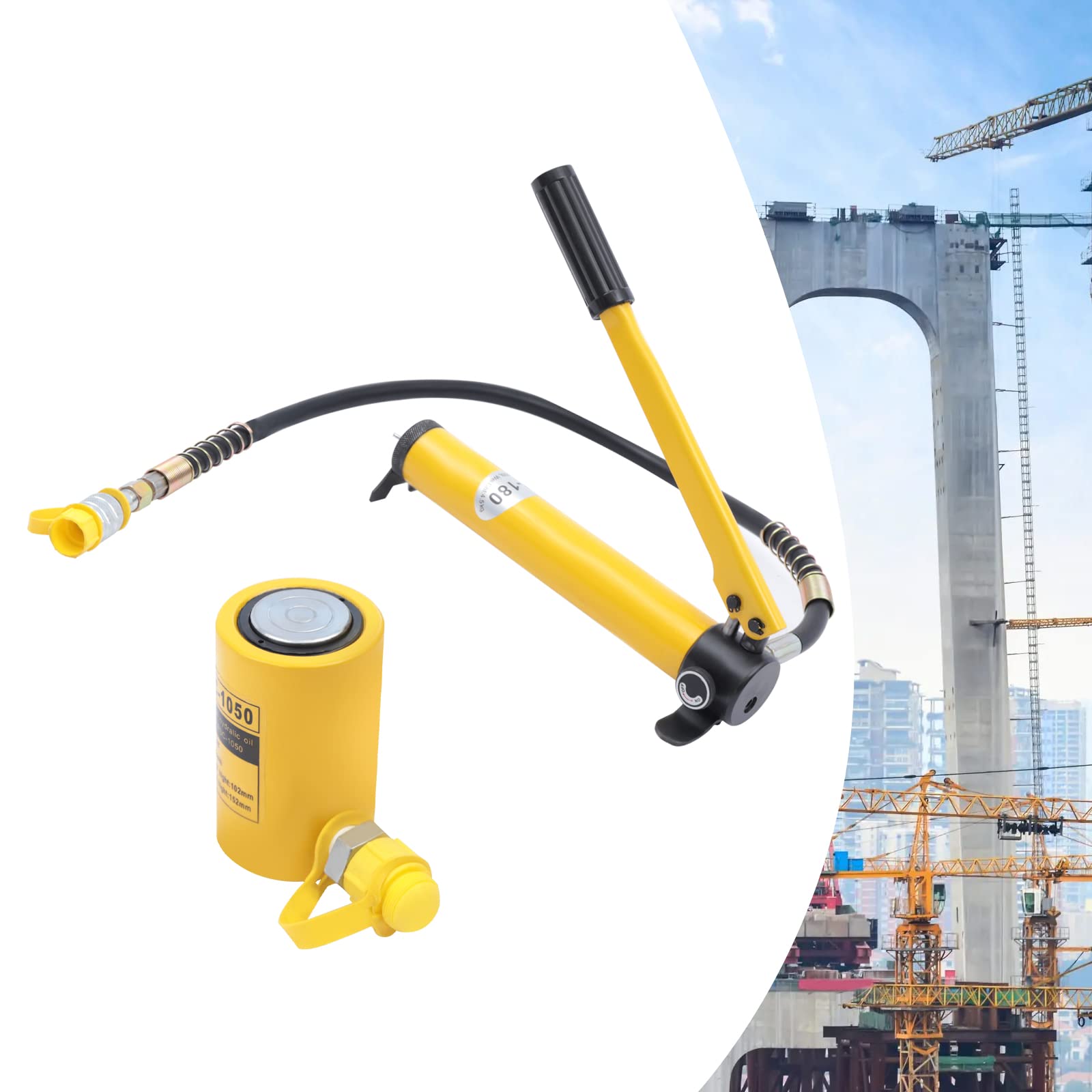

IncludedComponents : 10T Mini Hydraulic Cylinder Jack
ItemName : INPAITOO 10T Mini Hydraulic Cylinder Jack, Low Profile Hydraulic Ram Jack, Portable Manual Hydraulic Hand Pump, Power Ram Lifting Cylinder Low Profile Tool for Machinery Shipbuilding
ItemPackageDimensions_Height : 1.18 inches
ItemPackageDimensions_Length : 3.15 inches
ItemPackageDimensions_Width : 3.15 inches
ItemPackageQuantity : 1
ItemTypeKeyword : pump-jacks
LoadCapacity : 70 MPa
Manufacturer : INPAITOO
Material : iron,plastic
ModelName : 10T Mini Hydraulic Cylinder Jack
ModelNumber : 10T Mini Hydraulic Cylinder Jack
NumberOfItems : 1
PackageLevel : unit
PartNumber : 10T Mini Hydraulic Cylinder Jack
ProductDescription :

Specifications

Color: Yellow + Black

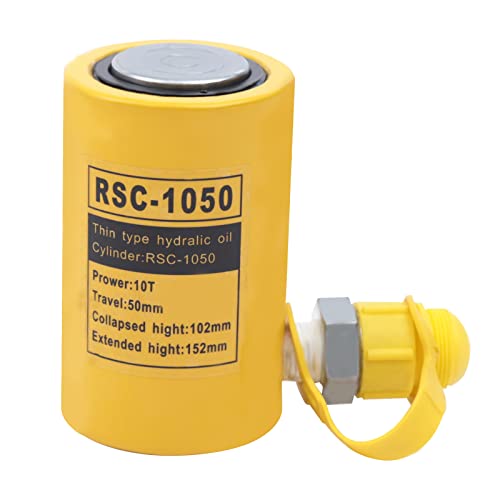

Jack Model: RSC-1050

Pump Model: CP-180

Product Material: Steel

Oil Pipe Material: Rubber

Surface Treatment: Spraying

Spindle Surface Treatment: Chrome Plated

Jack Load Tonnage: 10T/22.46.22 lbs

Jack Stroke: 5cm/1.97"

Jack Body Height: 10.2cm/4.02"

Jack Extended Height: 15.2cm/5.98"

Jack Size: 14*7.5*10cm/5.6*3*4"

Jack Oil Storage Capacity: 72cc

Jack Weight: 2.5kg/5.51 lbs

Pump Max Pressure: 70 MPa

Pump Weight: 3kg/6.61 lbs

Gross Weight: 6.5kg/14.33 lbs

Package Size: 38.5*22.5*17cm/15.16*8.86*6.7"



How to Use

1. Open the interface cover of the jack to connect with the pump's oil pipe interface and tighten the screw.

2. Turn the knob of the pump to OFF.

3. Place the jack under the object to be lifted and press the pump handle up and down to start working.

4. After the object is lifted, turn the knob to ON, and the jack will restart.



Package Included

1* Hydraulic Jack

1* Pump

1* Oil Pipe



Notes

1. Please use this item on hard and flat ground.

2. Please do not exceed the load capacity of the jack.

3. Please stop immediately when you see the stop line.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

RequiredProductComplianceCertificate : 1
Size : 4.10X1.60X1.60CM
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 24101600
WarrantyDescription : No Warranty
