Specification
AutomotiveFitType : universal_fit
Brand : Ghankopd
BulletPoint1 : 【20 TON JACK PUMP PARAMETERS】Output: 20ton; Stroke: 2”;Collapsed Height: 105mm/4.13in; Extended Height: 155mm/6.1in; Weight: 15.43lbs. CP-180 pump: Maximum Output Pressure:700/10000KG/CM2 ; Output Pressure: High Pressure 60KG/CM2 ; Interface Size: 3/8” .
BulletPoint2 : 【2 INCH STROKE】-The spindle of this jack is smooth and the jack can be jacked up quickly without blockage. The built-in sealing ring can protect the spindle when the stroke is maximum. With it, you can lift heavy objects more easily, reducing the risk of manual labor, improving the safety of use, and enhancing efficiency.
BulletPoint3 : 【SIMPLE OPERATION】You can tighten the return switch on the hydraulic pump clockwise, loosen the bleed nut, press the handle, and the jack automatically jacks up. After loosening the return switch, the jack automatically retracts. In addition, the direction of the use of the jack is not restricted and can be used horizontally, or upside down.
BulletPoint4 : 【STRONG AND DURABLE】It is made of high-class steel with a plastic spraying treatment, making it impact-re-si-sta-nt, wear-re-sist-a-nt, and not easy to d-efo-rm, ensuring a long service life.
BulletPoint5 : 【STRONG AND DURABLE&STRONG LIFTING FORCE】It is made of high-class steel with a plastic spraying treatment, making it impact-re-sis-ta-nt, wear-re-sis-ta-nt, and not easy to def-or-m, ensuring a long service life.The mechanism boasts a lifting capacity of 6,6139 lbs, which enables it to lift heavy objects of large weight with ease. The impressive lifting force renders it a versatile and efficient option for fulfilling various lifting requirements.
Color : Green
CompatibleWithVehicleType : /
ExternallyAssignedProductIdentifier : 7693685931177
ExternallyAssignedProductIdentifier1 : 0769092522783
ExternallyAssignedProductIdentifier2 : 769092522783
IncludedComponents1 : 1* Hydraulic Cylinder Jack
IncludedComponents2 : 1* Hand Pump
IsAssemblyRequired : 1

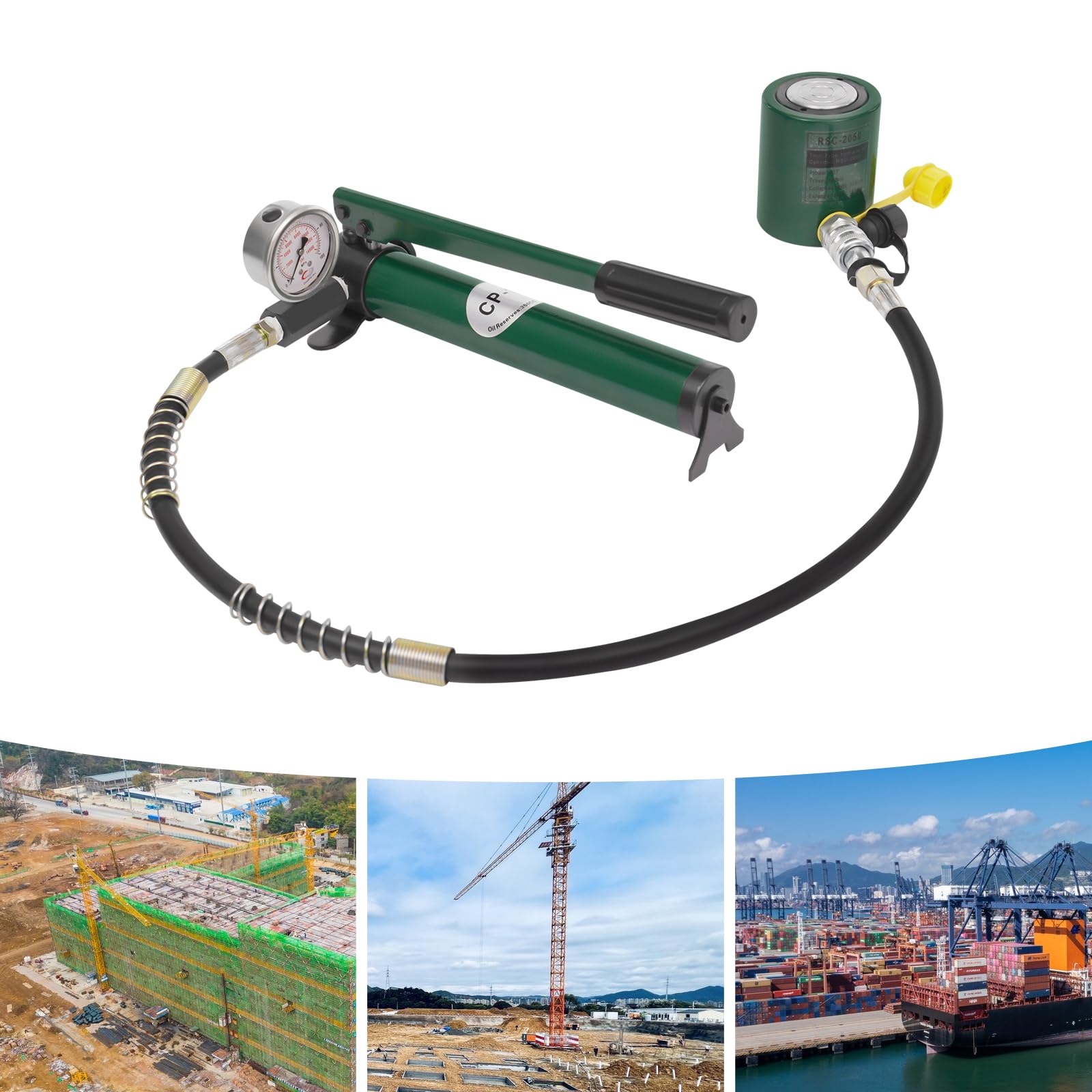

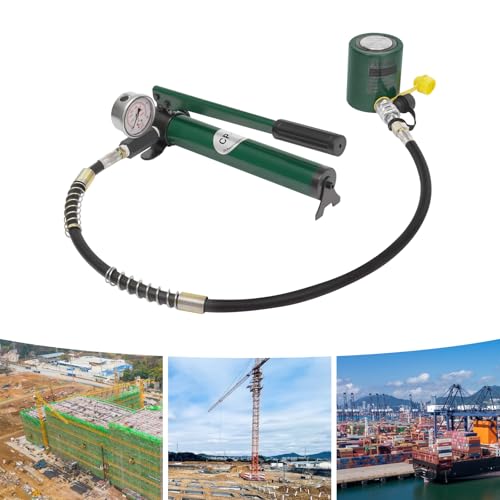

ItemName : Hydraulic Ram Jack Manual Hydraulic Hand Pump 2” Short Stroke Hydraulic Cylinder Jack for Lifting Machinery Shipbuilding (RSC-2050, 20T, CP-180)
ItemPackageDimensions_Height : 7.48 inches
ItemPackageDimensions_Length : 25.79 inches
ItemPackageDimensions_Width : 7.87 inches
ItemPackageQuantity : 1
ItemTypeKeyword : pump-jacks
LegalComplianceCertifications : RSDOS.0384EM-003
LoadCapacity : 20 ton
Manufacturer : KevenderUS
Material : Alloy Steel
MinimumHeight : 4.13 inches
ModelName : Hydraulic Cylinder Jack
ModelNumber : RSC-2050
NumberOfItems : 1
PartNumber : CP-180
ProductDescription :

Description

This hydraulic jack+hand pump allows you to lift heavy objects with ease. Its excellent performance is complemented by convenient operation, which not only greatly improves work efficiency, but also demonstrates the charm of the ideal combination of mechanical aesthetics and practical functions. It is an indispensable and ideal assistant in factories, construction sites, warehouses, docks, railroad or ship construction, and other places.

Details

D-u-stp-ro-ofCover:The connector is designed with a du-s-tproofcover, which can prevent d-u-st from entering.

Clear Gauge: It makes it easier for you to observe changes in pressure and make timely adjustments.

Smooth Surface: The hydraulic cylinder features a smooth surface with circle textures, providing reliable support during working.

Ergonomic Handle: The handle on the hydraulic pump makes it comfortable to hold and is non-slip.

Application

It can be used for the installation and maintenance of large and medium-sized mechanical equipment in construction sites, petroleum, electric power, metallurgy, chemical industry, ships, bridges, steel, and other industries. It can be used with punching machines, cutting machines, bending machines, cable cutter hydraulic pliers, and other machines.

Specification

Cylinder Model: RSC-2050

Hand Pump Model: CP-180

Color: Green

Shape: Cylinder

Material: Steel

Process: Plastic Spraying

Interface Size: 3/8''

Maximum Output Pressure:700/10000KG/CM2

Output Pressure: High Pressure 60KG/CM2

Length of Oil Pipe: 1m/3.28ft

Total Tonnage: 20T/44092lbs

Stroke: 50mm/2in

Travel: 50min

Collapsed Height: 105mm/4.13in

Extended Height: 155mm/6.1in

Cylinder JackSize(D*H): 9*10.6cm/3.54*4.17inch

Hand Pump Size: 34*10*14cm/13.39*3.94*5.51inch

Package Size: 37.5*22.5*16.5cm/14.76*8.86*6.5inch

Gross Weight: 7kg/15.43lbs

Net Weight: 6kg/13.23lbs

Package Included

1* Hydraulic Cylinder Jack

1* Hand Pump

Notes

1.Please use the product on a flat surface, not on soft or rough ground, and do not apply unilateral force to the spindle.

2.If there is a slight oil leak at the interface, you can wrap it with a raw material belt (not included).

3.There is hydraulic oil in the hydraulic pump. After a long time of use, you need to refuel yourself, it is recommended to use No.15 hydraulic oil (not included).

4.Before use, the interface between the jack and the pump should be installed firmly, otherwise it will leak oil. A slight oil leak at the interface is normal.

5.The first time you use it, you need to press the hydraulic pump a few more times to remove the air inside the jack.

6.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

ProductSiteLaunchDate : 2024-11-21T08:13:09.558Z
RegulatoryComplianceCertification : RSDOS.0384EM-003
RequiredProductComplianceCertificate : California Air Review Board (CARB)
Size : FPY-201
Style : 20T
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 24101600
WarrantyDescription : /
