Specification
Brand : RocoReny
BulletPoint1 : High Durability: This cylinder liner puller is made of #45 steel which has good corrosion and wear resistance, so it is more durable and can be used for a long time.Package Included:1* Cylinder Puller,Other Accessories for Use.
BulletPoint2 : Ergonomically Designed: Compared with the traditional one, this cylinder liner puller is ergonomically designed with a press rod, which is more labor-saving and facilitates your use during operation.
BulletPoint3 : High Efficiency: This cylinder liner puller is suitable for any model with the inner diameter of the cylinder liner between 80-135mm. Meanwhile, both dry and wet types can be used.It has a maximum pulling force of 15T, even the ultra-thin wall can also be easily pulled out.
BulletPoint4 : Adjustable Cylinder Diameter: There is a screw at the bottom of the cylinder liner puller used to adjust the cylinder diameter, so you can adjust it according to your own needs.
BulletPoint5 : Application:It is used for the disassembly of the internal combustion engine and cylinder liner. It is suitable for any model with the inner diameter of the cylinder liner between 80-135mm.
Color : Black
ExternallyAssignedProductIdentifier : 5489228775351
ExternallyAssignedProductIdentifier1 : 0757582752680
ExternallyAssignedProductIdentifier2 : 757582752680
FitType : Vehicle Specific
IncludedComponents : 1* Cylinder Puller

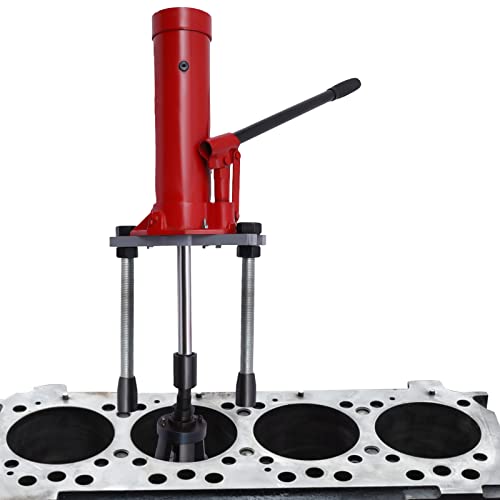

ItemName : RocoReny 15T Cylinder Puller, #45 Steel Hydraulic Cylinder Liner Puller,Diameter 80-135mm Universal Hydraulic Cylinder Puller, Universal Cylinder Liner Puller Tool Set for Hubs Auto Repair
ItemPackageDimensions_Height : 2 inches
ItemPackageDimensions_Length : 4 inches
ItemPackageDimensions_Width : 4 inches
ItemPackageQuantity : 1
ItemTypeKeyword : automotive-puller-sets
Manufacturer : RocoReny
Material : #45 Steel
ModelName : 15T Cylinder Puller
ModelNumber : 15T Cylinder Puller
NumberOfItems : 1
PartNumber : #45
ProductDescription :

Details

#45 Steel Material: This cylinder liner puller is made of #45 steel which has good corrosion and wear resistance , so it is more durable and can be used for a long time.



Adjustable Cylinder Diameter: There is a screw at the bottom of the cylinder liner puller used to adjust the cylinder diameter, so you can adjust it according to your own needs.



Application

It is used for the disassembly of the internal combustion engine and cylinder liner. It is suitable for any model with the inner diameter of the cylinder liner between 80-135mm.



How to Use

1. According to the model you need to disassemble, choose the pull plate and connecting rod (the connecting rod is divided into two lengths).
2. Connect the connecting rod with the cylinder lifter, the steering knuckle and the pull plate.
3. Twist the steering knuckle of the cylinder puller to a right angle with the connecting rod. The straight side of the pull plate is parallel to the connecting rod and passes through the cylinder liner so that the small diameter of the pull plate is locked into the inner diameter of the cylinder liner.

4. Sleeve the two support tubes onto the diagonal cylinder head screws.

5. Pass the beam of the cylinder puller into the slideway of the lifting gear, and put both ends of the beam into the groove of the support tube.

6. Screw the hydraulic assembly into the lifting gear (pay attention to the center hole on the beam) and tighten it.
7. Check whether the pull plate, beam and support tube are accurately positioned.
8. Transport the small plug of the hydraulic assembly with a pressure rod, and the cylinder sleeve can be pulled out smoothly.



Specification

Max. Pulling Force: 15T

Material: #45 Steel

Maximum Stroke (Piston Push Rod): 5cm/1.97in

Weight: 18kg/39.68lbs



Package Included

1* Cylinder Puller

Other Accessories for Use
