Specification
AgeRangeDescription : adult
Brand : DWFSKZKV
BulletPoint : GM50C GM50CR Engine Digital Display Multifunction Meter CAN RS485 Port Remote Monitoring Multi-function Panel Genset Part

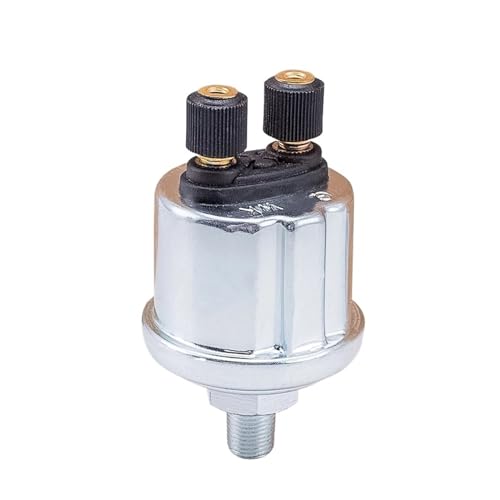

Color : Oil Pressure Sensor
ExternallyAssignedProductIdentifier : 9435679519927
ItemName : DWFSKZKV GM50C GM50CR Engine Digital Display Multifunction Meter CAN RS485 Port Remote Monitoring Multi-Function Panel Genset Part (Color : Oil Pressure Sensor)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : process-controllers
Manufacturer : DWFSKZKV
Material : Copper
ModelName : DWFSKZKV
ModelNumber : DWFSKZKV
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DWFSKZKV

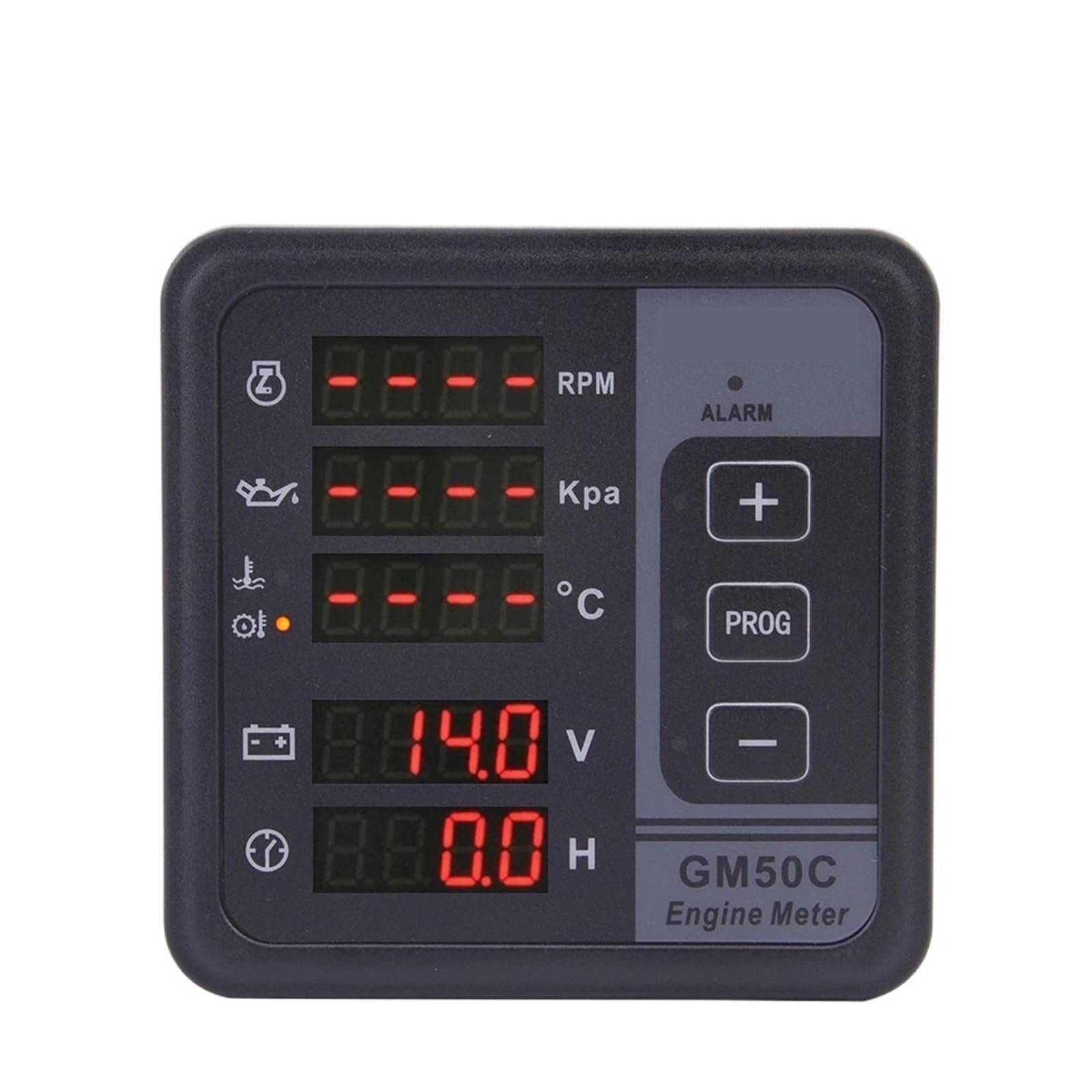

ProductDescription : GM50C series configuration and instructions Ver1.5
Brief Introduction:
There are 2 Models under GM50C series.
GM50C:Engine parameters gathered through Can Port and inside J1939 protocol, Display ECU alarm code,Protection Alarm, Engine speed control function,value set by front face buttons.
GM50CR:Based on GM50C functions, RS485 port is added, parameters can be monitored and set directly through PC, besides, the remote vice meter can monitor the main meters.
Parameters Settings
Press "PROG" for 4 sec, loose it when "P-00"displayed, which means
system comes into setting page and display the first option. Press "+"or"-"to choose the options and press "PROG" to set.
Press "+"or"-"again to set the right value. Then press "PROG" to revert back to last layer and press "PROG" again for more than 4 sec to save the value .
Notes: it is valid for the changed value once adjusted.
Features:
With multiple protection functions
Highlight digital tube: display the measured value
Can display ECU loss alarm fault code
Panel keys to set and modify system parameters with data remote monitoring function
The engine speed can be controlled by the buttons on the panel
Parameter display:
Engine speed;
Engine oil pressure;
Engine oil temperature;
Engine cooling water temperature;
Battery voltage;
Cumulative working time
Protective function:
Overspeed protection;
Low oil pressure protection;
High oil temperature protection;
High water temperature protection;
Low battery voltage alarm;
ECU alarms.
Specification :
1. DC Supply: 8-36 V continuous;
2. Consumption Power: MAX 1.5 W;
3. Battery Voltage Accuracy: deviation±1%;
4. Accumulation Time :0-999999Hours;
5. Min Time Record :0.1Hours;
6.Alarm Output: Neg-output, Max DC1A;
7.Operation Temperature:-30-65;
8.
ProductSiteLaunchDate : 2024-05-04T03:45:04.779Z
Size : One Size
Style : Digital Display
UnitCount : 1
UnspscCode : 52140000
