Specification
AgeRangeDescription : adult
Brand : DWFSKZKV
Color : One Color
ExternallyAssignedProductIdentifier : 7310401352343

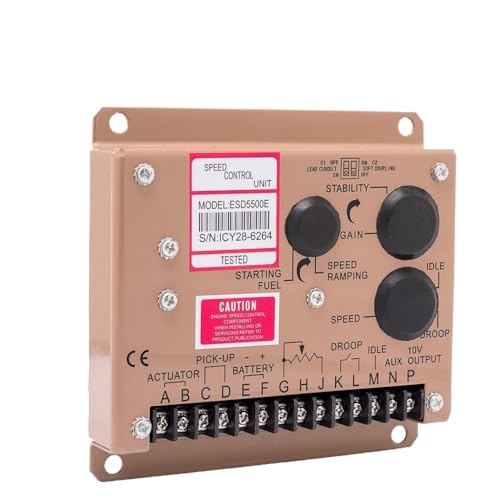

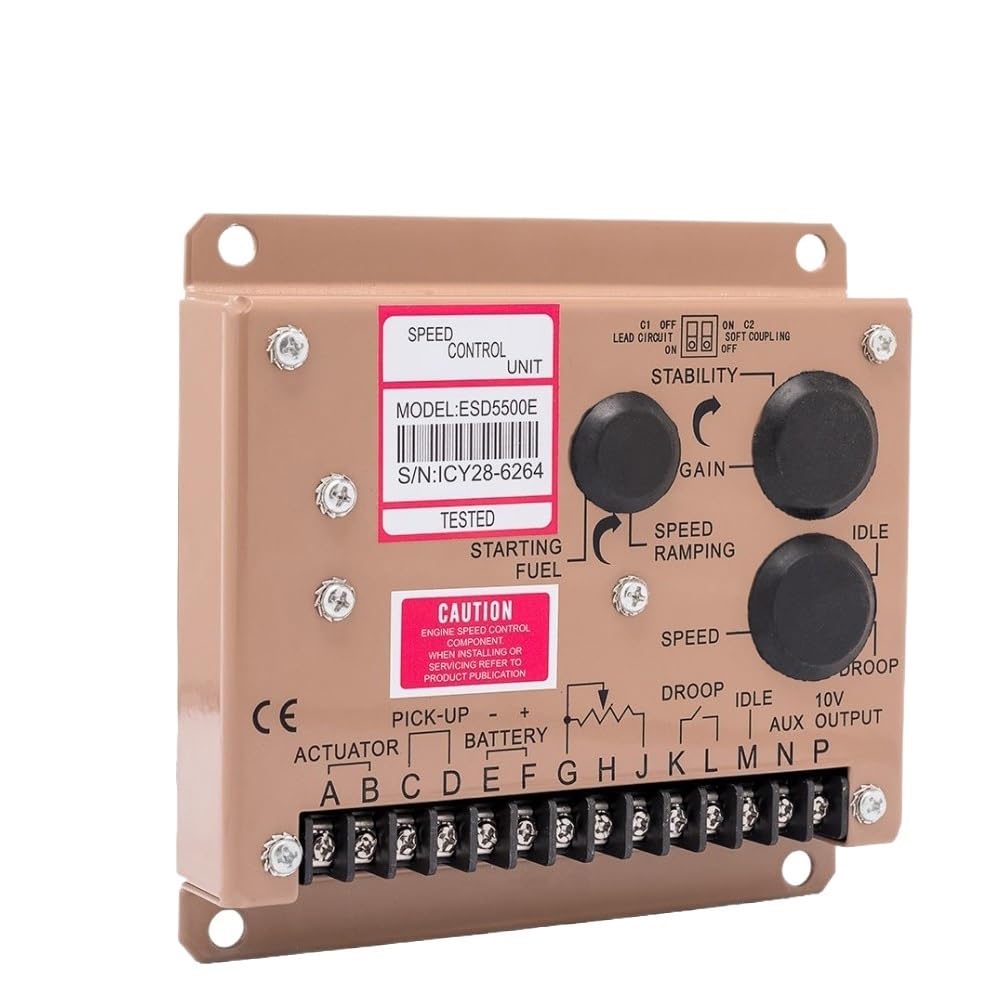

ItemName : DWFSKZKV Actuator ADC120 Diesel Generator Governor 1 Set ADC120 Actuator 3034572 Pickup Sensor ESD5500E Speed Controller(24V)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : process-controllers
Manufacturer : DWFSKZKV
Material : Copper
ModelName : DWFSKZKV
ModelNumber : DWFSKZKV
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DWFSKZKV
ProductDescription : Actuator ADC120 12v/24v optional, good universal performance, longevity and stability.
1set=1pcs ADC120-12v (or ADC120-24V)+1pcsESD5500E+1pcs 3034572 sensor
PERFORMANCE:
Available Max1.0Lb-ft(1.4Nm), Maximum Operating Shaft Angular Travel 25± 1degree CW/CCW
POWER INPUT: Operating voltage 12VDC , Normal Operating Current 2A at 12VDC 1A at 24VDC
Maximum Current Rated 6A at 12VDC 3A at 24VDC
ENVIROMENTAL:
Temperature Range -54 to 95. Relative Humidity up to .All Surface finishes Fungus proof and corrosion .
PHISICAL:
Weight 2.3 kg. Mounting Any position, electrical connector at the top preferred.
RELIABILITY:
Vibration up to 20G @50-500 Hz.Testing Tested. MATING HARDWARE. Connector Supplied With Actuator.
Lever LE1500-2 . Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)BR101(Left Hand)
Wiring Harness ADC120 4ft. Harness supplied with actuator, other length available from Actuator.
ProductSiteLaunchDate : 2024-06-11T09:31:54.460Z
Size : 24V
UnitCount : 1
UnspscCode : 52140000
