Specification
Brand : YJYGR
BulletPoint1 : 4 channel relay, each channel independently triggered independent delay, do not interfere with each other
BulletPoint2 : Input optical isolation
BulletPoint3 : 6 kinds of functional modules, each functional module has three sub-modes (no cycle, Maximum 99 cycle, always cycle)
BulletPoint4 : Power anti-reverse diode
BulletPoint5 : High Q value SMD electrolytic capacitors
CompatibleDevices : 3D Printer
ConnectorType : Screw
CurrentRating : 10 amps
ExternallyAssignedProductIdentifier : 8698488013784
ItemName : YJYGR Delay Time Module, 3 Modes Functional Timer Relay DC 6.5-25V DC 5V Operating Voltage 4 Channel Multifunction Time Relay Switch Module
ItemPackageQuantity : 1
ItemTypeKeyword : printer-memory
Manufacturer : YJYGR
Material : Nylon
MaximumRotationalSpeed : 3500 rpm
MaximumSwitchingCurrent : 10 amps
MaximumSwitchingVoltage : 25 volts
MeasurementSystem : Metric
MinimumFrequency : 50 hertz
NoiseLevel : 28 decibels
NumberOfItems : 1
NumberOfPoles : 4
OperationMode : Automatic
PartNumber : 438880332
PowerConnectorType : 2-Pin
PowerSourceType : Corded Electric
ProductDescription : Specifications:

Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V

Operating Current(DC 12V): Standby current (all relays closed) 16MA, 1 relay open 50MA, 2 relays open 82MA, 3 relays open 115MA, 4 relays open 150MA

Functional mode: each functional mode has 3 modes (not circulating, 2-99 cycles, forever circulating)

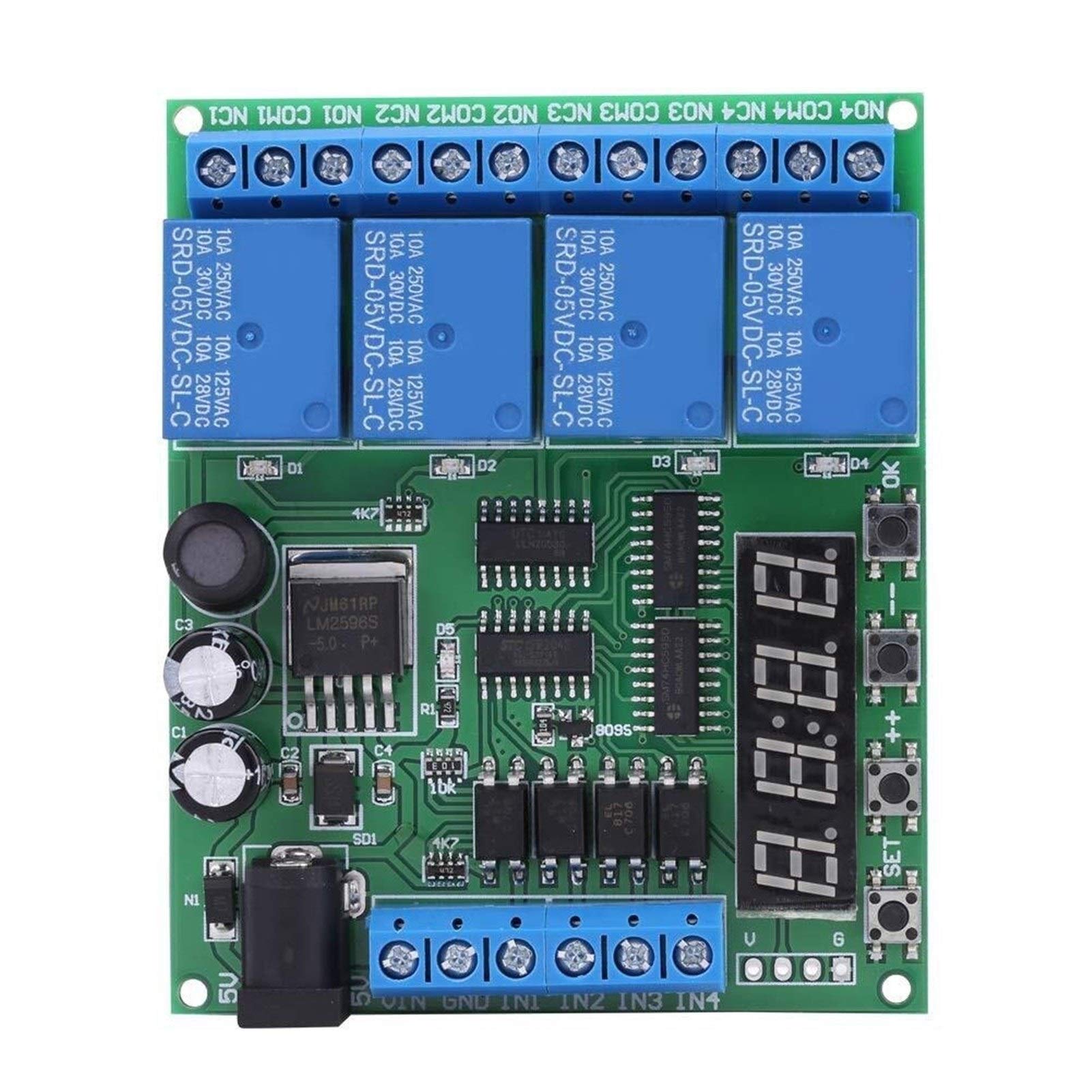

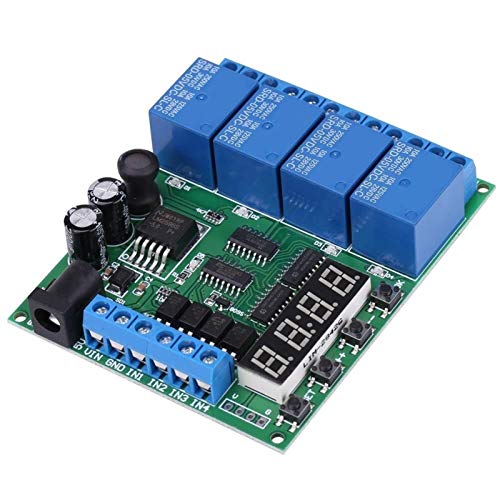

Size: as the picture

Weight:75g

Noun resolved:

NO :Relay normally open contact

COM : Relay common contact

NC :Relay normally closed contact

Relay open: COM connect NO.

Relay close: COM disconnect NO.

Function Mode:

The following Function Modes can be set to cycle mode operation.You can set Number of cycles (Nx 1 ~ 99 times, 00 is always cycle, the default is 01 not cycle).

F0:After power-up, the relay close. Trigger input (IN1/2/3/4), relay open. T1 time delay close.

F1: After power-up, the relay open. Trigger input , relay close. T1 time delay open.

F2: After power-up, the relay close. Trigger input , delay time T1 and relay open. T2 time delay relay close.

F3: After power-up, the relay open.Trigger input , delay time T1 and relay close. T2 time delay relay open.

F4: After power-up, the relay close. After the delay time T1 and relay open. T2 time delay relay close.

F5: After power-up, the relay open. After the delay time T1 and relay close. T2 time delay relay open.
ProductSiteLaunchDate : 2021-09-09T03:51:19.295Z
Style : Knobs
UnitCount : 1
UnspscCode : 39122300
Voltage : 12 volts
