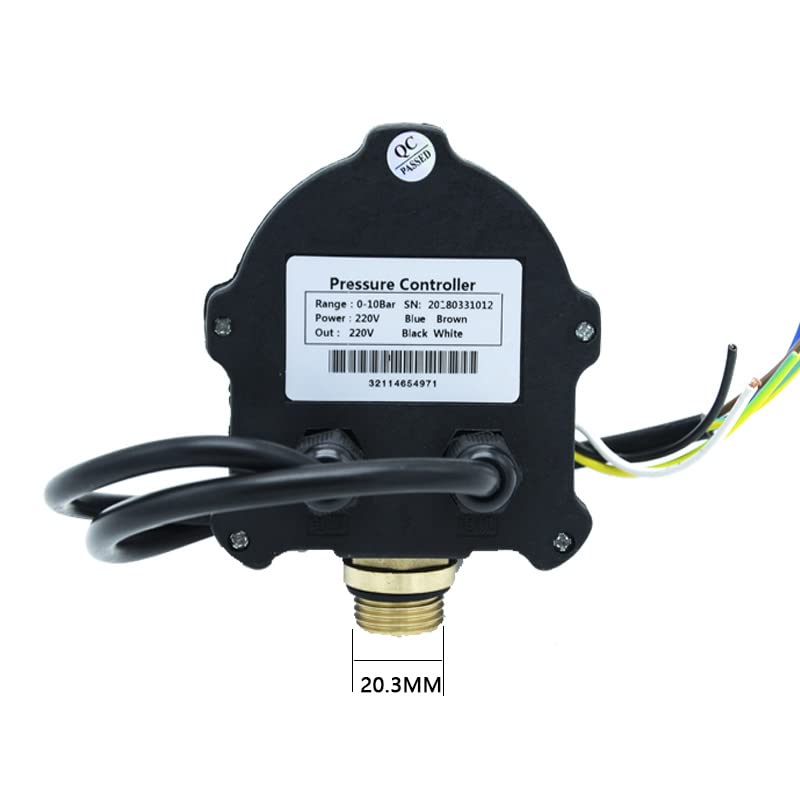

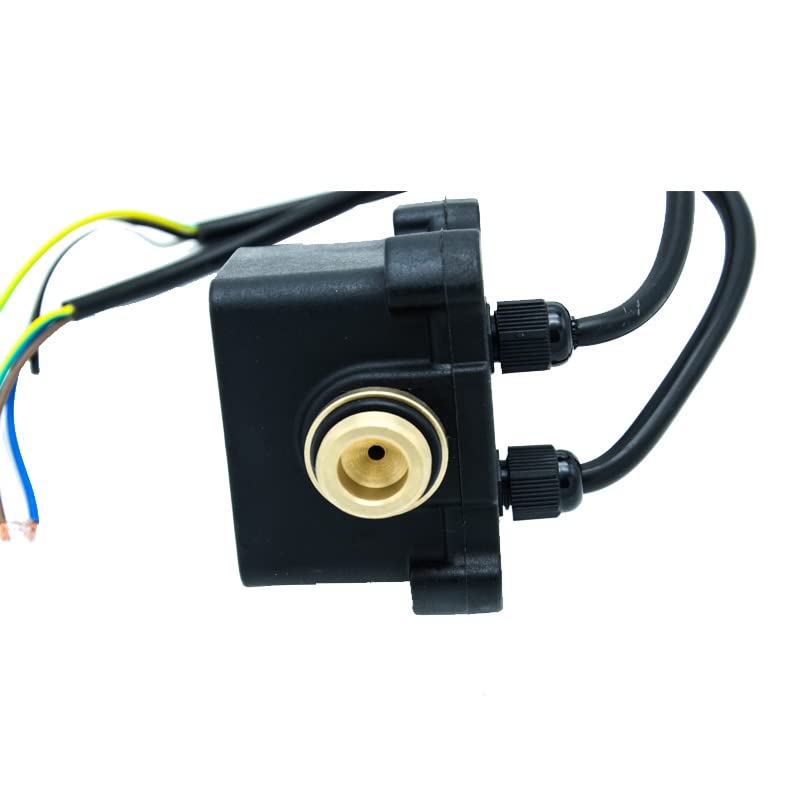

Item Description:
can be started directly
Product Feature:
environment-friendly:silent
Safe: IP65water-proof casewater-shortage protection
Intelligent: Preventing the pump automatically restart frequently
Reliable: Electronic long-life for using more than 200000 times operationanti-vibration
Widely application:Pipeline PumpBooster PumpSelf-priming pumpImmersible PumpCirculating Pump ect.widely using for solar heat pumpair-source heat pumpWILO home booster pumpGrundfos water circulating pump and other relevant pumps.
Description of Using:
Water Supply from Upstairs to Downstairs
Pressure relief valve
The position of device
Height
the lowest outlet of water
The Upper Value=The Max. Pressure of Pump -0.5KG
The lower value=0.5KG
Water shortage protection value=0.2KG
Water Supply from Downstairs to Upstairs:
the highest outlet of water
The Upper Value=The Max. Pressure of Pump -0.5KG
The lower value=H*0.1KG+0.5KG
Water shortage protection value ≤H*0.1KG
Immersible pump automatic control
The position of device
Height
the highest outlet of water
the surface location of water
The Upper Value=(The Max. Pressure of Pump-H )*0.1KG-0.5KG
The lower value=H1*0.1KG+0.5KG
Water shortage protection value ≤H1*0.1KG
REAR THE CODE
CODE
HOW TO USE
H2.9
Upper valuestop 2.9KG
You can set it as instruction
L1.5
Lower Valuestop 1.5KG
You can set it as instruction
F0.2
Water shortage protection 0.2KG
You can set it as instruction
E-F
Water shortage protection
Press ON/OFF to restart or waiting for restart automatically
E-H
Errorover the pressure range o
ProductSiteLaunchDate : 2022-05-27T08:34:39.126Z
SpecificationMet1 : RoHS
SpecificationMet2 : CCC
SpecificationMet3 : CE
SwitchType1 : Pressure Switch
SwitchType2 : Temperature Switch
TerminalType : Spdt
UnitCount : 1
UnspscCode : 39120000
