Specification
Brand : CALT
BulletPoint : Excellent Quality & Metal Pump Connector: This product features an IP65 waterproofing, TÜV and CE certifications, while the 304 stainless steel connector is designed for converting BSPP to NPT (Internal Thread: 1-inch BSPP, External Thread: 1-inch NPT)
BulletPoint1 : S type load cell, measuring range 1Ton, tension and compression force measurement, Good stability, with low temperature drift.
BulletPoint2 : Alloy steel material, have good mechanical property. Strong resistance to mechanical fatigue, Good corrosion resistance, Waterproof IP67.
BulletPoint3 : Good cable 5mm outer 3.5m Length, Stable signal transmission and strong anti-interference. With waterproof joint and Spring cushion protection to prevent the wire from pulling and breaking.
BulletPoint4 : C2 accuracy class, 0.03%FS Combined error, 2±0.05mv/v rated output.
BulletPoint5 : Widely used in Belt scale, hopper scale, universal material testing machine and various engineering force measuring systems. Easy to installation and operation
CircuitType : 2-way
Color : Spoke
ConnectivityProtocol : X-10
ConnectorType : Screw
ExternallyAssignedProductIdentifier : 8846977567311
ExternallyAssignedProductIdentifier1 : 0754191189692
ExternallyAssignedProductIdentifier2 : 754191189692
IncludedComponents : sensor
InternationalProtectionRating : IP20

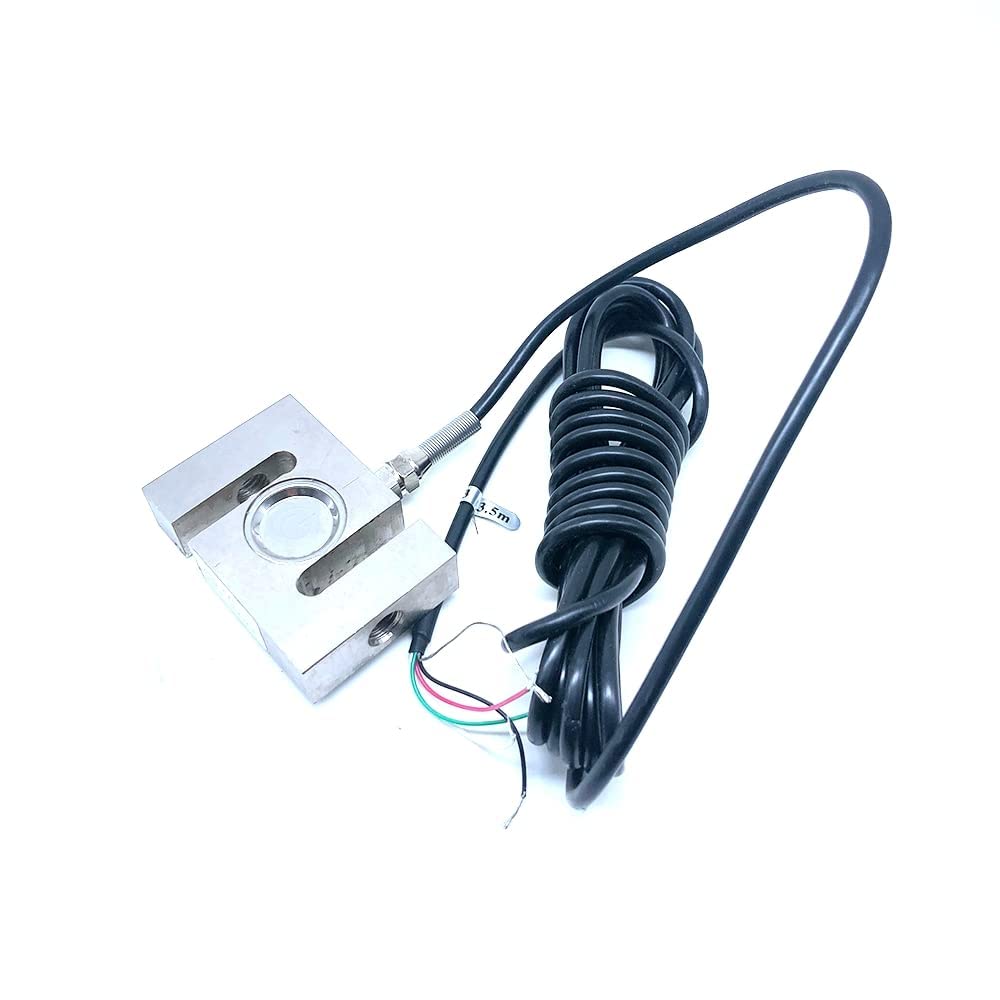

ItemName : YZC-516C S Type Load Cell Tension and Compression Weight batching Scale Force Sensor (1 ton, YZC-516C)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 6 centimeters
ItemPackageDimensions_Width : 4 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-pressure-sensors
Manufacturer : CALT
Material : copper
ModelName : PINEAOOKERICEr05b7h2w4n
ModelNumber : GOTOTOPc1sxdktqh0638
NumberOfBoxes : 1
NumberOfItems : 1
OperationMode : Off
PartNumber : YZC-516C
PowerSourceType : Corded Electric
ProductDescription : Characteristics & Usage: The sensor elastic body with shear or curved cantilever beam structure, one end fixed, a section of force, low profile, high structural strength, can be used for a variety of tensile force and pressure load and measurement. It is dust seal, wide range, high precision, stable and reliable performance, easy installation and so on. Applicable to electronic weighing, weighing and other power measurement, weighing the industrial automation measurement and control system. Technical Parameter： Sensitivity: 2.0±0.05 mV/V Accuracy class:C2 Combined Error: ≤±0.03%F.S Maximum number of verification intervals: 2000 Creep: ≤±0.02%F.S/3min Temperature coefficient of sensitivity: ≤±0.005%F.S/℃ Operating temperature range:-20℃～+80℃ Input resistance: 350±20Ω Output Resistance: 350±5Ω Safe Overload: ≤150% F.S Insulation resistance: ≥5000MΩ(50VDC) Excitation voltage: 5V-12V Protection grade: IP67 Connecting cable: Ф5.0*3.5m Connection: Red (input+), Black(input-), Green(Output+), White(Output-)
ProductSiteLaunchDate : 2022-09-24T02:10:55.449Z
Size : 1 ton
SpecificationMet : nema
StreetDate : 2017-05-15T00:00:01Z
Style : YZC-516C
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
SwitchType : Pressure Switch
UnitCount : 1
UnspscCode : 41113700
Voltage : 1 volts
