Specification
Brand : Midzooparts

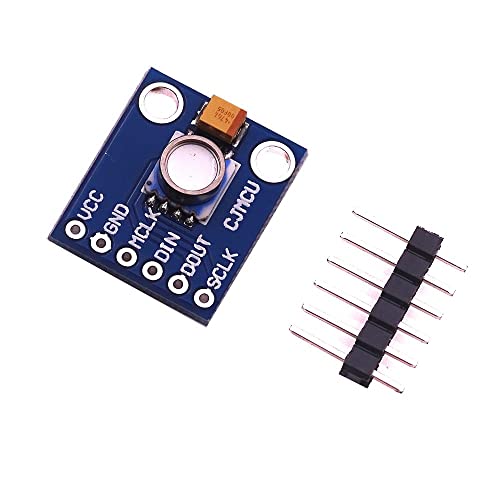

BulletPoint : MS5540-CM MS5540C MS5540CM MS5540 Digital Pressure Sensor Waterproof And Accurate Height Module
ExternallyAssignedProductIdentifier : 4653017436872
ItemName : MS5540-CM MS5540C MS5540CM MS5540 Digital Pressure Sensor Waterproof and Accurate Height Module
ItemTypeKeyword : electronic-pressure-sensors
Manufacturer : Midzooparts
Material : silicon
PartNumber : XHLModulepart_11010
ProductDescription : Digital Air Pressure Sensor MS5540-CM Waterproof High Precision Height Module
Notes:
Do not touch the white part of the sensor, it will be bad.
MS5540C (RoHS) Micro Barometer Module*Absolute pressure range: 10 - 1100 mbar* Resolution 0.1 mbar and 0.01 °C* Chip storage 6 parameters for software compensation* Piezoresistive silicon microsensor* Integrated miniature pressure sensor 6.2x6.4 mm*16-bit ADC, SPI interface*3-wire serial interface*1 system clock (32.768 kHz)*Working voltage 2.2 V to 3.6 V*Working current < 5uA*RoHS compatible & Pb-free* Operating temperature: -40 ° C ~ +85 ° C* Waterproof, maximum water depth 100 meters (ISO2281)descriptionThe MS5540C is an SMD hybrid device that includes a high precision piezoresistive pressure sensor and an ADC interface IC. It is a miniature version of the MS5534C barometer/altimeter module and provides 16-bit pressure and temperature parameters with voltage. The MS5540C is a low voltage, low power device with an automatic power down switch. The 3-wire interface accommodates a variety of communications with the microprocessor. Improved pressure range (measured down to 10 mbar) compared to the MS5534A. Compared to MS5534B, MS5540B is upgraded from the previous 15-bit output to 16-bit digital output. Other improvements include ESD sensitivity, current consumption, and exchanger accuracy. The MS5540C software is compatible with MS5534A, MS5534B, MS5534C, and MS5540B. In addition to this, the MS5540C is compatible from its external dimension to the MS54xx series of pressure sensors. The sensor's adhesive protection is sufficient for waterproof watches with a water depth of 100 meters without any other protection.application:* Portable altimeter / barometer system * Weather control system * Wild adventure or multi-mode watch* Standby current < 0.1uA * GPS receiver
ProductSiteLaunchDate : 2021-12-23T17:50:55.273Z
UnspscCode : 39120000
