Specification
Brand : Fujifilm
BulletPoint : Transducers
BulletPoint1 : Characterize surface pressure between any two mating, touching, or impacting surfaces. The dimensions of this film are 10 in. x 12.2 in.
BulletPoint2 : Prescale provides a surface pressure “map” that illuminates actual pressure magnitude (in precise PSI or kg/cm^2) and distribution between your two surfaces. The pressure range of this film is 7.2 - 28 PSI (0.5 - 1.97 kg/cm²).
BulletPoint3 : Prescale reveals the contact surface pressure by virtue of a color change. This color change is instantaneous (less than a millisecond) and permanent
BulletPoint4 : Prescale comes on a roll, is super thin, and can easily be cut from the supplied roll with scissor or laser to your precise application requirement
BulletPoint5 : Included at no cost is the revised and updated Best Practices Guide to Handling and Applying Fujifilm Prescale . This booklet offers expert advice on storage, film preparation, use, and interpretation of results.
BulletPoint6 : All films guaranteed to have 18 months of shelf life available.
Color : M8
ExternallyAssignedProductIdentifier : 5202036998633
ExternallyAssignedProductIdentifier1 : 0198168681855
ExternallyAssignedProductIdentifier2 : 198168681855
FilmColorType : Colored
IncludedComponents : Pressure Indicating Film, Best Practices Guide

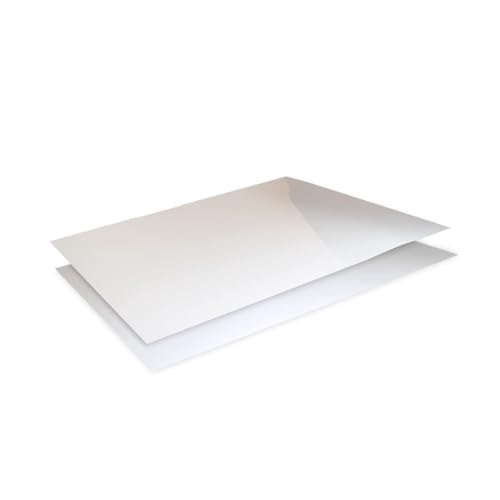

ItemName : Fujifilm Prescale Extreme Low (4LW) - Surface Pressure Mapping; Pressure Indicating Film; Tactile Sensor - Pressure Range 7.2-28 PSI; 10 in. x 12.2 in. Section - Best Practices Guide Included
ItemPackageDimensions_Height : 55.3974 centimeters
ItemPackageDimensions_Length : 10.795 centimeters
ItemPackageDimensions_Width : 12.9032 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-pressure-sensors
Manufacturer : Fujifilm
Material : copper
MeasurementAccuracy : 2%
ModelName : EFDBPNYM
ModelNumber : EFDBPNYM
MountingType : Flange Mount
NumberOfBoxes : 1
NumberOfItems : 1
OutputType : Push-Pull
PackageLevel : unit
PartNumber : 4lw10in
ProductDescription : Prescale is a unique pressure indicating sensor film that illuminates what is occurring between any two mating, contacting, or impacting surfaces.

Simply place the paper-thin pressure indicating film between your two surfaces, whether in your product, process, or R&D environment and the film instantaneously and permanently changes color to capture a “snapshot” in time of the maximum compressive load that has occurred between the two surfaces and the magnitude of that pressure (in PSI or Kg/cm^2).

The pressure film immediately develops to a shade of magenta whose intensity is tightly correlated to a precise level of pressure (in PSI or Kg/cm^2).

Conceptually similar to Litmus paper, the color intensity (ie pressure magnitude) that the film captured when under compressive load can readily be translated into a precise pressure level (in PSI or kg/cm^2) by visually comparing the pressure film to a color correlation chart that is included with the purchase).

Additionally finer interpretation may be resolved by using an optical scanner product that digitally analyzes the pressure indicating film.

Common applications include heat seal planarity, roller set parallelism (nip impressions), object impact, lamination press, heat sink pressure, bolted interface pressure and clamping forces.

Prescale permanently retains the color image it captures after being subjected to pressure which is valuable for archiving purposes, especially for ISO and FDA audits. There are 8 distinct film types offered. Ranging from about 2 PSI (0.14 kg/cm^2) up to 43,200 PSI (3,000 kg/cm^2).
ProductSiteLaunchDate : 2024-05-28T17:00:13.616Z
Size : 50KG
SpecificUsesForProduct : Outdoor, HVAC
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 24141500
