Specification
Brand : Ace Instruments
BulletPoint1 : Calibrator: Static Pressure Pump Calibrator (IK HPP-01) | Knobs: 2 Nos for Fine & Coarse Pressure Adjustment
BulletPoint2 : Pressure Range: Upto 1 Bar | Vacuum Range: Upto 400 mm.H.g | Pressure Ports: 2 Pressure Ports with Ferrule Fitting, 1 Each for Master Gauge & Instrument Under Calibration
BulletPoint3 : Approximate Volume: 400 C.C | Maximum Pressure: 30 PSIG | Maximum Vacuum: 70% at Atmospheric Pressure | Wetted Parts: Anodized Aluminum | Adjustment: Coarse & Fine control
BulletPoint4 : Outlet Connections: 4 Ferrule-less Union Connections | Size: 200(L) X 85 dia mm
BulletPoint5 : Supply Scope: 1 Unit of Pressure Calibrator (IK HPP-01), Silicon Tubes and Instruction Manual | Applications: HVAC, Laboratories, Room Pressure Monitoring, Filter Monitoring, Calibration Labs, Field Calibration.
ExternallyAssignedProductIdentifier : 4650269333409
IncludedComponents : Instruction manual with calibration certificate
ItemName : Differential Pressure Gauge Calibrator for HVAC, Laboratories, Room Pressure Monitoring Model: IK HPP-01 (Static Pressure Pump Only)
ItemTypeKeyword : pressure-calibrators
Manufacturer : Ace Instruments
Material : Differential Pressure Gauge Calibrator
MeasurementAccuracy : +/-0.5%
ModelNumber : FLUKE-700LTP-1
NumberOfItems : 1
PartNumber : IK-HOLD-PSI-PP3 L
PowerSourceType : Battery Powered

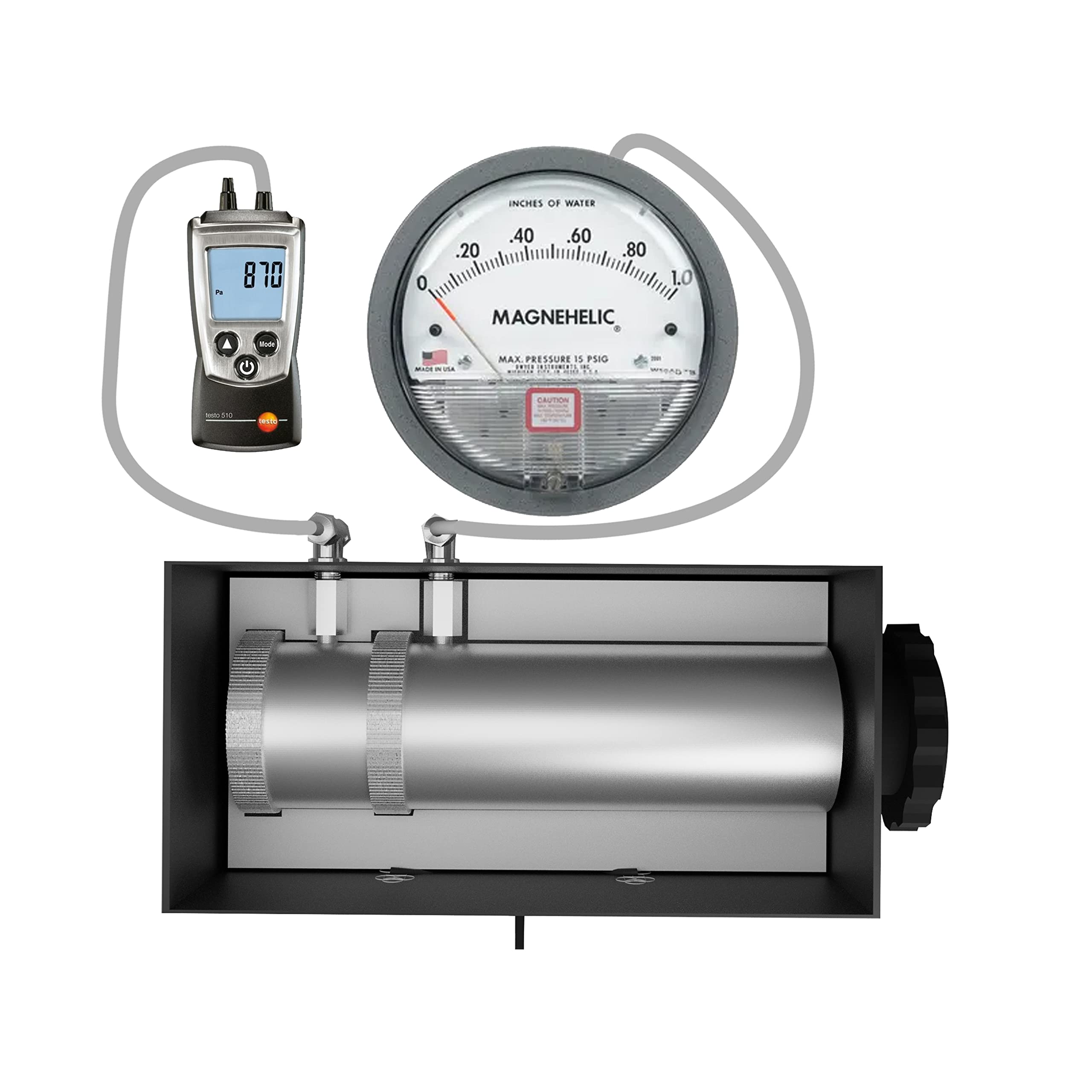

ProductDescription : The Portable Differential Pressure Gauge Calibrator is a handy tool for calibrating differential pressure gauges & differential pressure transmitters.It comes with a hand operated pneumatic (Static Pressure) screw pump with 2 ports, one each for the Master & Instrument under calibration & a high accuracy imported Master Gauge for calibrating various types of Analog & Digital Gauges, Indicators & Transmitters. It is a perfect source for the HVAC engineer & calibration laboratories carrying out high precision calibration for differential pressure parameter. The Portable Differential Pressure Gauge Calibrator is capable of generating upto 1 Bar Pressure & upto 400 mm. Hg. Vacuum, thus making it ideal also for various low pressure & rough vacuum instrument calibrations (Using separate Master Gauges). The imported portable master digital differential pressure gauge has various engineering units selectable from front keys for use in calibrating various instruments requiring several engineering units.
ProductSiteLaunchDate : 2022-09-05T11:21:07.215Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 41110000
