Specification
AmplifierType : Solid State
BatteriesIncluded : 1
BatteriesRequired : 1
Brand : Jolooyo
BulletPoint1 : J162/K1058 Field effect transistor amplifier board MJE15032/MJE15033,MJE340/MJE350 is adopted. The capacitance between coupling stages is 2.2UF, so the sound is natural and the sound field is wide.
BulletPoint2 : The five-ring metal resistor is selected as the resistance, and the five-ring metal film resistance with an accuracy of ±1% is used in the main circuit to ensure a good signal-to-noise ratio of the whole machine.
BulletPoint3 : PCB adopts 1.6mm thick double-sided plate, 2.0oz copper thickness, tin spraying whole process to ensure the good flow of large and small current.
BulletPoint4 : This board adopts the current advanced C1237 horn protection circuit, which can effectively eliminate the impact sound of on and off and DC output protection function, making your horn safer.
BulletPoint5 : The wiring layout of the whole circuit board is quite rigorous and reasonable, and the overall PCB wiring adopts one-point grounding mode. This power amplifier board has the advantages of stable and reliable operation, high output power, beautiful and round sound and open sound field. Strong three-dimensional sense, steady and powerful low frequency, excellent signal-to-noise ratio, wide dynamic range; clear details, excellent transient response, can play all kinds of music well.
Color : Black
CompatibleDevices : Guitar
CompatibleDevices1 : Drum
CompatibleDevices2 : Guitar
ConnectorType : 6.35mm Jack
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier1 : 0728619635993
ExternallyAssignedProductIdentifier2 : 728619635993
ExternallyAssignedProductIdentifier3 : 4957054507701
ExternallyAssignedProductIdentifier4 : 00761294507704
ExternallyAssignedProductIdentifier5 : 04957054507701
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryWithEquipment
Hazmat11 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat12 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat13 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat14 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat15 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat16 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat17 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat18 : JP_SmallLithiumIonBatteryWithEquipment
Hazmat19 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat21 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat22 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat23 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat25 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat26 : US_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat28 : 9
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat6 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat7 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat8 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat9 : CA_SmallLithiumIonBatteryWithEquipment
IncludedComponents : /
IncludesRechargableBattery : 1

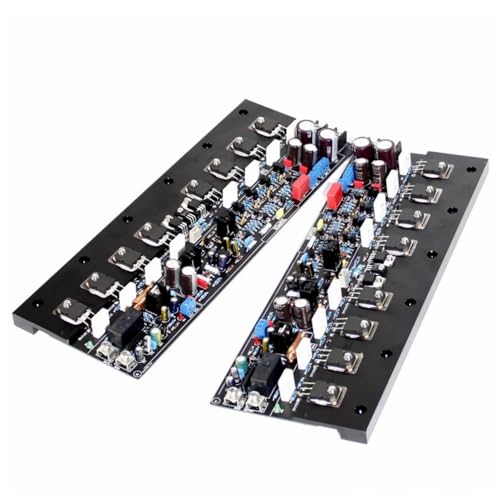

ItemName : YJ KSA80 Field Effect Transistor Amplifier Board MJE15032 MJE15033 MJE340 MJE350 Class A Power Amplifier Board J162 K1058
ItemPackageDimensions_Height : 66.548 centimeters
ItemPackageDimensions_Length : 32.512 centimeters
ItemPackageDimensions_Width : 50.292 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : acoustic-guitar-amplifier-preamps
Manufacturer : Jolooyo
Material : Nylon,Brass
ModelName : JC-40
ModelNumber : YJ 4B
MountingType : Surface Mount
NumberOfBands : 3
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumIonCells : 1
NumberOfLithiumMetalCells : 1
OutputChannelQuantity : 1
OutputWattage : 40 watts
PackageLevel : unit
PartNumber : YJ KSA80
PowerSourceType : Corded Electric
ProductDescription :

Basic parameter requirements:
1. Power supply parameters: one set: DC +-40V (AC: transformer 300W dual 28V, need to add rectifier board).
Another group: single AC15V (Note: each board is powered independently by a single AC15V power supply, that is, a board is powered by a single AC15V power supply).
2. The power amplifier board can use master-slave integrated power supply, each channel uses 26-28V voltage, 6-8A current, officially recommended as DC 70V, so we do not exceed 80V, that is, plus or minus 40V working voltage. That is, the transformer output AC 26-28V. When the master and slave are supplied separately, the current amplifier is 26-28V, and the voltage amplification is 26-30V transformer voltage.
3. Class A 80W under 4 European load.
4. Horn impedance: 4-8 ohms.
5. This circuit is easy to debug, only need to adjust the static current, string the multimeter on the positive pole, set the multimeter to the 10A or 20A gear, adjust the potentiometer VR1 clockwise to 1.5A, this board has no temperature drift, there is no need to adjust repeatedly, this debugging is according to the recommended size of the radiator debugging parameters. If the radiator is too large or too small, the debugging will be changed, if the radiator is relatively large, the static current does not exceed 2A. If the radiator is too small, the temperature of the radiator does not exceed 60 degrees. When any point is reached, the static current should be reduced to ensure safety.
6. Radiator requirements: 350 X 150 X 50 (long. Wide. Tooth height) above 2KG is recommended.
7. Dimensions of plate including radiator: 328*120MM.
8. Weight: 0.65KG+0.65KG.
Packaging: a pair of KSA80 FETs Class A power amplifier board J162 K1058

ProductSiteLaunchDate : 2023-12-13T08:00:00.000Z
Size : 40 Watt
SpeakerSize : 10 inches
StreetDate : 2019-12-01T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
WarrantyDescription : see manufacturer's website for details
