Specification
AutoPartPosition : inside
Brand : TOPZONE
BulletPoint1 : Smoke Color !!
BulletPoint2 : Light has the following functions: Position light, brake light, left turn light , right turn light
BulletPoint3 : Fixed in the place of your original light without any changes
BulletPoint4 : Maximum Quantity LEDs installed
BulletPoint5 : Super Bright LEDs, With built-in Amber Turn Signals, included connectors and resistors if applicable
Color : SMOKE
CompatibleWithVehicleType : Motorcycle
ExternallyAssignedProductIdentifier1 : 092624080360
ExternallyAssignedProductIdentifier2 : 0092624080360

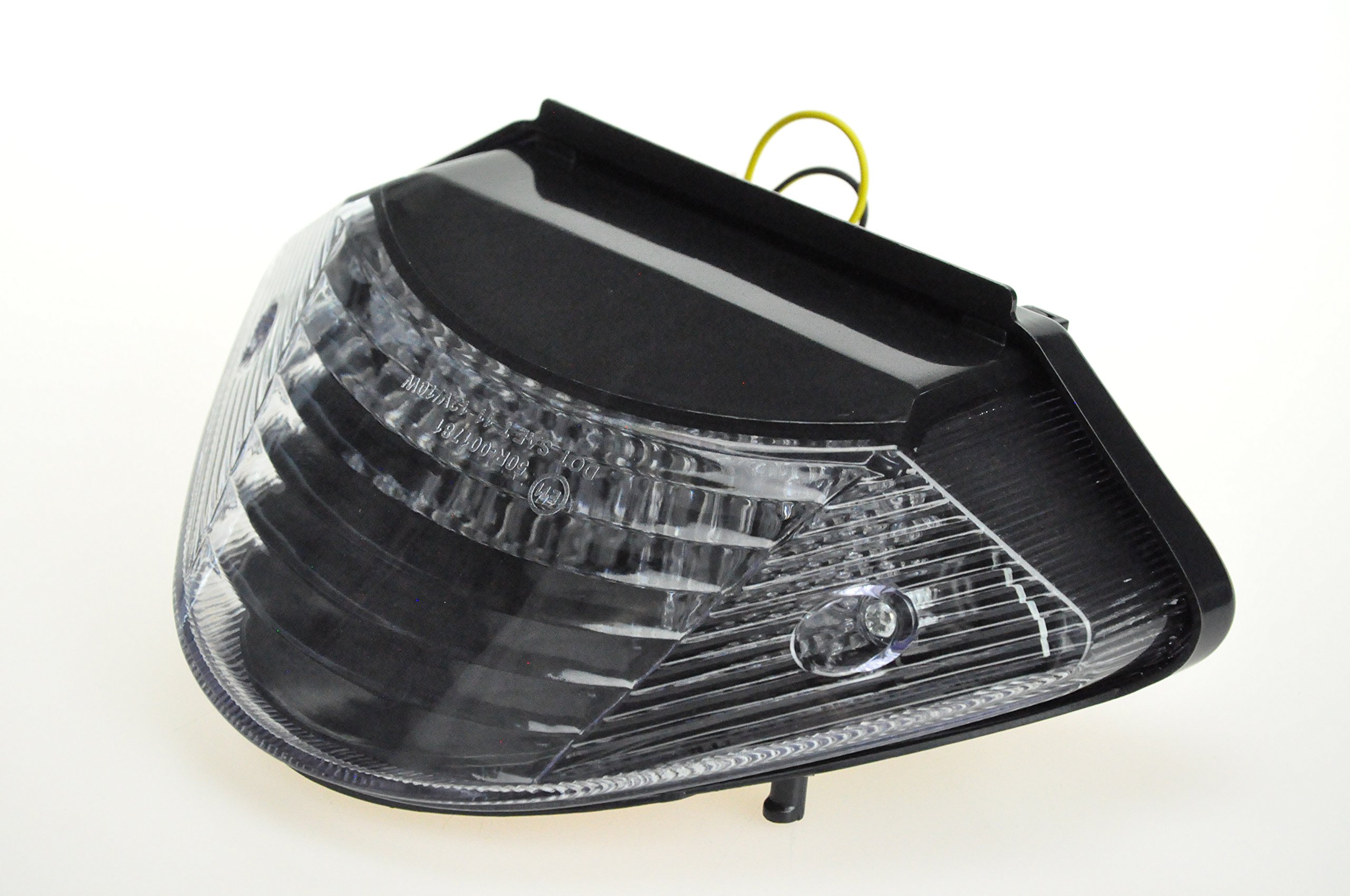

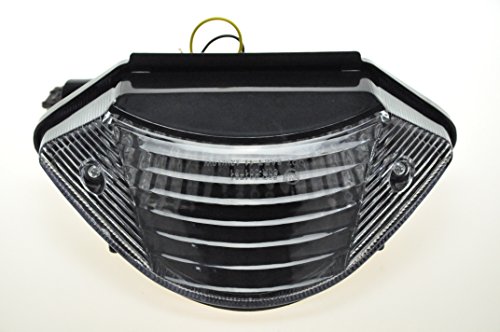

ItemName : Topzone Honda Motorcycle Led Taillights Brake Tail Light with Integrated Turn Signal Lamp Indicators For Honda 2002-2007 599, 2002-2007 919, 2003-2006 CB600, 2003-2006 CB900 HORNET (ITU, SMOKE)
ItemPackageDimensions_Height : 25 centimeters
ItemPackageDimensions_Length : 35 centimeters
ItemPackageDimensions_Width : 25 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : powersports-tail-light-assemblies
Manufacturer : HW
PartNumber : TZH-094-zong
ProductDescription : Topzone Motorcycle Led Taillights Brake Tail Light with Integrated Turn Signal Lamp Indicators For
Honda
2002-2007 599,
2002-2007 919,
2003-2006 CB600,
2003-2006 CB900 HORNET

We provide customized service.You can choose two ways of different flash style with various Lens color.

INT : LED taillight integrated with turn signals.

ITU : generation 2 of LED taillight integrated with Turn signals. Flashes 6 times when the rider activates the brake. The brake will continue to show a solid red color after the initial six flashes. The purpose of the tail light is to alert others drivers as they approach that you are slowing down.


Running light / position light : red color
Stop light / brake light : red color more powerful when you are braking
Integrated turn signals indicators : amber color on each half of the taillight (wires are independent)
To slow down the blinking rate use provided resistors if necessary:

Wiring Diagram applicable to most bikes:
Black Wire(Negative),
Green Wire(Brake)
Red Wire(Running Light)
1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike.
2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive
turn signal wire from your turn signal harness from your bike.
3. Repeat the same process for the other side. To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors.
if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire.


ProductSiteLaunchDate : 2017-06-05T07:00:00.000Z
Size : ITU
SpecificUsesForProduct : Tail Light
UnspscCode : 25172900
