Product Information
Editorial Review

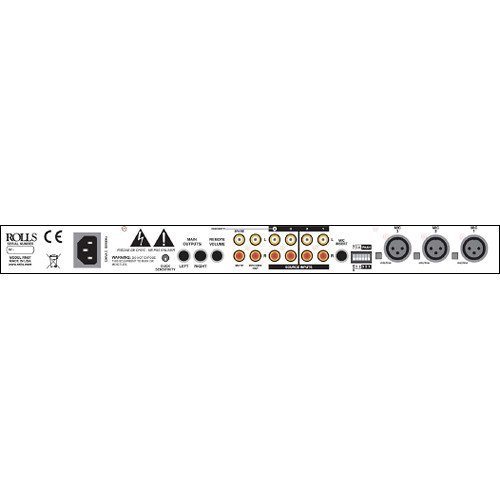

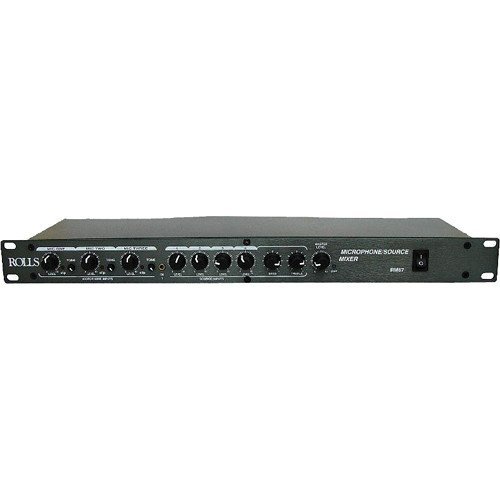

The Rolls RM67 Mic/Source Mixer is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input. A pre-Master RCA output has been provided for recording, and a Remote Volume output The Rolls RM67 Mic/Source Mixer is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input. A pre-Master RCA output has been provided for recording, and a Remote Volume output jack is provided for connection to a 100K ohm linear taper potentiometer and used as an external master level control.
Features
1) Three XLR mic inputs with switchable phantom power and input padding - Clip LEDs for each Mic input
2) Mute jack, contact closure to ground main output mute - Master Level control
3) Remote Volume jack (connects to an optional 100K ohm potentiometer) - Stereo Record Out
4) Priority ducking/talk-over for microphone paging, and jukebox - Mic Insert jack for adding signal processing to the Mic Inputs
5) Four stereo RCA line/consumer level inputs - Master Bass and Treble controls (sources only)
Specification
Binding : Electronics
Brand : rolls
Color : Black
EAN : 0675889006728
Label : rolls
Manufacturer : rolls
Model : RM67
PackageDimensions_Weight : 540.00 hundredths pounds
PackageDimensions : L:21.80 X W:8.00 X H:4.00
ProductGroup : Musical Instruments
ProductTypeName : SOUND_AND_RECORDING_EQUIPMENT
Publisher : rolls
Size : one size
Studio : rolls
Title : Rolls RM67 Mic/Source Mixer
The Rolls RM67 Mic/Source Mixer is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input. A pre-Master RCA output has been provided for recording, and a Remote Volume output The Rolls RM67 Mic/Source Mixer is a single rack space mixer designed for the install/contractor market. The unit mixes three balanced microphones with four stereo sources to mono or stereo balanced outputs. The XLR Microphone Inputs have Mic/Line level switches, a send/return Insert jack, and individually switchable +12 VDC phantom power. Priority talkover, with variable Duck Sensitivity is available on one microphone for paging, and on one Source input for use on a jukebox. telephone system, etc. Each Microphone input has a level and tone control, and each Source input has a level control. Bass and Treble controls have been provided for all the sources, and a Master Output Level control adjusts the level of all mixed signals. Source One has an added front-panel 3.5mm input. A pre-Master RCA output has been provided for recording, and a Remote Volume output jack is provided for connection to a 100K ohm linear taper potentiometer and used as an external master level control.
Features
1) Three XLR mic inputs with switchable phantom power and input padding - Clip LEDs for each Mic input
2) Mute jack, contact closure to ground main output mute - Master Level control
3) Remote Volume jack (connects to an optional 100K ohm potentiometer) - Stereo Record Out
4) Priority ducking/talk-over for microphone paging, and jukebox - Mic Insert jack for adding signal processing to the Mic Inputs
5) Four stereo RCA line/consumer level inputs - Master Bass and Treble controls (sources only)
Specification
Binding : Electronics
Brand : rolls
Color : Black
EAN : 0675889006728
Label : rolls
Manufacturer : rolls
Model : RM67
PackageDimensions_Weight : 540.00 hundredths pounds
PackageDimensions : L:21.80 X W:8.00 X H:4.00
ProductGroup : Musical Instruments
ProductTypeName : SOUND_AND_RECORDING_EQUIPMENT
Publisher : rolls
Size : one size
Studio : rolls
Title : Rolls RM67 Mic/Source Mixer
