Specification
Brand : TECHTONGDA
BulletPoint1 : Main Parameter: Pressure Sleeve Range:<120mm/4.72in; Screw Diameter: 40/50mm(1.57in/1.96in); Screw Length:1000mm/39.37in; Pump station volume:16L; Operating pressure:0-63Mpa. When refueling, try to fill it up as much as possible to prevent the hydraulic pump from suction empty.
BulletPoint2 : Large-capacity Oil Tank: The hydraulic drive pump is equipped with a 16L large-capacity oil tank, the pump station needs to add 46 # anti-wear hydraulic oil by yourself, has high hydraulic power efficiency, and is equipped with a pressure gauge to help observe the pressure at any time when the pump is working.
BulletPoint3 : High Quality: The whole machine is made of thickened steel plate, which is wear-resistant, durable, and reliable in quality. The surface is multi-layer electroplating, four degree polishing, and more smooth and beautiful. Does not damage the track, and can prolong the service life.
BulletPoint4 : High Performance: Double acting hollow oil cylinder, fine workmanship; Stainless steel positioning sleeve, light design, precise structure, long service life. When the oil pump is working, the vent tip on the vent valve or the oil tank sealing cap needs to be loosened counterclockwise,otherwise the pump will experience oil leakage.
BulletPoint5 : Wide Application: Hydraulic crawler pin press is specially designed for crawler machines such as excavators to facilitate the disassembly and installation of crawlers; It can be used with line boring machine and welding machine during maintenance. Widely used in highway, railway, bridge, construction, coal mine and shipbuilding industries.
ExternallyAssignedProductIdentifier1 : 0840403725724
ExternallyAssignedProductIdentifier2 : 840403725724

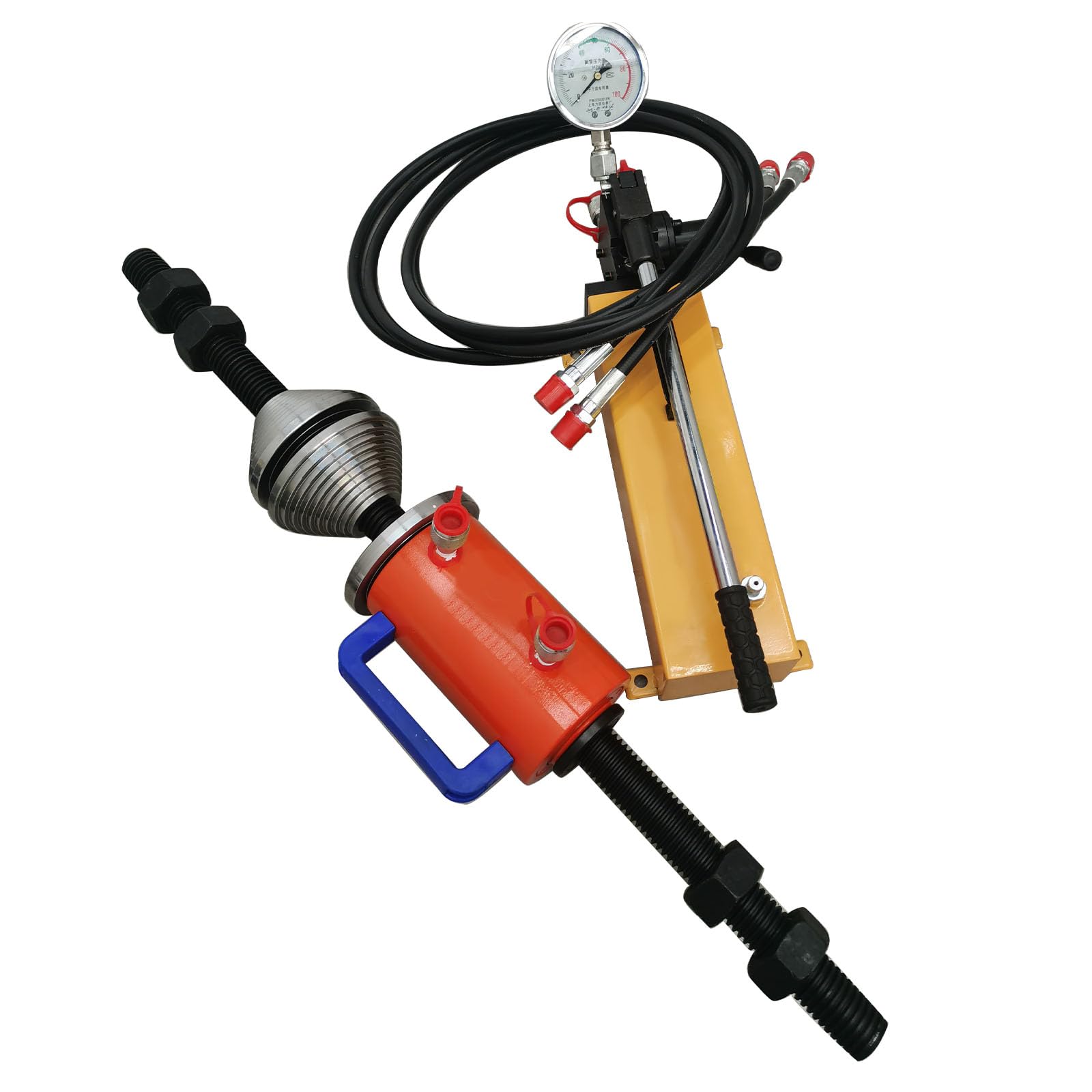

ItemName : TECHTONGDA Manual Bushing Press Machine 30T Excavator Sleeve Pressing Machine Portable Track Pin Disassembly Machine Excavator Maintenance Equipment Crawler Pin Pressing Machine Rail Chain Press
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-power-units
Manufacturer : TECHTONGDA
PartNumber : L022741
ProductDescription :

Parameter:

Weight: 147lb/66.75kg

Pressure sleeve range:<120mm/4.72in

Screw diameter：40/50mm(1.57in/1.96in)

Screw length:1000mm/39.37in

Operating pressure:0-63Mpa

Pump station volume:16L

Note:There will be a little error in manual measurement.

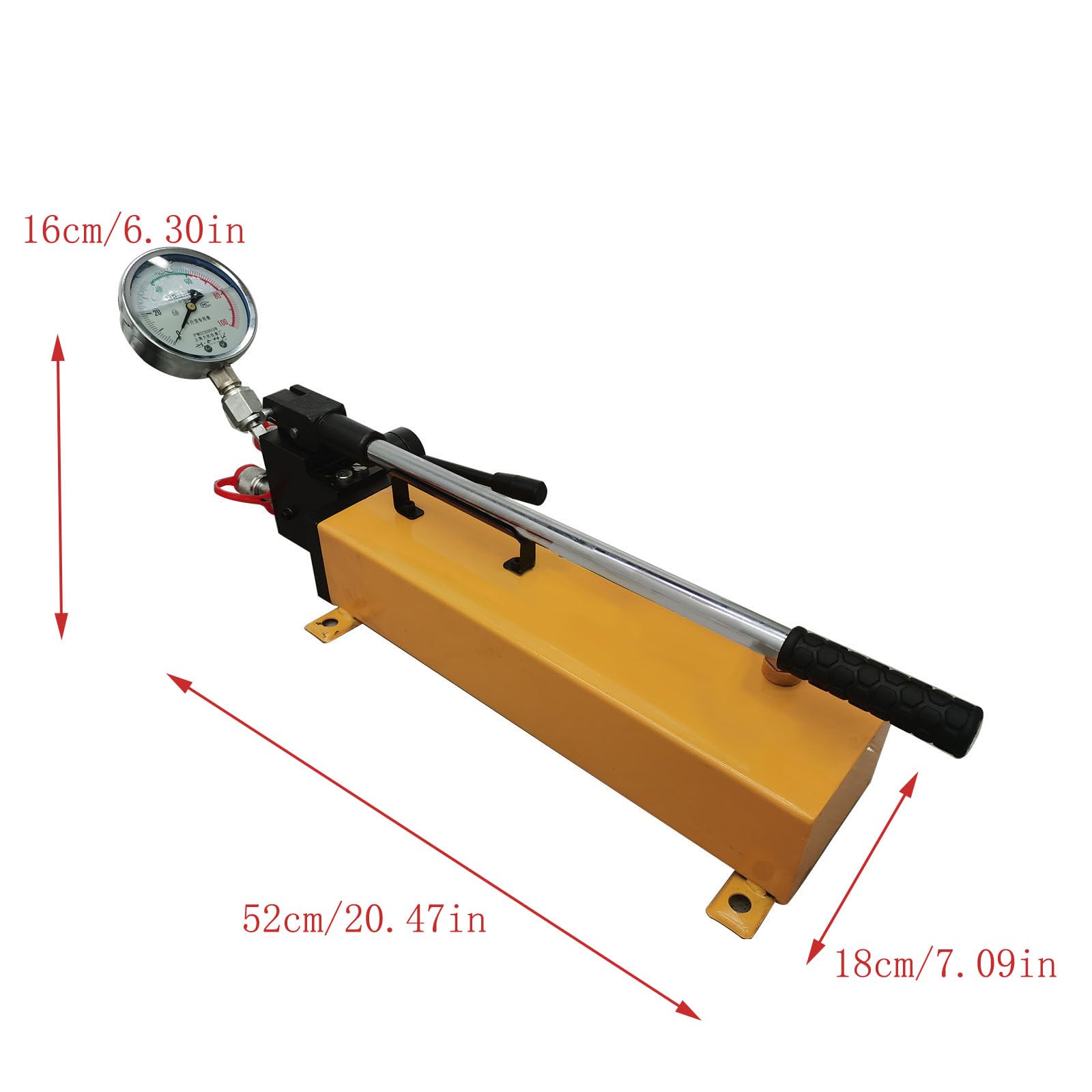

This product is an ultra-high pressure manual pressure, liquid addition, and hydraulic pump.

Working medium is 46 hydraulic oil.

When refueling, try to fill it up as much as possible to prevent the hydraulic pump from suction empty.

When using it for the first time, fill the oil tank with hydraulic oil and press the hydraulic pump several times to clear the air inside the pump body (otherwise the pressure rod will rebound).

When the oil pump is working, the vent tip on the vent valve or the oil tank sealing cap needs to be loosened counterclockwise,otherwise the pump will experience oil leakage.

Item Included(022741): 1 Set of 30T Excavator Sleeve Pressing Machine
