Specification
Brand : HWBWE
BulletPoint1 : 【High Efficiency】The powerful 1.6KW brush DC motor, 3000RPM speed, and 22MPA pressure ensure fast start-up and oil output, which can provide strong power for the hydraulic system and complete lifting operations in a short time.
BulletPoint2 : 【Safety First】This product comes with a relief valve to avoid overpressure, and the throttle valve can control fall speed in a certain extent, giving you time to react. The fuel tank has a capacity of 15QT, so you can easily use it without frequent refueling.
BulletPoint3 : 【Good Performance】It is a single-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work.The 13.12 ft thickened handle cord reduces usage restrictions and further protects your safety.
BulletPoint4 : 【Easy to Use】You just need to connect this product with the oil pipe(not included) and 12V DC power supply(not included), and then you can operate it with the included wired handle. It can tackle the lifting and lowering of mechanical equipment efficiently by simply pressing the UP and DN buttons.
BulletPoint5 : 【Robust and Durable】Made of high-quality aluminum, steel, and iron, it is solid, impact-resistant, corrosion-resistant, high temperature-resistant, wear-resistant, and not easy to deform, crack, or leak under harsh situations, ensuring a long service life.
Color : Black
ExternallyAssignedProductIdentifier : 6967731043956
ExternallyAssignedProductIdentifier1 : 0769092484968
ExternallyAssignedProductIdentifier2 : 769092484968
IncludedComponents : 1*Single Acting Hydraulic Pump
ItemName : Hydraulic Pump, 15 Quart Hydraulic Pump Single Acting Hydraulic Power Unit, Hydraulic Pump w/Wired Handle for Trailer Truck Car Lifting
ItemPackageDimensions_Height : 10.83 inches
ItemPackageDimensions_Length : 25.79 inches
ItemPackageDimensions_Width : 12 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-power-units
Manufacturer : HWBWE
Material : Aluminium, Iron, Steel
ModelName : hydraulic pump for dump trailer
ModelNumber : electric hydraulic pump
NumberOfItems : 1
PartNumber : LXRHV8byvqRoNlwIdMdwQ-FcAqfLGcW
ProductDescription :

Application

It can be used for hydraulic trailers, lifting platforms, stacker trucks, boarding bridges, sanitation trucks, tipper trucks, handling trucks, tractors, forklift trucks, basketball hoops, smoke machines, automobile tailgates, RVs, boat lifts, lift gates, clearance vehicles, car transporters, agricultural equipment, snow ploughs, aerial platform, road signs, material handling, truck tailgate lift, and so on.



Specifications

Material: Aluminium, Iron, Steel

Color: Black

Actions: Single Acting

Installation Method: Horizontal Installation

Voltage: DC12V

Power: 1.6KW

Speed: 3000RPM

Displacement: 1.1ML/0.04OZ/R

Tank Capacity: 14.2L/15QT

Applicable Medium: Hydraulic Oil (Not Included)

Motor Type: Brush DC Motor

Control Mode: Wired Handle(Included)

Pressure: 22 MPA

Noise: Within 75dB

Outlet Thread: G1/4

Handle Cord Length: 4m/13.12ft

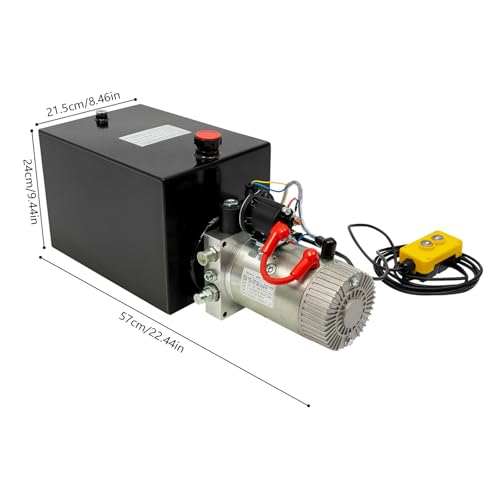

Product Size: 57*21.5*24cm/22.44*8.46*9.45in

Package Size: 65.5*30.5*27.5cm/25.79*12*10.83in

Gross Weight: 15.8kg/34.83lbs

Net Weight: 15.64kg/34.48lbs



Package Included

1*Single Acting Hydraulic Pump



Notes

1.Please check the size carefully before ordering.

2.Please note that this product does not contain hydraulic oil or an oil pipe.

3.Please note that the suitable hydraulic oil viscosity range is 22-46mm²/s. ATF, OD18, or other clean hydraulic oil with a viscosity of 150-300 SUS at 100.4℉ is acceptable.

4.Please note that the hydraulic oil to be filled into the tank should be filtered and the filter precision should be not less than 25μm.

5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
