Hydraulic Power Unit, 20 Quart Hydraulic Pump with 4.5 Meter Wired Control Handle, DC12V 16MPa Double Acting Pump, Steel Hydraulic Electric Pump for Electric Forklift Trucks, Lifting Platforms

Imported from USA | Ships in 10 working days

5% instant discount on non COD

1

₹ 44300/-

The price at cart2india.com is inclusive of custom duties, GST, freight forwarding and other charges.

Free Shipping across India. Powered by BlueDart

Product Information


Specification
Brand : ACNAO
BulletPoint1 : Stable and Efficient: The hydraulic electric pump is equipped with a powerful 12V DC motor for stable performance and quick start-up. So, It can provide strong power for hydraulic systems such as car elevators and lifters to achieve short-term lifting, greatly improving working efficiency. It is equipped with an overflow valve, so it will automatically release when overpressure to avoid overpressure damage or excessive pressure, making it safe and reliable to use.
BulletPoint2 : Low Noise: The volume is low when it operates, giving you a quiet and comfortable working environment.
BulletPoint3 : High Performance: It is a double-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work.
BulletPoint4 : Compact and Lightweight: It is compact and lightweight(31.96lbs), allowing it to be easily installed on electric basketball stands, snow sweepers, truck tailgates, etc. without being abrupt, and also making it easy to carry and move.
BulletPoint5 : Easy to Use: This hydraulic electric pump can be used directly after receiving without additional assembly requirements. At the same time, the English operating instructions are also provided in the package to facilitate your operation and installation.
Color : Black, Silver
IncludedComponents : 1* Hydraulic Electric Pump 1* Connector 1.* 4.5-meter Wired Control Handle 1* English User Manual
ItemName : Hydraulic Power Unit, 20 Quart Hydraulic Pump with 4.5 Meter Wired Control Handle, DC12V 16MPa Double Acting Pump, Steel Hydraulic Electric Pump for Electric Forklift Trucks, Lifting Platforms
ItemPackageDimensions_Height : 25.59 inches
ItemPackageDimensions_Length : 11.02 inches
ItemPackageDimensions_Width : 11.02 inches
ItemTypeKeyword : hydraulic-power-units
Manufacturer : ACNAO
Material : Steel
ModelName : Hydraulic Power Unit
ModelNumber : Hydraulic Power Unit
NumberOfItems : 1
PartNumber : Hydraulic Power Unit
ProductDescription :

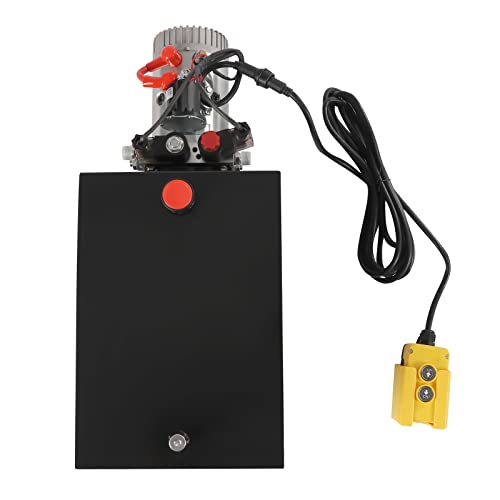

This hydraulic pump is made of solid steel, which is very solid and not easy to crack or damage.   It is equipped with a 3kw powerful motor, with a release pressure of up to 16MPa, making it easy to handle various hydraulic lifting operations.   As a power unit, it will be the ideal choice for all kinds of remote hydraulic systems!

Details

Remote Control: It is equipped with a solid remote control with a 4.5m/14.76ft cable, which allows you to remotely operate the product.   Press the button up and down, and it will stop when you release the button.

Superior Tank: It has a metal fuel tank, which will not crack or leak even under harsh conditions, so you can use it with confidence.   Its capacity is 20 quarts, avoiding frequent filling of hydraulic oil.

Application

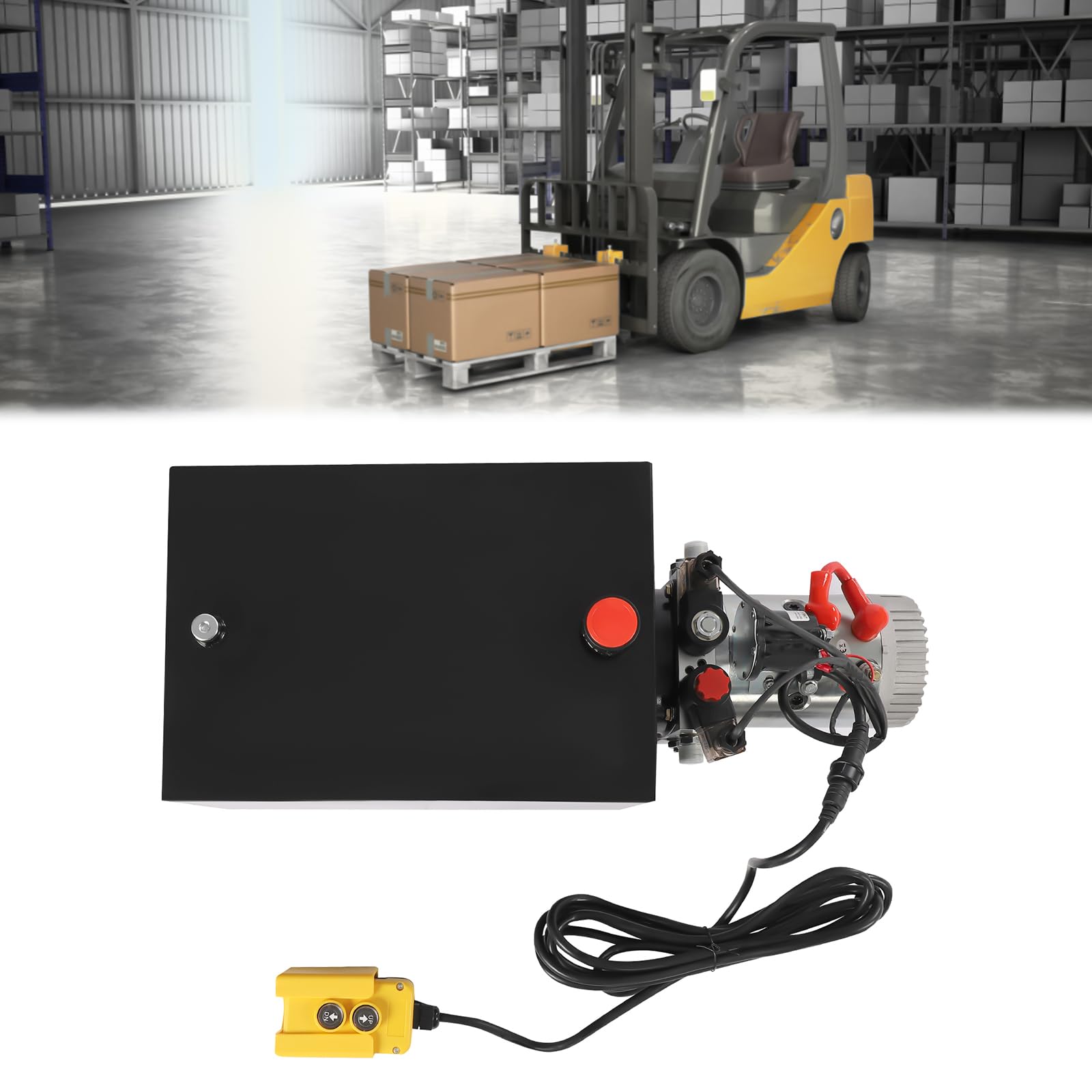

It is suitable for electric forklift trucks, electric forklift trucks, tipper trucks, lifters, motorbike lifters, car tailboards, electric pallet trucks, lifting platforms, aerial work platforms, electric basketball hoists, boarding bridges, etc.

Specifications

Material: Steel

Color: Black, Silver

Type: Horizontal

Rated Speed: 2850R/MIN

Internal Thread Model: m14 * 1.5

Connector Model Configured: 18 * 1.5

Connector Model Additionally Configured in the Package: 9/16''(SAE6)

Power: 3KW

Voltage: DC12V

Tank Capacity: 18.9L/ 20Qt

Cord Length: 4.5m/14.76ft

Release Pressure: 16MPa

Recommended Hydraulic Oil: ISO VG22-46 (0 ℃ - 70 ℃): ISO VG15 (- 15 ℃ - 0 ℃)

Tolerance Range of Power Supply Voltage: ± 10%

Packing Size: 65*28*28cm/25.59*11.02*11.02in

Product Size: 63*26*30cm/24.8*10.23*11.81in

Gross Weight: 17kg/37.78lbs

Package Included

1* Hydraulic Electric Pump

1* Connector

1.  * 4.5-meter Wired Control Handle

1* English User Manual

Notes

1.  The hydraulic oil should be replaced upon working for 100 hours since the initial filling.   Subsequently, the hydraulic oil should be replaced once per year/ about 1500 working hours.

2.  The oil filling volume of the oil tank shall be 90% of the capacity, and the oil volume shall not be less than 85%.   When starting the operating system for the first time, immediately check whether the oil in the oil tank is sufficient.

3.  Please note that the cleanliness level of hydraulic oil is ISO 4006 (: 99) 18/15 or NAS1638 9~10, and the product oil must pass 10-25 μm The oil filter truck can be used as working oil after filtering.

4.  Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
