Specification
Brand : FIPINIXK
BulletPoint1 : 【High Efficiency】The powerful 1.6KW brush DC motor, 3000RPM speed, and 22MPA pressure ensure fast start-up and oil output, which can provide strong power for the hydraulic system and complete lifting operations in a short time. The 13.12 ft thickened handle cord reduces usage restrictions and further protects your safety. The standard thread of G1/4 is convenient for you to connect most oil pipes (not included).
BulletPoint2 : 【Large Capacity】The fuel tank has a capacity of 4.5QT, so you can easily use it without frequent refueling. It is a double-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work. Thanks to its smooth surface and simple construction, you can wipe it clean with a damp rag(not included).
BulletPoint3 : 【Simple Installation】The hydraulic pump for dump trailer is already assembled and all you need to do is to fix them to the equipment, which is very simple and convenient. You just need to connect this product with the oil pipe(not included) and 12V DC power supply(not included), and then you can operate it with the included wired handle.
BulletPoint4 : 【Robust and Durable】Made of high-quality aluminum, steel, and iron, it is solid, and not easy to deform, crack, or leak under harsh situations, ensuring a long service life. This double acting hydraulic pump comes with a relief valve to avoid overpressure, and the throttle valve can control fall speed in a certain extent, giving you time to react.

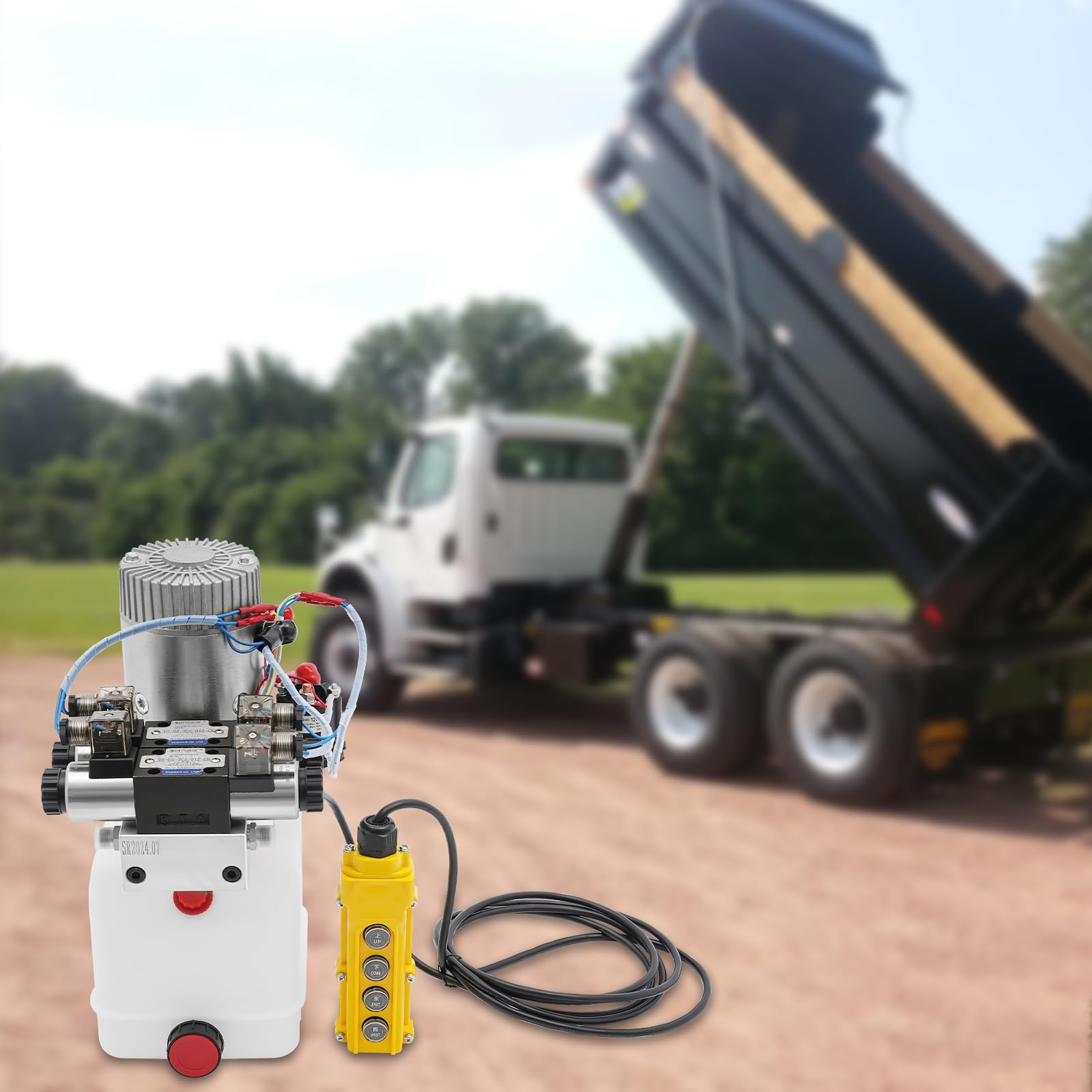

BulletPoint5 : 【Wide Application】It can be used for hydraulic trailers, lifting platforms, stacker trucks, boarding bridges, sanitation trucks, tipper trucks, handling trucks, tractors, forklift trucks, basketball hoops, smoke machines, automobile tailgates, RVs, boat lifts, lift gates, clearance vehicles, car transporters, agricultural equipment, snow ploughs, aerial platform, road signs, material handling, truck tailgate lift, and so on.
Color : Double Acting Hydraulic Pump
IncludedComponents : Double Acting Hydraulic Pump

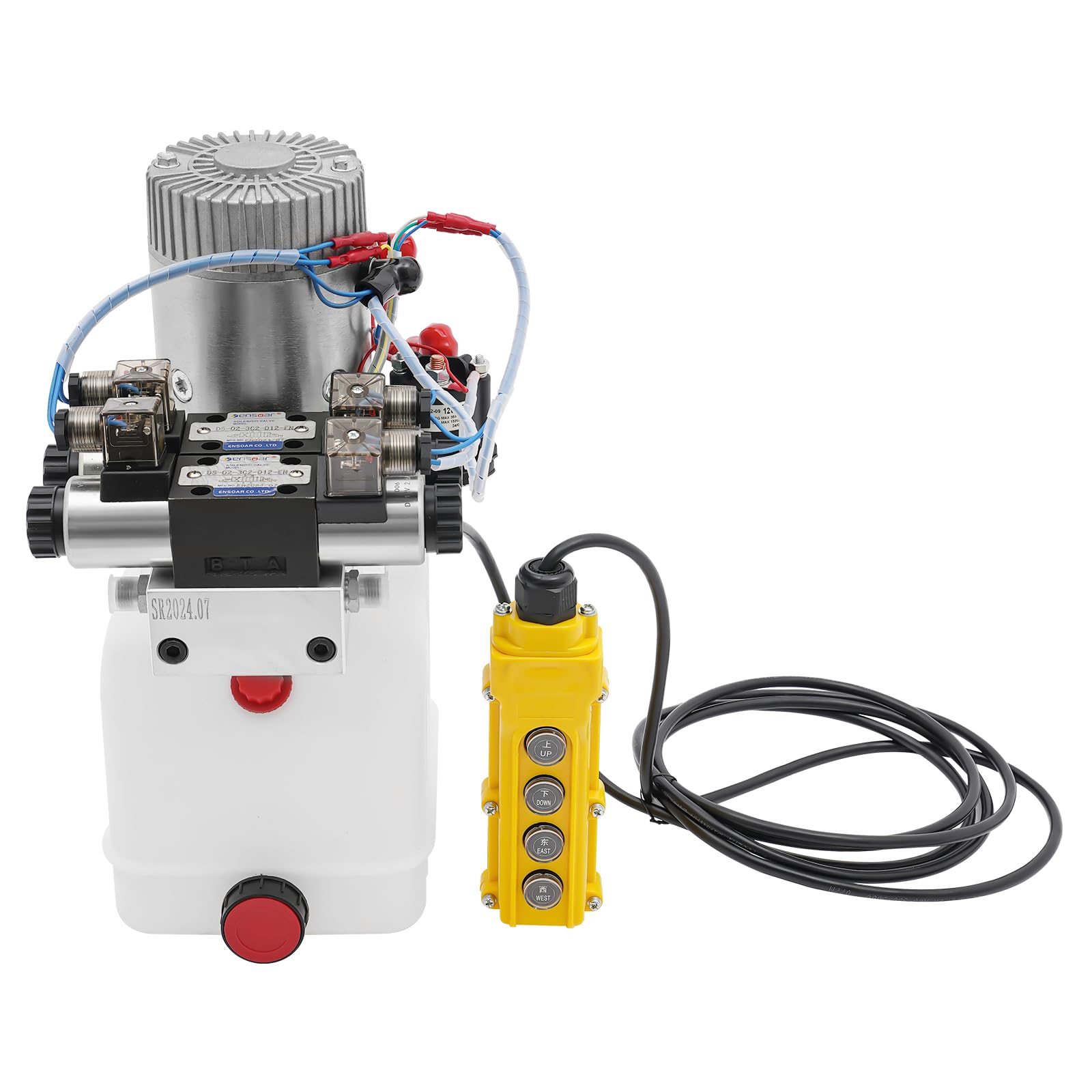

ItemName : FIPINIXK Hydraulic Pump with Wired Handle, Double Acting Hydraulic Pump with G1/4 Standard Thread and Relief Valve 4.5QT Fuel Tank for Hydraulic Trailers Lifting Platforms 3000RPM
ItemPackageDimensions_Height : 10.24 inches
ItemPackageDimensions_Length : 20.87 inches
ItemPackageDimensions_Width : 9.84 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-power-units
Manufacturer : FIPINIXK
Material : Aluminium, Iron, Steel
ModelName : Double Acting Hydraulic Pump
ModelNumber : Double Acting Hydraulic Pump
NumberOfItems : 1
ProductDescription :

Specifications

Material: Aluminium, Iron, Steel

Actions: Double Acting

Installation Method: Horizontal Installation

Voltage: DC12V

Power: 1.6KW

Speed: 3000RPM

Displacement: 1.1ML/0.04OZ/R

Tank Capacity: 4.26L/4.5QT

Applicable Medium: Hydraulic Oil (Not Included)

Motor Type: Brush DC Motor

Control Mode: Wired Handle(Included)

Pressure: 22 MPA

Noise: Within 75dB

Outlet Thread: G1/4

Handle Cord Length: 4m/13.12ft

Product Size: 41*25*23cm/16.14*9.84*9.06in

Package Size: 53*25*26cm/20.87*9.84*10.24in

Gross Weight: 13kg/28.66lbs

Net Weight: 12.87kg/28.37lbs

Package Included

1*Double Acting Hydraulic Pump

Notes

1.Please check the size carefully before ordering.

2.Please note that this product does not contain hydraulic oil or an oil pipe.

3.Please note that the suitable hydraulic oil viscosity range is 22-46mm²/s. ATF, OD18, or other clean hydraulic oil with a viscosity of 150-300 SUS at 100.4℉ is acceptable.

4.Please note that the hydraulic oil to be filled into the tank should be filtered and the filter precision should be not less than 25μm.

5.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
