Specification
Brand : FIPINIXK
BulletPoint1 : 【High Efficiency】The powerful 1.2KW brush DC motor, 2850RPM speed, and 21MPA pressure ensure fast start-up and oil output, which can provide strong power for the hydraulic system and complete lifting operations in a short time. The 13.12 ft thickened handle cord reduces usage restrictions and further protects your safety. The standard thread of G1/4 is convenient for you to connect most oil pipes (not included).
BulletPoint2 : 【Safety Protection】The hydraulic pump for dump trailer comes with a relief valve to avoid overpressure, and the throttle valve can control fall speed in a certain extent, giving you time to react. In addition, the emergency stop switch on the wireless remote control allows you to press it to disable the remote switch when an emergency occurs, protecting your safety. Made of high-quality aluminum, iron, and steel, it is solid.
BulletPoint3 : 【Large Capacity】The fuel tank has a capacity of 8QT, so you can easily use it without frequent refueling. It is a single-acting pump, which can be used to lift and lower the hydraulic system to effectively handle a lot of work. Mounting holes are convenient for you to mount the product firmly to the mechanical equipment. Thanks to its smooth surface and simple construction, you can wipe it clean with a damp rag(not included).
BulletPoint4 : 【Easy to Use】You just need to connect this single acting hydraulic pump with the oil pipe(not included) and 12V DC power supply(not included), and then you can operate it with the included controller. A wireless remote control (within about 492.13 ft) and a wired handle control the motor and solenoid valves respectively, making it easier and more convenient for you to operate.

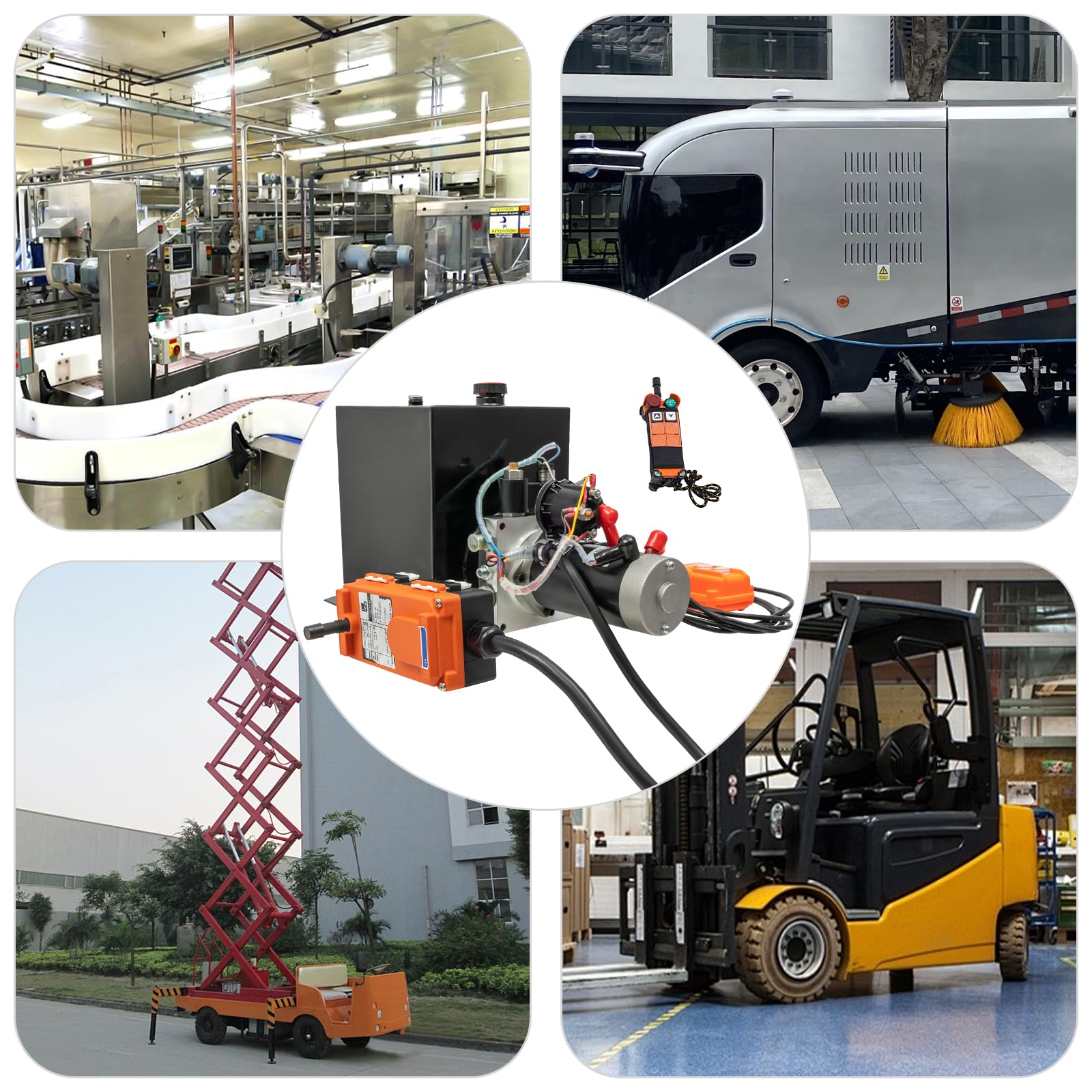

BulletPoint5 : 【Application&Installation】The hydraulic power unit with wireless remote control can be used for hydraulic trailers, lifting platforms, stacker trucks, boarding bridges, sanitation trucks, tipper trucks, handling trucks, tractors, forklift trucks, basketball hoops, smoke machines, automobile tailgates, and so on. Our products are already assembled and all you need to do is to fix them to the equipment, which is very simple and convenient.
Color : Single Acting Hydraulic Pump
IncludedComponents : Single Acting Hydraulic Pump

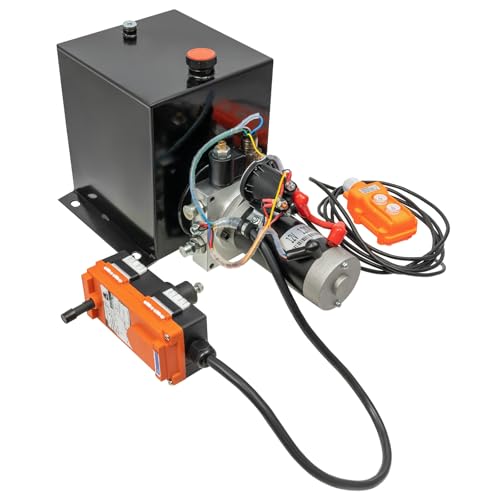

ItemName : FIPINIXK DC12V Hydraulic Pump with Wired Handle, Single Acting Hydraulic Pump with G1/4 Standard Thread and Remote Control 7.57L/8QT Fuel Tank for Hydraulic Trailers Lifting Platforms
ItemPackageDimensions_Height : 10.04 inches
ItemPackageDimensions_Length : 22.44 inches
ItemPackageDimensions_Width : 10.43 inches
ItemPackageQuantity : 1
ItemTypeKeyword : hydraulic-power-units
Manufacturer : FIPINIXK
Material : Aluminium, Iron, Steel
ModelName : Single Acting Hydraulic Pump
ModelNumber : Single Acting Hydraulic Pump
NumberOfItems : 1
ProductDescription :

Specifications

Material: Aluminium, Iron, Steel

Color: Black

Actions: Single Acting

Installation Method: Horizontal Installation

Voltage: DC12V

Power: 1.2KW

Speed: 2850RPM

Displacement: 1.1ML/0.04OZ/R

Tank Capacity: 7.57L/8QT

Applicable Medium: Hydraulic Oil (Not Included)

Motor Type: Brush DC Motor

Control Mode: Wireless Remote Control, Wired Handle(Included)

Battery Type: 2 * AA Batteries (Not Included)

Pressure: 21MPA

Remote Control Distance: About 150m/492.13ft(in an Open Environment)

Noise: Within 75dB

Outlet Thread: G1/4

Handle Cord Length: 4m/13.12ft

Product Size: 44*20*22cm/17.32*7.87*8.66in

Package Size: 57*26.5*25.5cm/22.44*10.43*10.04in

Gross Weight: 14.5kg/31.97lbs

Net Weight: 14.36kg/31.66lbs

Package Included

1*Single Acting Hydraulic Pump

1*Wireless Remote Control



Notes

1.Please check the size carefully before ordering.

2.Please note that this pump must be used with a single-acting cylinder (not included). The pump will have an outlet and return port when controlling your cylinder up and down, so your cylinder must also have two ports to work.

3.Please note that this product does not contain hydraulic oil and or oil pipe.

4.Horizontal mount is recommended.

5.Please note that the suitable hydraulic oil viscosity range is 22-46mm²/s. ATF, OD18, or other clean hydraulic oil with a viscosity of 150-300 SUS at 100.4℉ is acceptable.

6.Please note that the hydraulic oil to be filled into the tank should be filtered and the filter precision should be not less than 25μm.
