Specification
Brand : MicroTunk
BulletPoint : Low-Voltage Transformers
BulletPoint1 : Input voltage:3.2V~35V Output voltage:1.25V~35V
BulletPoint2 : Output current: 3A (maximum) Conversion efficiency: 92% (maximum)
BulletPoint3 : Output ripple:<30mV Switching frequency:65KHz
BulletPoint4 : Working temperature:-45℃~ +85℃
BulletPoint5 : Note: IN+ input positive pole IN- input negative pole! OUT+ output positive pole OUT- output negative pole! Note that the input and output cannot be connected in reverse. Reverse connection may burn out!
Color : Blue
ExternallyAssignedProductIdentifier : 7375601771899

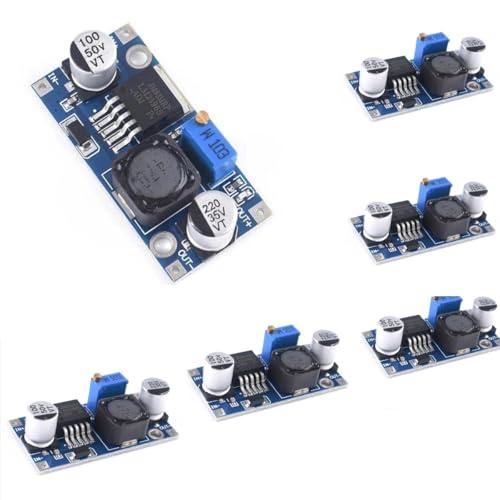

ItemName : 6pcs LM2596 LM2596s DC to DC Buck Converter Adjustable Step-Down Converter Buck Regulator Power Module 3.2-40V to 1.25-35V 3A High Efficiency DC Regulator Voltage Transformer
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 11 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-power-transformers
Manufacturer : MicroTunk
ModelNumber : TRSFGASX
NumberOfBoxes : 1
NumberOfItems : 1
PartNumber : DYMK-LM2596S-6PCS
ProductDescription :

Name: LM2596 DC-DC step-down module

Input voltage: 4V~35V

Output voltage: 1.23V~30V

Output current: 3A (Max) Conversion efficiency: 92% (MAX)

Output ripple: <30mV Switching frequency: 150KHz

Operating temperature: -45~+85 Dimensions: 43mm*21mm*14mm (length*width*height)

Note: IN+ input positive pole IN- input negative pole! OUT+ output positive pole OUT- output negative pole! Note that the input and output cannot be reversed, which may burn out! Input: DC 3V to 35V (the input voltage must be 1.5V higher than the output voltage, and it cannot be boosted) Output: DC 1.5V to 35V The voltage is continuously adjustable, high efficiency, and the maximum output current is 3A.

.Features: All use SANYO solid capacitors, 36u thickened circuit boards, high Q value high power inductors with output LED indicators. It is recommended to use the current within 2.5A for long-term operation, and a heat sink is required for more than 2A (output more than 10W); Because it is a step-down module, to ensure output stability, please maintain a minimum voltage difference of 1.5V.

Wiring method 1. Welding, directly weld the power cord to the input (output) port;

2. After welding the pins, you can insert p Features: 1. Input voltage range: DC 3.2V to 40V (the input voltage must be higher than the output voltage by more than 1.5V. It cannot be boosted)

3. Output voltage range: DC 1.25V to 35V adjustable voltage, high efficiency (92%), and the maximum output current is 3A. Instructions for use: 1. Turn on the power supply (3-40V), the power indicator light is on, and the module is working properly.

4. Adjust the blue potentiometer knob (clockwise rotation generally increases the voltage, counterclockwise rotation decreases) and use a multimeter to monitor the output voltage to reach the required voltage. Note: It is recommended to use the long-term working current within 2.5A, and at the same time increase the capacity heat sink (output above 10W). Because it is a step-down module, to ensure stable output, please maintain a minimum voltage difference of 1.5V.

ProductSiteLaunchDate : 2024-11-01T10:53:37.976Z
Size : Dual 20V
UnitCount : 1
UnspscCode : 26111500
