Specification
BatteriesRequired : 1
Brand : HFBTE
BulletPoint1 : ❤❤(1)POA-3H Power Quality Analyzer is a comprehensive test instrument,designed for field test of three phases, multi-functional and intelligent, concise man-machine operation. It is easy to use, large LCD screen display, high resolution, interface in both Chinese and English, shock-proof shell structure and so on.
BulletPoint2 : ❤❤(2)Can simultaneously measure the 4-channel current (ABC three phase and neutral wire current), 4-channel voltage (ABC three-phase voltage and neutral line voltage to ground), the peak value of current voltage, maximum/minimum value over a period, three-phase imbalance factor, short-time voltage flicker, transformer K factor, active power, reactive power, apparent power, power factor and displacement power factor, active power, reactive power, apparent power, etc;
BulletPoint3 : ❤❤(3)POA-3H Power quality analyzer adopt DSP + ARM double processor architecture, DSP is use for data collection and the processing of algorithm, the ARM is use for the communication protocol and the man-machine interface processing; Analog signal acquisition is by 2 pieces AD7655 of ADI company.
BulletPoint4 : ❤❤(4)Using a 5.6 -inch LCD color screen display, a resolution of 640 dots x 480 dots, with different display color difference between the parameters of phase, waveform, vector diagram, harmonic ratio, the user can be more efficient and more intuitive understand the state of power grid parameters.
BulletPoint5 : ❤❤(5)Built-in flash memory can store 60 group of screenshots at the same time, 150 groups of capture transient voltage/current waveform figure, and 12800 groups of alarm list. Starting current detection model can continuously capture starting current waveform for 100 s. Built-in 2G memory card to store the trend curve record, simultaneous recording 20 parameters (can choose according to need) collect data for once every five seconds, trend curve records can be stored for 300 days.
Color : Red+Grey
IncludedComponents : Three Phase Power Quality Meter

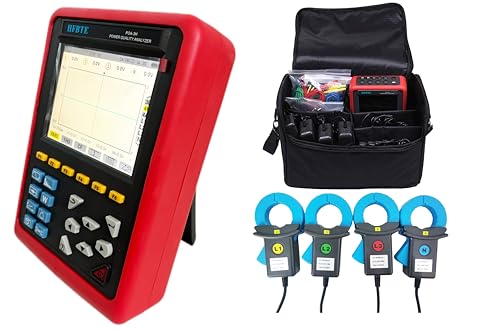

ItemName : HFBTE POA-3H Energy Quality Analyzer 3 Phase Power Quality Monitor Three Phase Power Measurement Logger with 4PCS Round Jaw Current Clamp 0.10A~100A Line Voltage 1.0V~2000V Phase Voltage 1.0V~1000V
ItemPackageDimensions_Height : 50 centimeters
ItemPackageDimensions_Length : 40 centimeters
ItemPackageDimensions_Width : 30 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : HFBTE
MeasurementAccuracy : precise
ModelNumber : 2024092509dara
NumberOfItems : 1
PartNumber : 2024092509dara
PowerSourceType : Battery Powered
ProductDescription : ❤❤It's better to download the user manual under the picture to review and study the specifications first. Then you can decide to buy it or not.❤❤

Main Function:
1. POA-3H is a comprehensive test instrument of multifunctional, intelligent, man-machine operation simple. Comprehensive analysis and diagnosis all the voltage, current, power, electrical energy, harmonic, phase and other electric parameters.
2. 4 channel current and 4 channel voltage measurement, simultaneously capturing and recording electric parameters and waveform, to provide with all the power quality information for working.
3. Line voltage:Below 600V.

Technical Specifications
Power supply:Rechargeable lithium-ion battery packs 9.6V, backup charger.
Working Current:about 590mA, continuous working 8hours.
Display mode:LCD color screen, 640dots × 480dots, 5.6 inches, display field 116mm × 88mm
Instrument Size:240mm×170mm×68 mm.
CT Size:100A round jaw current clamp: 35mm×40mm;
Line Voltage:1.0V~2000V.
Phase Voltage:1.0V~1000V
Current:100A current clamp: 0.10A~100A;
Frequency:40Hz~70Hz.
Electricity Energy Parameter:W, VA, Var, PF, DPF, cosφ, tanφ.
Energy parameters:Wh, Varh, Vah.
Harmonic Wave:Yes, 0 - 50 times
Total harmonic distortion:Yes, 0 - 50 times, each phase
Expert Mode:Yes.
Transient Record Groups:150 groups
Voltage Flicker:Yes
Start Current Mode:Yes, 100 seconds
Three-phases Unbalance:Yes
Peak:Yes.
Phasor Diagram Display:Automatic
Screenshot Capacity:60PCS
Communication Interface:USB.
Voltage Test Wire Length:3M
Current Clamp Wire Length:2M

❤❤Please refer to the pictures for other POA-3H parameters.❤❤
