Specification
Brand : Hilitand
BulletPoint : 6 in 1 AC Monitor D69-2058 AC Digital Voltage and Current Power Frequency Factor Electricity Meter Multi-Function Power Monitor
BulletPoint1 : [ Current Measurement] With a built-in shunt, it measures current in the range of 0.01-10A for detailed monitoring.
BulletPoint2 : [Comprehensive Functionality] Ideal for monitoring energy usage in homes, offices, or industrial settings with high accuracy and .
BulletPoint3 : [Versatile Energy Consumption Meter] It accurately measures DC voltage, current, active power, frequency, and energy consumption.
BulletPoint4 : [Efficient Communication Interface] Utilizes UART to RS485 for seamless communication, supporting ModbusRTU protocol for reliable data .
BulletPoint5 : [Customizable Voltage Threshold] Allows users to set high and low voltage thresholds for timely alarms when exceeded, ensuring safety.

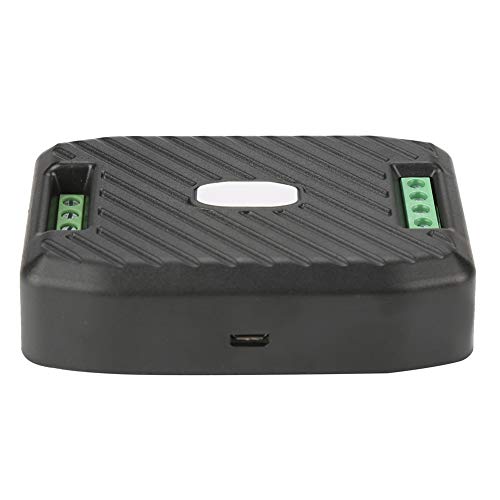

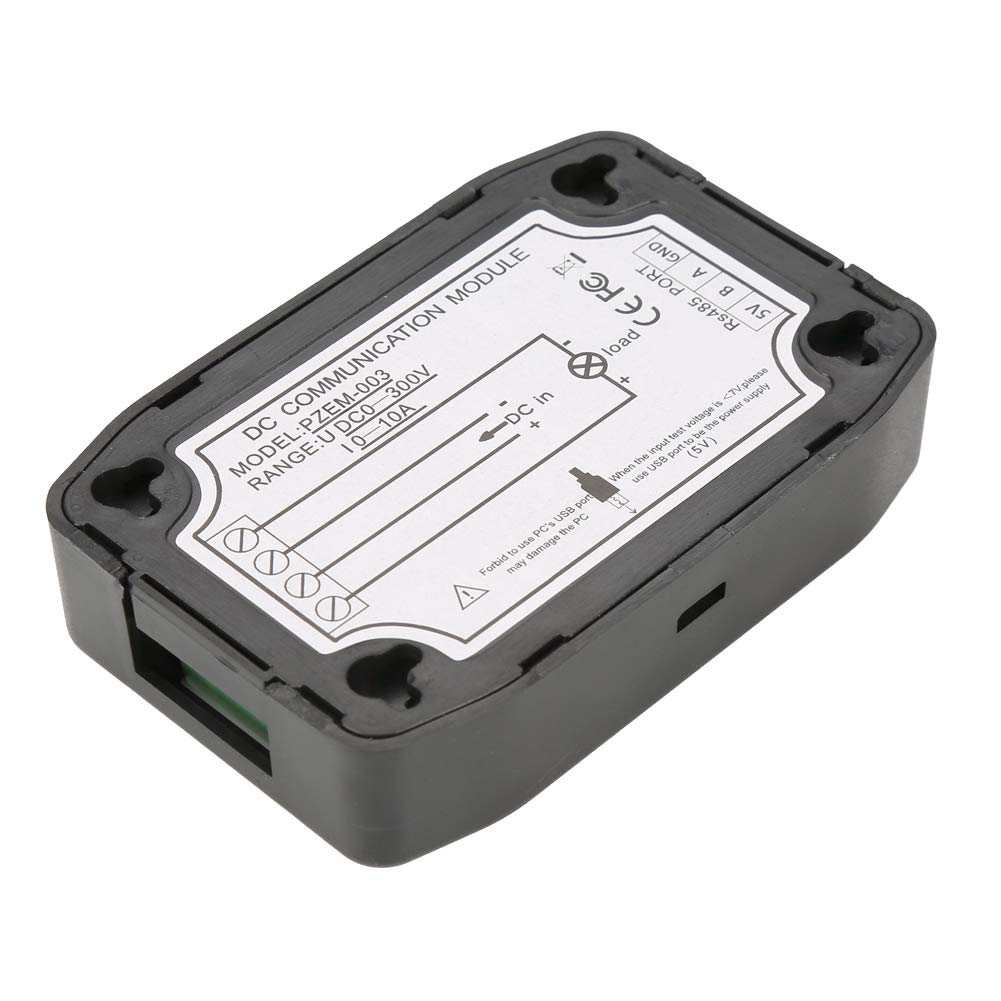

ItemName : DC Voltage Current Power Energy Meter with RS485 Interface ModbusRTU and Alarm for High, Low Voltage Thresholds (PZEM-003+USB to 485 module)
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 13 centimeters
ItemPackageDimensions_Width : 10 centimeters
ItemTypeKeyword : industrial-power-meters
Manufacturer : Hilitand
Material : Copper
ModelName : nineNNpXwPcrds
ModelNumber : Hilitandazhufy1b4x-02
PartNumber : Hilitandazhufy1b4x-02
ProductDescription : Specification:

Brand:
Model: PZEM-003
Voltage:
Measuring Range: 0.05-300V (When the test voltage is ?7V, please use the independent power supply mode)
Resolution: 0.01V
Measurement Accuracy: 1%
Current:
Measuring Range: 0.01-10A
Resolution: 0.01A
Measurement Accuracy: 1%
Power:
Measuring Range: 0.1-3kW
Resolution: 0.1W
Measurement Accuracy: 1%
Energy Consumption:
Measuring Range: 0-9999kWh
Resolution: 1Wh
Measurement Accuracy: 1%
Reset Energy: Use Software to Reset
Over Voltage Alarm:
Default High Voltage Threshold: 300V
Default Low Voltage Threshold: 7V
Communication Interface: RS485 Interface
Working Temperature: -20~60?
Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch
Weight: Approx. 72g~92g / 2.5oz~3.2oz
Description Resolution
Voltage value 1LSB correspond to 0.01V
Current value 1LSB correspond to 0.01A
Power value low 16 bits 1LSB correspond to 0.1W
Power value high 16 bits
Energy value low 16 bits 1LSB correspond to 1Wh
Energy value high 16 bits
High voltage alarm status 0xFFFF is alarm,0x0000 is not alarm
Low voltage alarm status 0xFFFF is alarm,0x0000 is not alarm
Register address Description Resolution
0x0000 High voltage alarm threshold(5~350V), default is 300V 1LSB correspond to 0.01V
0x0001 Low voltage alarm threshold)1~350V), default is 7V 1LSB correspond to 0.01V
0x0002 ModbusRTU address The range is 0x0001~0x00F7
Optional Kit
#1 1 x DC Consumption Meter
#2 1 x DC Consumption Meter 1 x RS485 to USB Cable




ProductSiteLaunchDate : 2024-03-05T17:38:15.898Z
Size : PZEM-003+USB to 485 module
Style : PZEM-003+USB to 485 module
UnitCount : 1
