Specification
Brand : Garosa
BulletPoint1 : [ CONNECTION] Connects to 2.4GHz for fast and accurate real-time energy usage data monitoring through mobile APP.
BulletPoint2 : [MULTI-FUNCTION METER] Measure voltage, current, power factor, a highly practical assistant for energy monitoring in your homes.
BulletPoint3 : [REAL-TIME ENERGY MONITORING] Monitor the actual electricity in your home anytime, anywhere to prevent expensive repairs, save energy, and costs.
BulletPoint4 : [ACCURATE ELECTRICAL MONITORING] Equipped with 3 x 500A sensors, this energy meter can accurately monitor your air conditioning, stove, water heater, washing machine, dryer, etc.

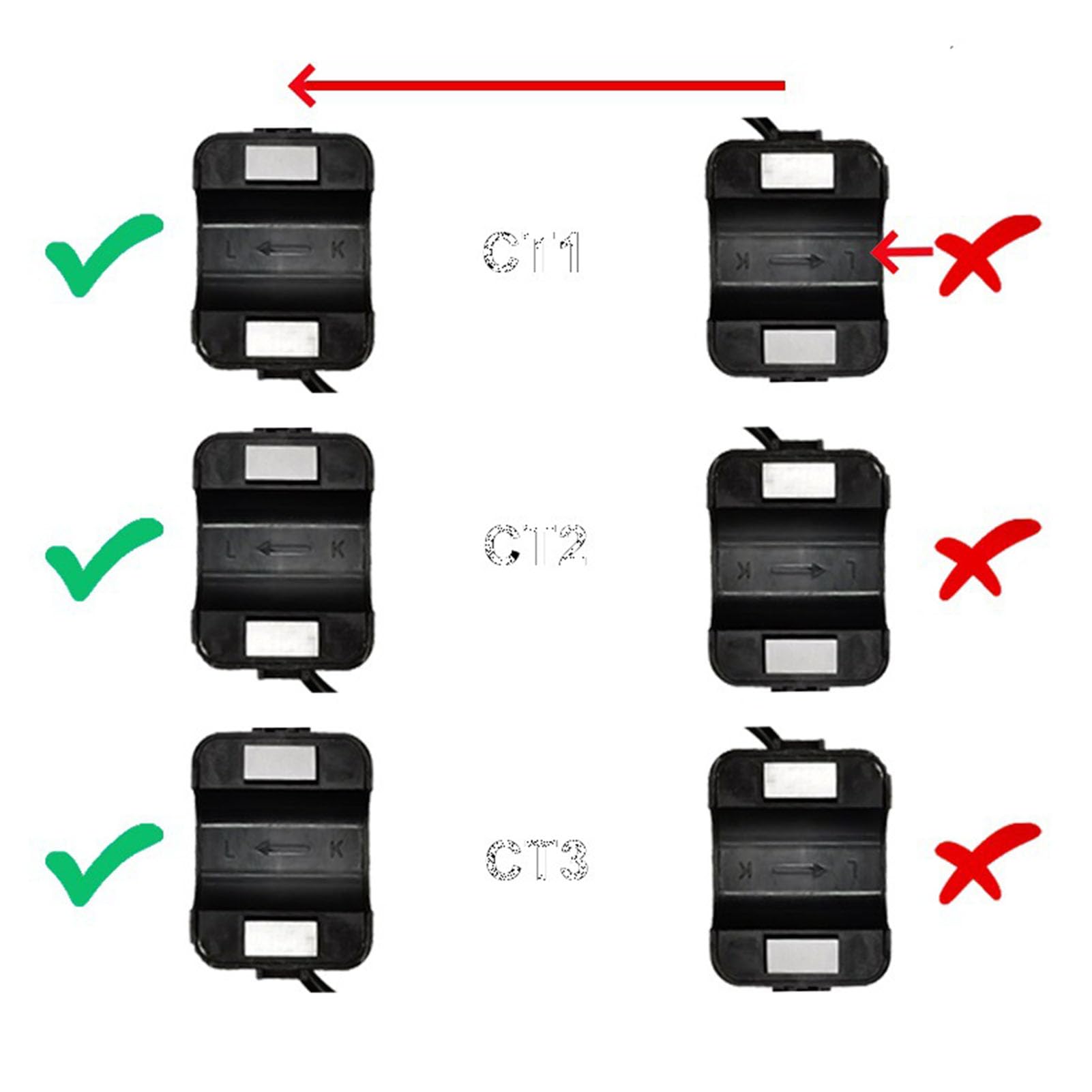

BulletPoint5 : [EASY INSTALLATION & USE] Lightweight power clamp, easy to install. Monitor electricity consumption in the facility by connecting the clamp to the power cord.
Color : Multi
ConnectivityProtocol : X-10
ConnectorType : Usb
CurrentRating : 8 amps
ExternallyAssignedProductIdentifier : 7648244222777
ExternallyAssignedProductIdentifier1 : 814192028076
ExternallyAssignedProductIdentifier2 : 0814192028076
Hazmat : auto-grounding
IncludedComponents : No
InputVoltage : 8 volts

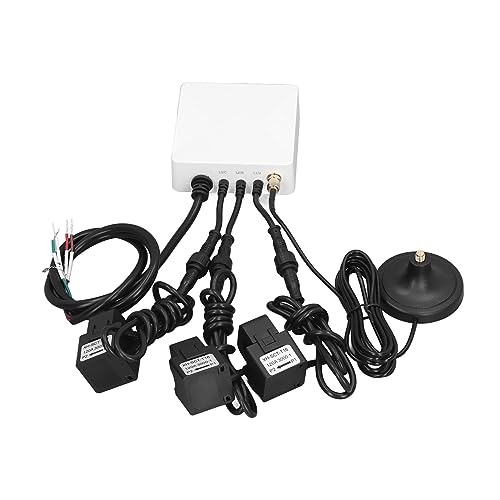

ItemName : 3 Phase Energy Meter, 3 Phase Clamp Meter, Real Time Energy Monitor with 3x500A Circuit Sensors Voltage, Current, Power Factor, Modules
ItemPackageDimensions_Height : 10 centimeters
ItemPackageDimensions_Length : 28 centimeters
ItemPackageDimensions_Width : 26 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-power-meters
Manufacturer : Garosa
Material : Acrylonitrile Butadiene Styrene (ABS)
MaximumSwitchingVoltage : 30 volts
MeasurementAccuracy : 0.1mm
MeasurementSystem : Metric
ModelName : Garosaf1uyo5ihmk
ModelNumber : Garosaf1uyo5ihmk
MountingType : Flush Mount
NumberOfBoxes : 1
NumberOfItems : 1
OperatingVoltage : 600 volts
OperationMode : Automatic
PackageLevel : unit
PartNumber : Garosaf1uyo5ihmk
PowerSourceType : manual
ProductDescription : Specification:
Item Type: Energy Meter
Material: ABS, Metal
Model: PC 321 W 500 TY
: 802.11 B G N20
Operating Frequency: 2.4GHz, external antenna
Output Power: +20dBm
CT Current: 3 x 500A
Connection Voltage: 100-240V
Calibration Measurement Accuracy:
?100W (within ±2W)
>100W (within ±2%)
Temperature: -20? to +55?
Humidity: ?90% non condensing

packing list:
1 x Energy Meter
1 x Antenna
1 x Antenna Base
4 x Accessories
1 x User Manual

Note:
Important Safety Information: The power clamp must be installed and repaired by qualified personnel. During the testing process, do not touch the terminals of the device, and turn off all power to the device before installation. Ensure your safety.

ProductDescription1 :

Package inlcuded:

0-2A Current and 0-30V voltage collector（Please select the version you need）



Description:



Power supply voltage: DC 8-25V(12V recommended);

Operating current: 8-13MA;

MODBUS RTU protocol: 03 read command, 06/16 write command.

Serial port Baud rate: 1200 2400 9600(default) 19200 38400 57600 115200 ,N/E/O,8,1;

By modifying the RS485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater);

Voltage and current values can be read;

Current measurement range: 0~1A, 0~2A, and 0~5A. It is recommended to select a version with a smaller range within the range that meets the measurement;

Voltage measurement range: 0~30V;

Measurement accuracy: 1%. If the read value is too different from the actual value, recalibrate

Size: 72X 47 X 12MM(only board),87X 50X 37MM(with case)

Weight: 23g(board only),68g(with case)

Note:

This product is used to collect small current signals from time to time. If you need a 4-20MA signal collector, please choose the following products: N4AIA04 N46IB02 N43IC04

Note: The module will restore factory settings and restart automatically after 5 seconds of shorting the RES port.

MODBUS RTU protocol please refer to : '' N4VIA02 Modbus RTU''

ProductDescription2 :

For more information, please contact me

DIN rail Box parameters:

Product model: UM72

Color: Green

Width: suitable for PCB board width UM72(72mm)

Insulation grade: flame-retardant VO grade

Backplane length: suitable for 47 mm PCB boards

Net weight: 45g

Installation: DIN35 and C45 rail





Application



PLC IO expansion board

Smart Home,Home Automation ,Wiser Home;

Current and voltage monitoring of industrial control equipment

Security Monitoring

Identification system;

Current and voltage meters

LED Lamp Drivers

Automatic curtain control

Wiring Diagram:

1 Only measure 0-30V voltage signal

2 Only measure 0.04-1/2/5A current signal (the voltage of current signal can be DC 0-110V)

3 Measure voltage and current signal

ProductExpirationType : Does Not Expire
ProductSiteLaunchDate : 2024-05-13T14:10:34.570Z
SpecificationMet : ABS
StreetDate : 2023-01-08T00:00:01Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 41110000
