Specification
Brand : OONO
BulletPoint1 : Outlet: Single 3-prong grounded IEC320 C13 AC receptacles. Reinforced AC receptacle to ensure stability.
BulletPoint2 : Working voltage AC 250V. Receptacle rated current 15Amp(UL CSA) or 10Amp(TUV CCC KC).
BulletPoint3 : Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
BulletPoint4 : Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
BulletPoint5 : DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
BulletPoint6 : UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL CSA TUV CCC certified IEC320 C13 receptacle. UL certified circuit breaker.
Color : Red
CompatibleDevices : IEC320 C13
ExternallyAssignedProductIdentifier : 6954525633622

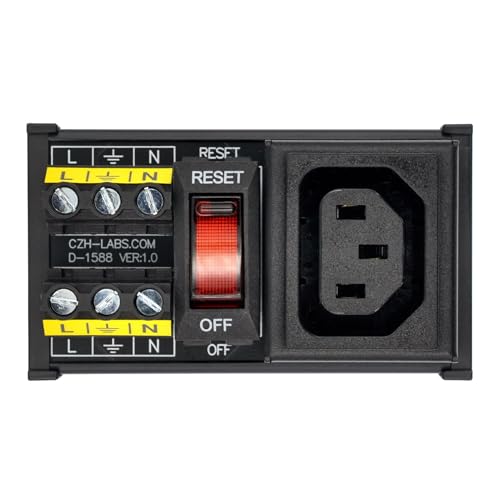

ItemName : DIN Rail Mount AC 250V IEC320 Single C13 Receptacle Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector (D-1588T)
ItemPackageDimensions_Height : 2.12 inches
ItemPackageDimensions_Length : 3.97 inches
ItemPackageDimensions_Width : 2.36 inches
ItemShape : Rectangle
ItemTypeKeyword : electrical-outlets
Manufacturer : CZH-LABS
Material : Copper
ModelNumber : D-1588T
NumberOfItems : 1
PartNumber : D-1588T to D-1591T
ProductDescription : DIN Rail Mount AC 250V IEC320 C13 Single Receptacles Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector. The overload protector has a built-in red indicator light. When the overload protector is working normally, built-in indicator light is on and the receptacle output is normal. When the overload protector is disconnected due to overcurrent, built-in indicator light goes out and the live wire of the receptacle is disconnected. After troubleshooting the overload, you can press the overload protector to RESET position to restore its connection. In addition, by pressing overload protector to RESET or OFF position, you can also manually control all receptacles output ON / OFF.

1, Outlet: Single 3-prong grounded IEC320 C13 AC receptacles. Reinforced AC receptacle to ensure stability.
2, Working voltage AC 250V. Receptacle rated current 15Amp(UL CSA) or 10Amp(TUV CCC KC).
3, Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
4, Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.
5, DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
6, UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL CSA TUV CCC certified IEC320 C13 receptacle. UL certified circuit breaker.

ProductSiteLaunchDate : 2024-06-01T12:25:57.005Z
RecommendedUsesForProduct1 : Industrial
RecommendedUsesForProduct2 : Professional
SupplierDeclaredDgHzRegulation : not_applicable
TotalPowerOutlets : 1
UnspscCode : 39121400
Voltage : 250 volts
