Editorial Review

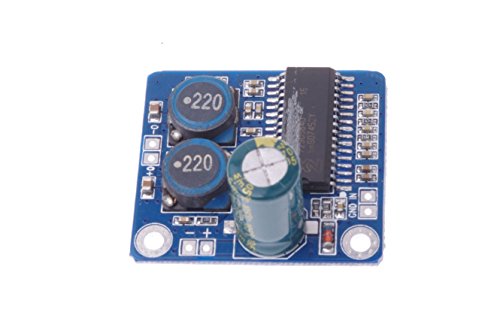

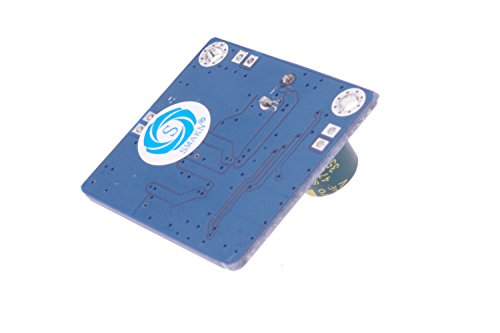

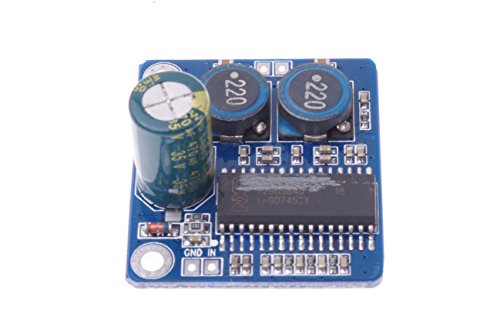

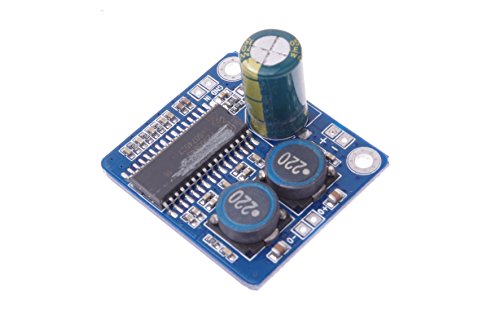

The whole board with SMT machines, infrared reflow soldering, reliable, up to 93% efficiency, low power consumption, heat a small, less than 35W without heatsink. First,the main technical parameters: 1. Supply voltage: DC 12V-24V 2. Output Power: 35W (8 ohm load 22V power supply) 18W (4Ω load 12V power supply) 3. Efficiency:> = 93% 4. Standby current: 150uA 5. Quiescent Current: 50mA 6. SNR: 89dB 7. Total harmonic distortion: 13W / 1KHz / 12V / 4Ω - 0.5% 26W / 1KHz / 22V / 8Ω - 0.5% 35W / 1KHz / 24V / 8Ω - 10% 8. Frequency range: 10Hz-30KHz 9. Input impedance: 30KΩ 10 Output Impedance: 4-8Ω 11. The voltage gain 36dB 12. The amplifier board size: LWH = 37mm * 33mm * 18mm 13. Weight: 9 g Second, the use of note: 1. The power supply voltage limit is 36V, do not exceed this voltage, the positive and negative do not reversed 2. The power supply is recommended for 22V, 2A power supply filter better 3. The speaker recommended 4-8 inch speaker 4. Do not short-circuit the audio output to each other or shorted to ground

Features
1) *Supply voltage: DC 12V-24V
2) *Output Power: 35W (8 ohm load 22V power supply) 18W (4 load 12V power supply)
3) *Efficiency:> = 93%
4) *Amplifier board size: LWH = 37mm * 33mm * 18mm
5) *Weight: 9 g

Specification
Brand : SMAKN
EAN : 0709127318943
Label : SMAKN
Manufacturer : SMAKN
PackageDimensions_Weight : 4.00 hundredths pounds
PackageDimensions : L:5.39 X W:4.02 X H:0.59
ProductGroup : Musical Instruments
ProductTypeName : SOUND_AND_RECORDING_EQUIPMENT
Publisher : SMAKN
Studio : SMAKN
Title : SMAKN TDA2030A 35W DC 12V-24V Mini HiFi super-power digital amplifier board
