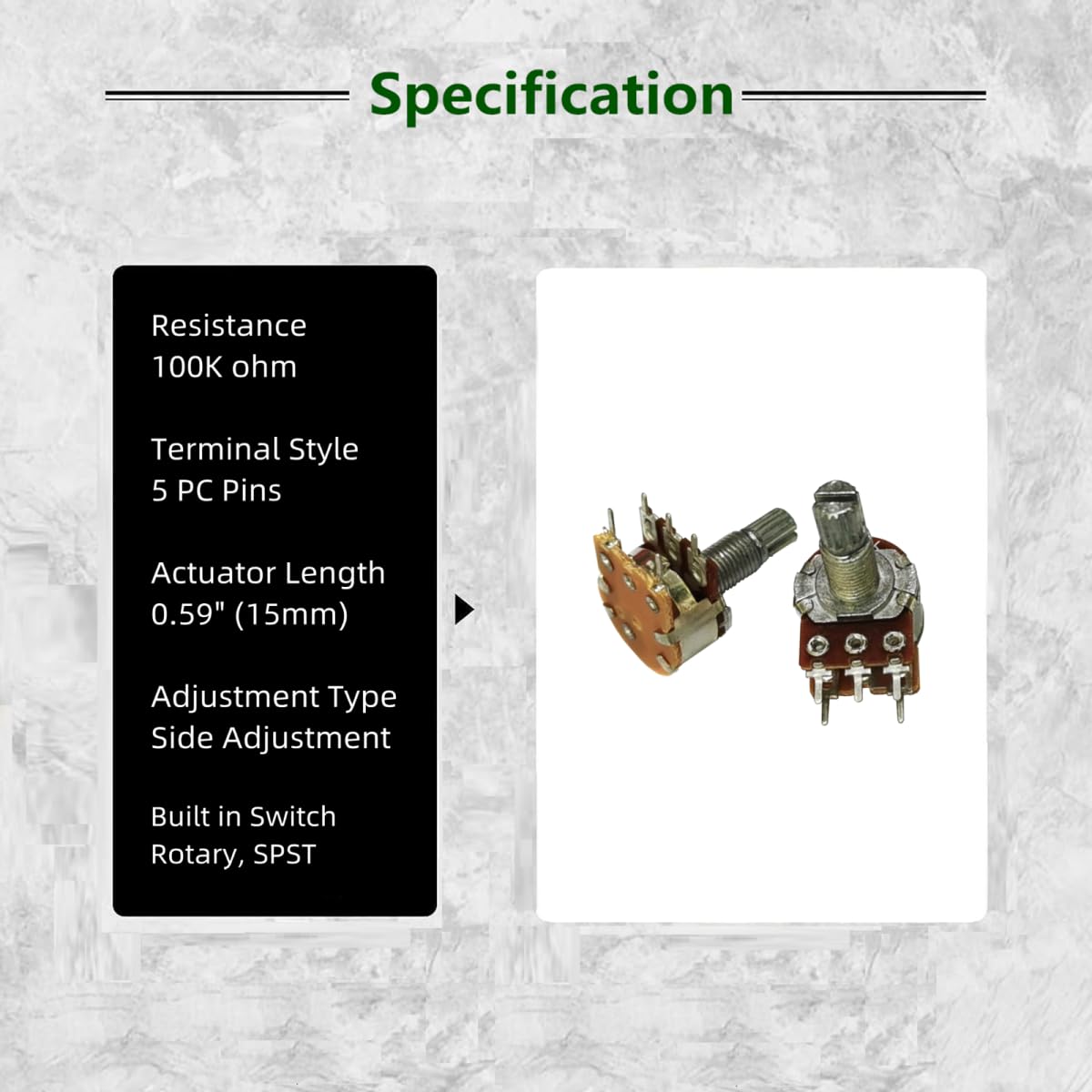

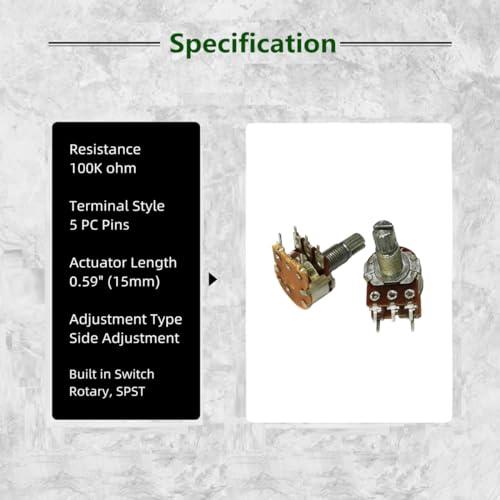

Specification
Brand : ELCOKITEX
BulletPoint1 : Pot Resistance: 100K ohm
BulletPoint2 : Adjustment Type: Side Adjustment
BulletPoint3 : Terminal Style: 5 PC Pins
BulletPoint4 : Actuator Length: 0.59" (15mm)
BulletPoint5 : Built in Switch: Rotary, SPST
Color : Yellow
ExteriorFinish : Plastic
ExternallyAssignedProductIdentifier : 5602528234926
ExternallyAssignedProductIdentifier1 : 0673090671353
ExternallyAssignedProductIdentifier2 : 673090671353
FinishType : Polished
IncludedComponents : copper
ItemName : ELCOKITEX 8Pcs 100K Linear Taper Rotary Audio B Type Potentiometer 15mm Knurled Shaft 5 Pin Carbon Film Potentiometer with Switch for Volume Control Amplifier Audio Applications
ItemPackageDimensions_Height : 18.9992 centimeters
ItemPackageDimensions_Length : 2.3876 centimeters
ItemPackageDimensions_Width : 11.811 centimeters
ItemPackageQuantity : 1
ItemShape : Round
ItemTypeKeyword : potentiometers
Manufacturer : ELCOKITEX
Material : Aluminum
Material1 : Plastic
Material2 : Copper
ModelNumber : 148RP5SP15S-100K
NumberOfItems : 1
PackageLevel : unit
PartNumber : 148RP5SP15S-100K
ProductDescription : Electrical Characteristics
Resistance (Ohms): 100K ohm
Termination Style: 5 PC Pins
Built in Switch: Rotary, SPST
Power (Watts): Curve B: 0.125 W, Other Than B: 0.06 W
Max. operating voltage: Curve B: 200V, Other Than B: 150V
Tolerance: 20%
Taper: Linear
Number of Turns: 1
Adjustment Type: Side Adjustment
Actuator Type: Knurled and Slotted
Actuator Length: 0.59" (15mm) Actuator length is the distance traveled when turning the actuator
Actuator Diameter: 0.236" (6mm)
Size - Body: Round - 0.669" Dia (17mm)
Bushing Thread: M7 x 0.75
Resistive Material: Carbon
Mounting Type: Panel Mount
Residual Resistance:
R > = 250K ohm, 0.1% max. of total resistance
250K ohm > R > 10K ohm, 20 ohm max.
10K ohm > = R, 10 ohm max.
Insulation Resistance: more than 100M ohm at DC 500V
Number of Gangs: 1
Gang Error: -40 ~ 0 dB < = 3 dB (specialty: -60 ~ 0 dB < = 1.5dB)

Mechanical Characteristics
Total Rotational Angle: 300 Centigrade + - 5 Centigrade
Rotational Torque: 20~200gf.cm
Rotation Stopper Strength: 7kgf.cm
Push Pull Strength: 7kgf

Application
Widely used for guitars, mixers, amplifiers, governors, videos, loudspeakers, lamps, microwave ovens robotics, photographic lenses, computer input devices such as trackballs etc. Suitable for volume control in audio applications, Industrial controls, lamp dimming controls, speed controls, temperature controls, controlled stress rheometers, and rotating radar platforms, DIY experiments.

Package Content
8Pcs WH148 Potentiometers + 8Pcs Nuts + 8Pcs Washers
ProductSiteLaunchDate : 2023-09-20T09:02:23.090Z
Size : 5p / 15mm / side adj / pc pin
Style : 100K
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 10
UnspscCode : 32101500
Voltage : 50 volts
Wattage : 0.1 watts
