Specification
Brand : AllGIFT
BulletPoint1 : This encoder features a code with a switch, allowing for precise adjustment in a 360-degree range. The switch enables convenient control and operation.
BulletPoint2 : With a total of 20 pulses, this encoder provides accurate feedback during rotation. It is equipped with 5 working signal pins that facilitate reliable communication and signal transmission.
BulletPoint3 : The encoder has a compact size with a shaft diameter of 6mm/0.24"" and a shaft height of 15mm/0.59"". It also features a thread diameter of 6.8mm/0.27"". The overall dimensions are 15mm x 12.5mm x 25mm / 0.59"" x 0.49"" x 1.0"" (LWH). This design allows for easy integration into various applications.
BulletPoint4 : In forward rotation, the A line phase leads the B line phase, while in reverse rotation, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be easily identified using a simple digital logic circuit, such as an exclusive OR gate and D flip-flop.
BulletPoint5 : This encoder finds applications in industrial control, robots, photographic lenses, computer input devices, circuit board design dimming,3D printers, LCD displays, and more. Its versatility makes it suitable for various electronic and mechanical systems that require precise adjustment and control.
ExternallyAssignedProductIdentifier : 5060971144528
ExternallyAssignedProductIdentifier1 : 0608559692174
ExternallyAssignedProductIdentifier2 : 608559692174
IncludedComponents : 1 potentiometer, 1 washer, 1 nut

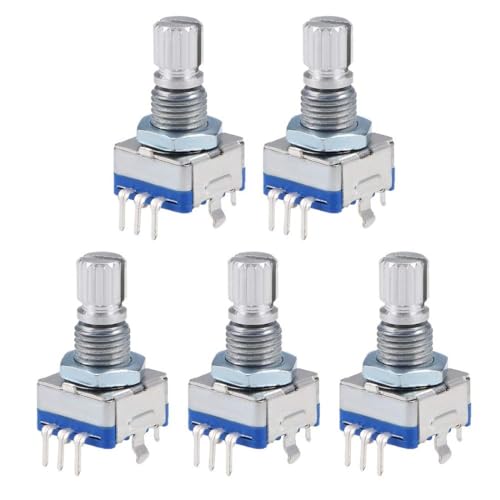

ItemName : AllGIFT 360 Degree Rotary Encoder Code Switch Digital Potentiometer 15mm Shaft EC11 5 Pins(5pcs)
ItemPackageDimensions_Height : 2 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : potentiometers
Manufacturer : AllGIFT
Material : lead
ModelNumber : A10K
NumberOfItems : 1
PartNumber : FEBC2G40-SET5/D9UTC
ProductDescription :

100% brand new and high-quality product.

Product Name:Encoder code with Switch

Material:lead

Color:As Picture Show

Quantity:2/5/10

Features:

This encoder features a code with a switch, allowing for precise adjustment in a 360-degree range. The switch enables convenient control and operation.

With a total of 20 pulses, this encoder provides accurate feedback during rotation. It is equipped with 5 working signal pins that facilitate reliable communication and signal transmission.

The encoder has a compact size with a shaft diameter of 6mm/0.24"" and a shaft height of 15mm/0.59"". It also features a thread diameter of 6.8mm/0.27"". The overall dimensions are 15mm x 12.5mm x 25mm / 0.59"" x 0.49"" x 1.0"" (LWH). This design allows for easy integration into various applications.

In forward rotation, the A line phase leads the B line phase, while in reverse rotation, the B line phase leads the A line phase. The phase relationship and number of rotations of AB can be easily identified using a simple digital logic circuit, such as an exclusive OR gate and D flip-flop.

This encoder finds applications in industrial control, robots, photographic lenses, computer input devices, circuit board design dimming,3D printers, LCD displays, and more. Its versatility makes it suitable for various electronic and mechanical systems that require precise adjustment and control.

Notice:

1. Colors may be slightly different for different monitors.

2. Please allow some manual measurement errors, thank you for your understanding.

Package included:2/5/10 Encoder code with Switch

ProductSiteLaunchDate : 2024-04-10T06:41:54.096Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122200
