Specification
Brand : QTSEGSEE
BulletPoint1 : Industrial Motors
BulletPoint2 : Nema 23 Integrated Servo Motor 130W 0.45Nm with Driver 3000RPM 20-50VDC Brushless DC Servo Motor - Short Shaft
Color : One Color
ExternallyAssignedProductIdentifier : 9010064268323
ItemName : Nema 23 Integrated Servo Motor 130W 0.45Nm with Driver 3000RPM 20-50VDC Brushless DC Servo Motor - Short Shaft
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : pneumatic-motors
Manufacturer : QTSEGSEE
ModelName : QTSEGSEE
ModelNumber : QTSEGSEE
NumberOfItems : 1
PartNumber : QTSEGSEE
ProductDescription : Industrial Motors
introduce

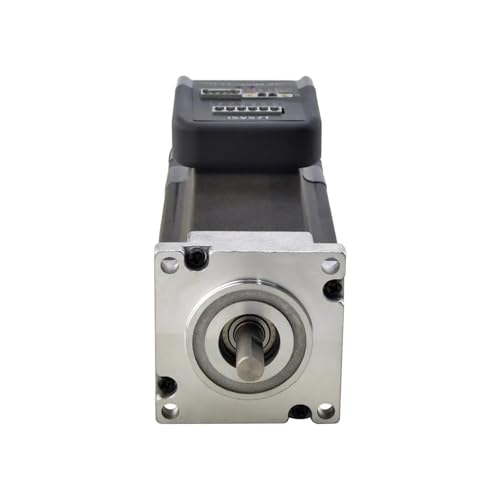

The ISV57T-130S integrated servo motor is a 57mm frame size brushless motor with an integrated 16-bit encoder and servo driver. The ISV57T-130S is very compact in size and all components are integrated to save installation space, eliminate encoder connection and motor wiring time, reduce interference, and reduce cable and labor costs. Integrated compact size saves installation space, setup time and reduces disruption
feature
Input voltage 2050VDC, output peak current 0-6A
Step and direction command input for position control
Installation dimensions compatible with stepper motors
The motor runs smoothly and has excellent response time
Pulse direction isolated control input
Positioning and fault output to external motion controller for complete system control
Overvoltage, overcurrent, position error protection
Manufacturer Part Number: ISV57T-130S
Rated power (W): 130
Input voltage: +20~50VDC (typical 36VDC)
Rated torque (Nm/oz.in): 0.45/63.73
Peak torque (Nm/oz.in): 1.1/155.8
Rated speed (rpm): 3000
Peak speed (rpm): 4000
Output peak current: 0~6A
Logic signal current: 7~16mA (typically 10mA)
Pulse input frequency: 0～300kHz
Pulse voltage: 5V (if it is 24V, a 2K ohm resistor needs to be connected in series)
Isolation resistance: 100M
Frame size: 57 x 57mm
Body length: 128mm
Shaft diameter: 8mm

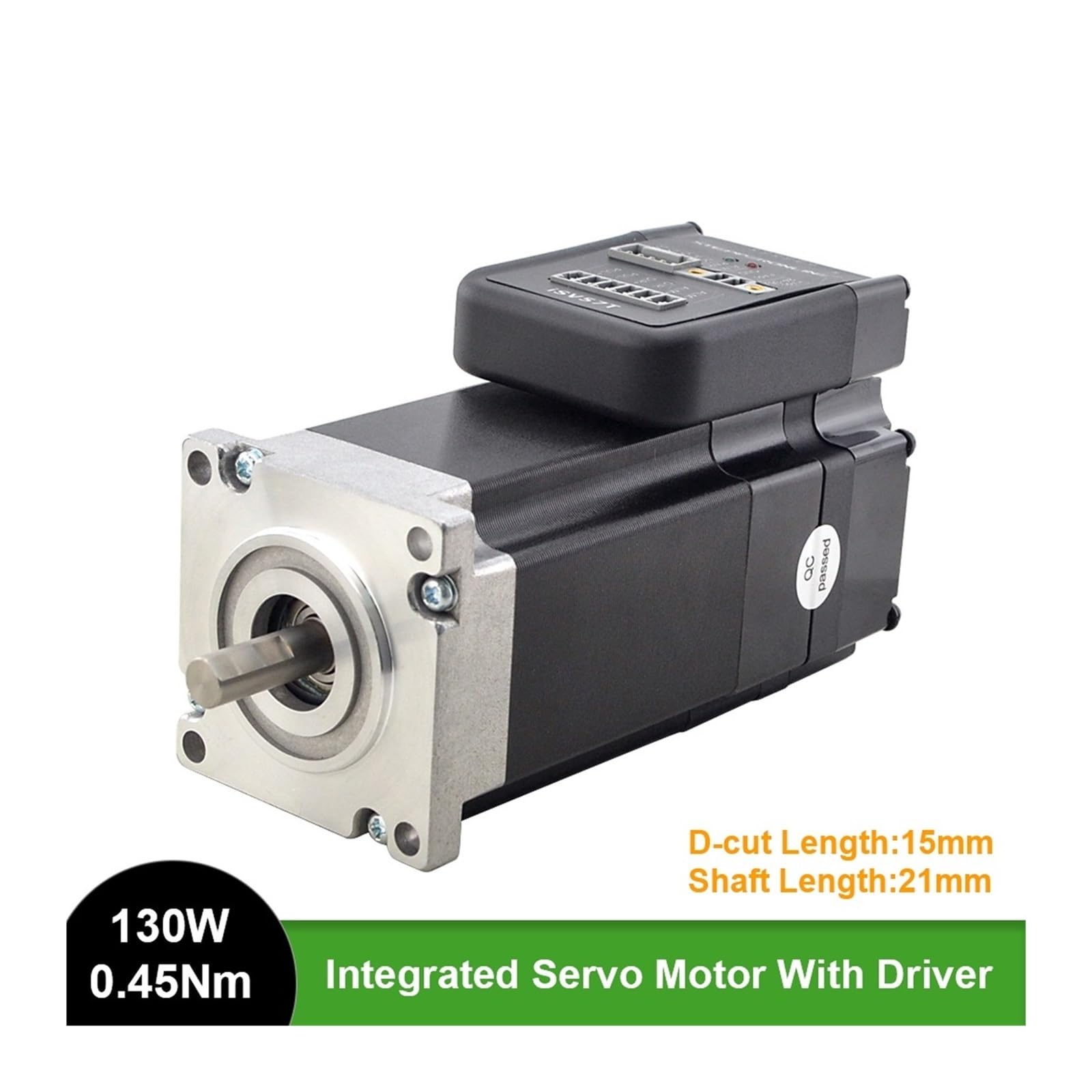

Type D cutting shaft length: 15 mm
Shaft length: 21mm
Weight: 1.25kg
Cooling method: natural cooling or forced cooling
Environment: Avoid dust, oil mist and corrosive gases
Ambient temperature: 0-40
Humidity: 40%RH-90%RH
Operating temperature (radiator): 70Max
Vibration: 10-50Hz/0.15mm
Storage temperature: -20~65
Connectors and pin assignments
232 Communication cable connection
Note 1: The 232 communication port is not isolated. Please use an isolated power supply for ISVxxx when using it.
The seri
ProductSiteLaunchDate : 2024-10-21T03:38:12.121Z
Size : One Size
UnitCount : 1
UnspscCode : 26111500
