Specification
Brand : QTSEGSEE
BulletPoint1 : Industrial Motors
BulletPoint2 : 90W Nema 23 Integrated Servo Motor with Driver 3000RPM 0.3Nm 20-50VDC Brushless DC Servo Motor and Driver
Color : One Color
ExternallyAssignedProductIdentifier : 9010064268361
ItemName : 90W Nema 23 Integrated Servo Motor with Driver 3000RPM 0.3Nm 20-50VDC Brushless DC Servo Motor and Driver
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : pneumatic-motors
Manufacturer : QTSEGSEE
ModelName : QTSEGSEE
ModelNumber : QTSEGSEE
NumberOfItems : 1
PartNumber : QTSEGSEE
ProductDescription : Industrial Motors
introduce

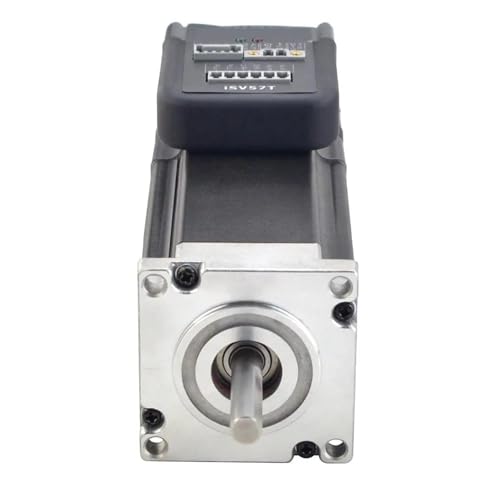

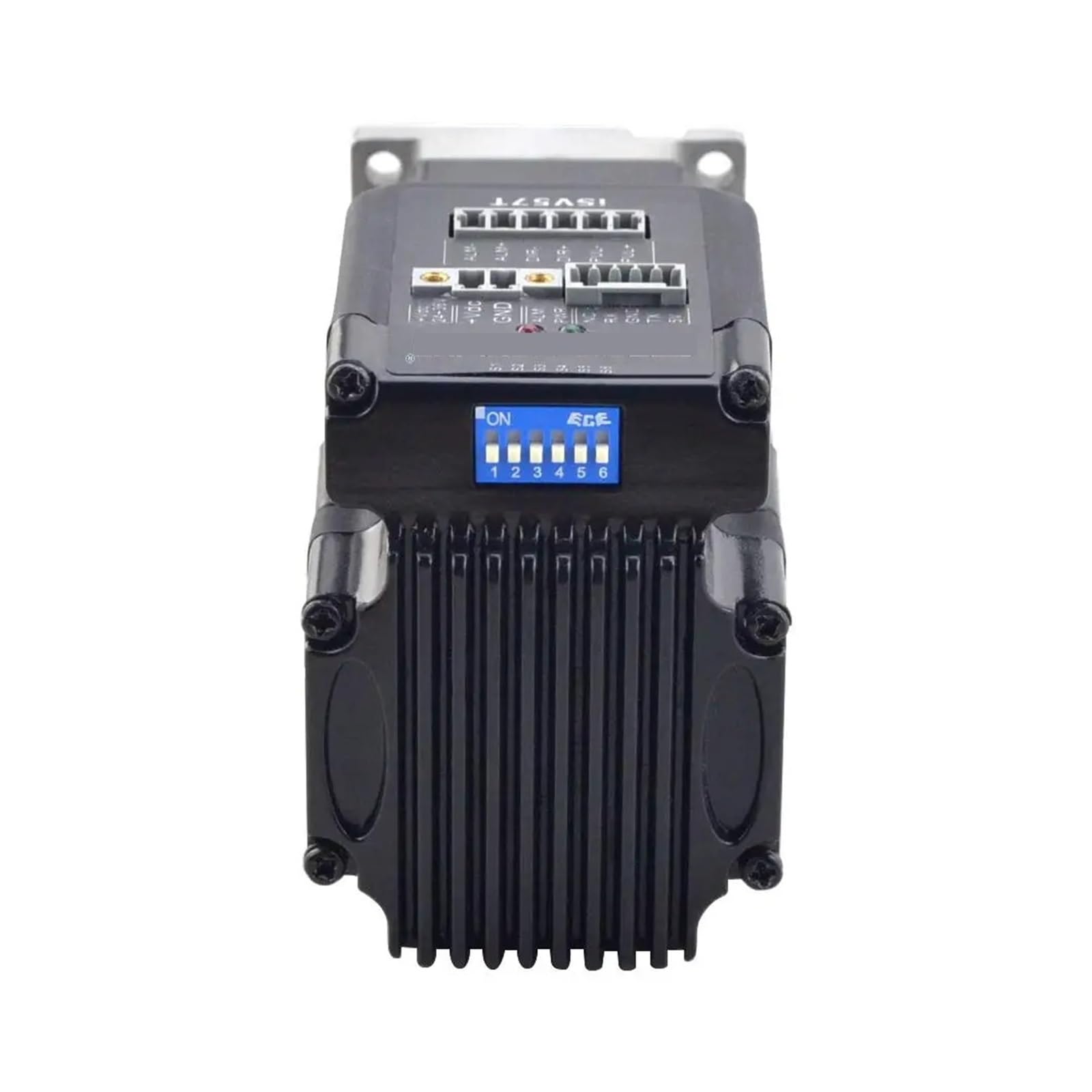

The ISV57T-090 integrated servo motor is a 57mm frame size brushless motor with an integrated 16-bit encoder and servo driver. The ISV57T-090 is very compact in size and all components are integrated, saving installation space, eliminating encoder connection and motor wiring time, reducing interference, and reducing cable and labor costs. Integrated compact size saves installation space, setup time and reduces disruption
feature
Step direction command input for position control
Installation dimensions compatible with stepper motors
The motor runs smoothly and has excellent response time
Pulse direction isolated control input
Positioning and fault output to external motion controller for complete system control
Overvoltage, overcurrent and position error protection
Manufacturer Part Number: iSV57T-090
Rated power (W): 90W
Input voltage: +20~50VDC (typical 36VDC)
Rated torque (Nm/oz.in): 0.3/42.49 (Nm/oz.in)
Peak torque (Nm/oz.in): 0.9/127.47 (Nm/oz.in)
Rated speed (rpm): 3000rpm
Peak speed (rpm): 4000rpm
Output peak current: 0~6A
Logic signal current: 7~16mA (typically 10mA)
Pulse input frequency: 0～300kHz
Pulse voltage: 5V (if it is 24V, a 2K ohm resistor needs to be connected in series)
Isolation resistance: 100M
Frame size: 57 x 57mm
Body length: 108mm
Shaft diameter: 8mm
Type D cutting shaft length: 27 mm
Shaft length: 33mm
Weight: 0.95kg
Cooling method: natural cooling or forced cooling
Environment: Avoid dust, oil mist and corrosive gases
Ambient temperature: 0-40
Humidity: 40%RH-90%RH
Operating temperature (radiator): 70Max
Vibration: 10-50Hz/0.15mm
Storage temperature: -20~65
Connectors and pin assignments
232 Communication cable connection
Note 1: The 232 communication port is not isolated. Please use an isolated power supply for ISVxxx when using it.
The serial port of the PC is n
