Specification
Brand : NSI
BulletPoint1 : Applications: Pole Lanterns, Lawn Lighting, Walkways
BulletPoint2 : Conformal coated cadmium supplied photocell resists effects of moisture and airborne contaminants Photocell responds to the light spectrum near to that of a human eye
BulletPoint3 : Delay up to two minutes to prevent false switching due to light from passing vehicles, lightning, etc
BulletPoint4 : Meets ANSI/UL773A
BulletPoint5 : Flush mounting through 6875" hole in post lantern or lighting fixture, 3/8" NPT, stem 3/4" long Gasket and nut supplied Control housing is weather-resistant molded Lexan with ultrasonically welded seams
BulletPoint6 : FAST RESPONSE CAPABILITY: <20ms and Meets International Electrotechnical Society IEC61496-1/2 standard, designed according to European standards, and has passed CE certification. Built-in amplifier, using modulated light source, programming synchronous scanning mode, strong resistance to external interference, easy to install.
Color : Green
ConnectivityProtocol : X-10
ConnectivityTechnology : Infrared
ConnectorType : Usb
ExternallyAssignedProductIdentifier : 4548583416642
ExternallyAssignedProductIdentifier1 : 786261600264
ExternallyAssignedProductIdentifier2 : 0786261600264
ExternallyAssignedProductIdentifier3 : 00786261600264
InternationalProtectionRating : IP54

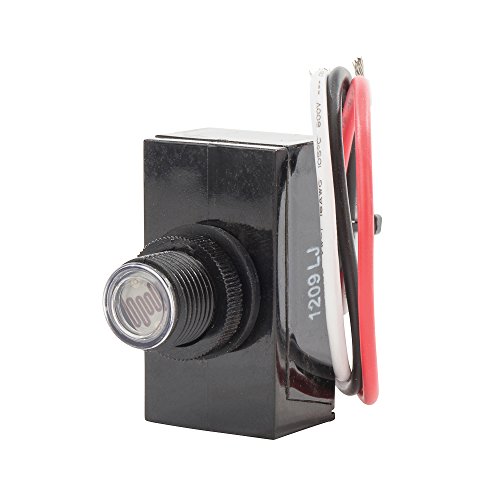

ItemName : NSi Industries 3006 SPST Flush Mounting Lexan Housing Photocontrol, 347V (Pack of 1)
ItemPackageDimensions_Height : 3.302 centimeters
ItemPackageDimensions_Length : 8.636 centimeters
ItemPackageDimensions_Width : 5.588 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-photoelectric-sensors
LightColor1 : Red
LightColor2 : Green
Manufacturer : NSi Industries
Material : cadmium
ModelNumber : 3006
MountingType : PCB Mount
NumberOfItems : 1
NumberOfLightSources : 16
PartNumber : 3006
PowerSourceType : Corded Electric
ProductDescription : [Sensing method] Distance-setting
[Sensing distance] 5 mm to 500 mm
[Setting range] 50 to 500mm
[Differential distance] 10% Max. of setting distance
[Reflectivity characteristic (black-white error)] 10% Max. of setting distance
[Light source] Infrared LED (Emission wave length: 860nm)
[Power supply voltage] 10 to 30 VDC (ripple(p-p) 10% included)
[Current consumption] 50mA DC Max.
[Control output (Output type)] NPN/PNP open collector output
[Load current: 0 to 100 mA
[Residual voltage: (DC) 1.2 V Max. (NPN output, Load current 100mA Max.),(DC) 2 V Max. (PNP output, Load current 100mA Max.)
[Operation mode] Light-ON/Dark-ON selectable
[Load power supply voltage] 30 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
Mutual interference prevention
[Response time] 2ms Max.
[Sensitivity setting] 6-turn endless adjustment (with indicator)
[Ambient illuminance] Incandescent lamp:5000 lux Max., Sunlight:10000 lux Max.
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Conformed standard iEC Directive iCE markingjj] Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Light indicator(orange), Stability indicator(green)
[Weight] Approx. 170 g
[Tightening torque] 1.2 N.mMax. iwith M4 screwj
[Accessories] Instruction manual, Mounting bracket, Adjustment driver, Hexagon bolt M4*12(with Spring washers, Flat washers)


(1)
ProductSiteLaunchDate : 2015-05-06T19:42:50.946Z
SpecificationMet : RoHS
Style : Modern
SupplierDeclaredDgHzRegulation : unknown
SupplierDeclaredDgHzRegulation1 : not_applicable
SupplierDeclaredDgHzRegulation2 : not_applicable
SupplierDeclaredDgHzRegulation3 : not_applicable
SupplierDeclaredDgHzRegulation4 : not_applicable
SupplierDeclaredDgHzRegulation5 : not_applicable
Theme : Objects
UnitCount : 1
