Specification
Brand : CGOLDENWALL
BulletPoint1 : Ultra-thin Safety Light Curtains safety protection sensor light
BulletPoint2 : 1.Super anti-electromagnetic radiation interference to deal with electromagnetic radiation in a complex environment;
BulletPoint3 : 2. Automatic adjustment between 0.2 and 2 meters ,10mm, 20mm pitch, protection height from 100mm to 620mm height selection
BulletPoint4 : 3. 12mm ultra-thin body design space is small, suitable for automation equipment, etc.
BulletPoint5 : 4.light curtain protection device emits infrared light, resulting in a protective screens. When the light curtain is blocked, the device emits a blackout signal and control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security.
ExternallyAssignedProductIdentifier1 : 0826066862204
ExternallyAssignedProductIdentifier2 : 826066862204
ItemName : CGOLDENWALL 12mm Ultra-thin Safety Light Curtains Light Screen Infrared Sensor Safety Grating Punching Machine Protector Photoelectric protector Beam pitch:10mm (Beams: 16,Sensing height: 150mm)
ItemPackageDimensions_Height : 11 centimeters
ItemPackageDimensions_Length : 0.8 centimeters
ItemPackageDimensions_Width : 7 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : electronic-component-photoelectric-sensors
Manufacturer : CGOLDENWALL
Material : Lead
Material1 : Metal
Material2 : Metal
Material3 : Metal
Material4 : Metal
Material5 : Metal
MaximumRange : 2 meters
ModelNumber : GP1A53HRJ00F
NumberOfItems : 2
PartNumber : CNA 944A
ProductDescription : Parameters Product
Working power supply: transistor output (100mA)
Maximum output current: 100mA (transistor output
Power consumption: <3W
Operating temperature: -10 ° C ∽ 55 ° C
Ambient humidity: 20 ° C, RH ≤ 95% (no condensate)
Response time: 3ms ∽ 18ms
Insulation resistance: >100MΩ
Dielectric strength: AC1500V, 60s
Emission source: infrared, 940nm
Housing material: sensor: aluminum alloy
Protection level: sensor: IP60
Optical axis spacing: 10mm

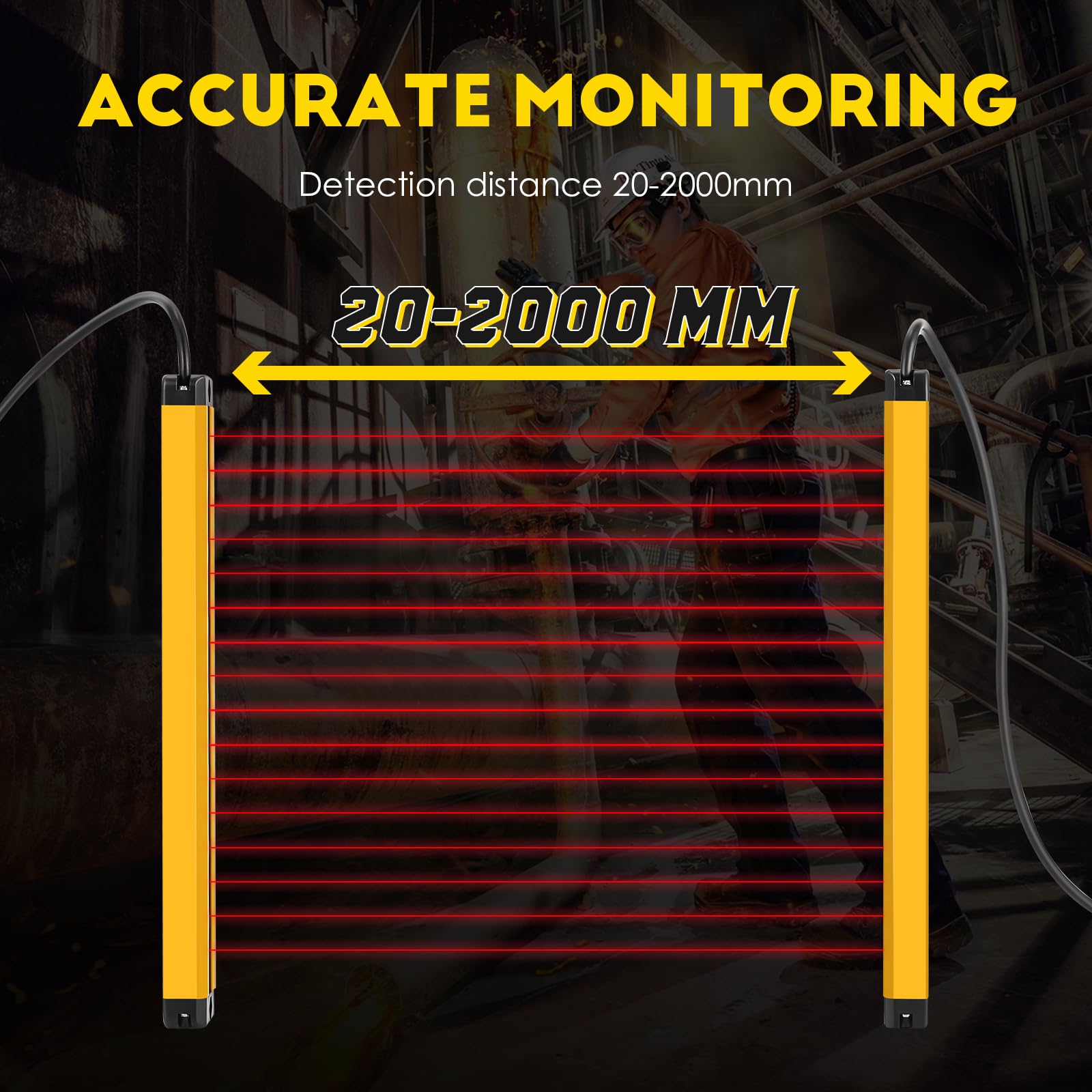

Detection distance: 20∽2000mm
Protection height: protection height H=(xx-1)X optical axis spacing, xx is the number of beams

Feature
(1), performance Stable, output powerful, and reliable safe < br > (2), it is suitable for paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, such as security monitoring, can be reliably protect the safety of persons or objects. < br > (3), light curtain protection device emits infrared light, resulting in a protective screens. When the light curtain is blocked, the device emits a blackout signal and control potentially dangerous machinery and equipment stops working, or an alarm signal, control and alarm devices to achieve the purpose of security.

ProductSiteLaunchDate : 2014-05-01T07:00:00.000Z
Size : Beams: 16,Sensing height: 150mm
SupplierDeclaredDgHzRegulation : not_applicable
