Specification
Brand : POCREATION
BulletPoint : Relays
BulletPoint1 : Built-in Display: The device features a built-in LCD Chinese display that shows the voltage value, fault status, and setting parameters.The device can be customized to adjust the over-voltage value and action time as per the specific requirements.
BulletPoint2 : Multiple Reset Modes: The Over-voltage Under-voltage Relay provides three reset modes - manual, automatic, and automatic with power-on delay, which allows users to choose the right mode according to their preference.
BulletPoint3 : Multiple Reset Modes: The Over-voltage Under-voltage Relay provides three reset modes - manual, automatic, and automatic with power-on delay, which allows users to choose the right mode according to their preference.
BulletPoint4 : Built-in Display: The device features a built-in LCD Chinese display that shows the voltage value, fault status, and setting parameters.The device can be customized to adjust the over-voltage value and action time as per the specific requirements.
BulletPoint5 : Fault Recording Function: The device has a fault recording function, which helps identify the issue in case of a fault.The output test function enables users to test the device's performance before actual use.The device comes with 1 CO and 1 NC contacts, which ensures over-voltage and under-voltage .
Color : White
ConnectorType : Clamp
CurrentRating : 5 amps
ExternallyAssignedProductIdentifier : 9170048031821
ExternallyAssignedProductIdentifier1 : 4011209642249
ExternallyAssignedProductIdentifier2 : 04011209642249
ExternallyAssignedProductIdentifier3 : 9305500602343

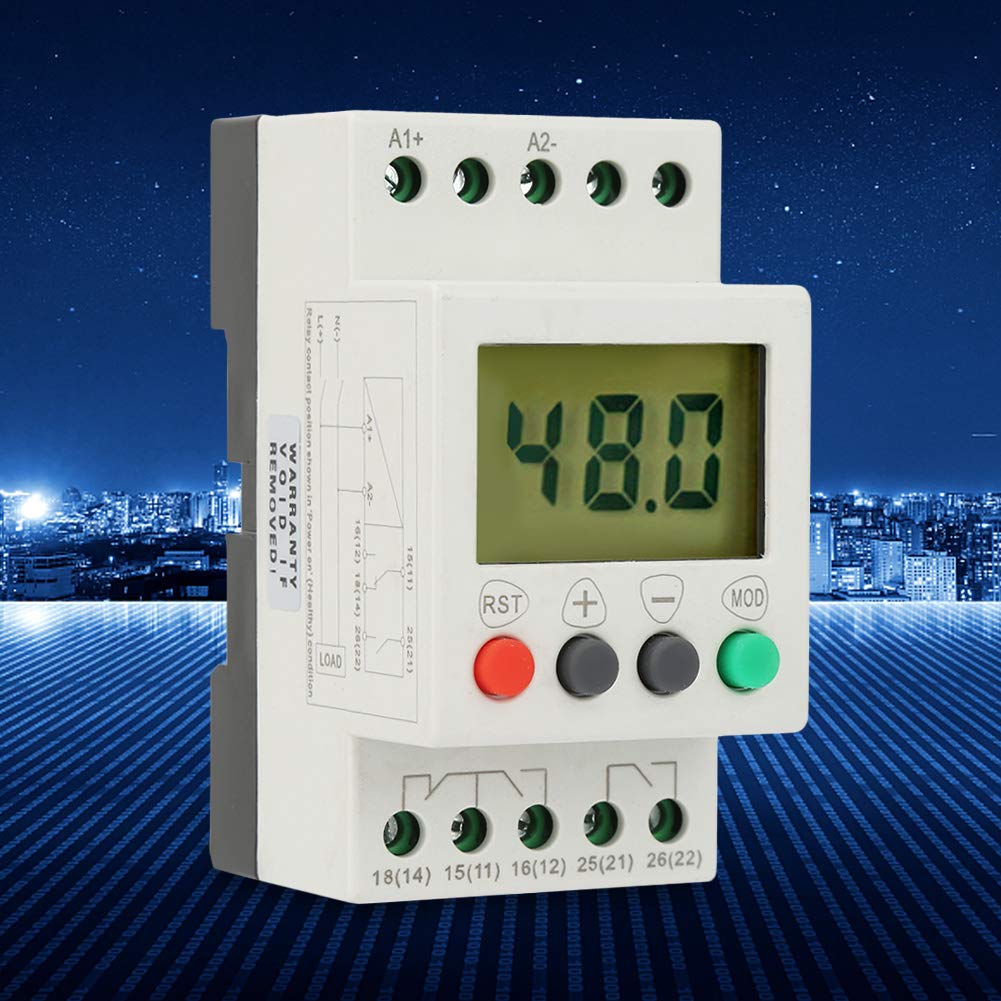

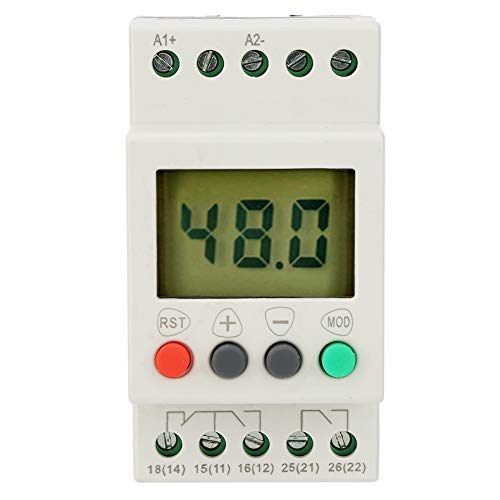

ItemName : Relay,SVR1000 Single Phase Over Voltage Under Voltage Relay Single Phase Relay for Industrial Control System (AD48)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 9 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : phase-monitoring-relays
Manufacturer : POCREATION
Material : Copper
MaximumSwitchingCurrent : 5 amps
MeasurementSystem : Metric
ModelName : POCREATION3sz7bpixm9-02
ModelNumber : POCREATION3sz7bpixm9-02
MountingType : din_rail
NumberOfItems : 1
OperationMode : Automatic
PackageLevel : unit
PartNumber : POCREATION3sz7bpixm9-02
ProductDescription : Specification:

Model: SVR1000/AD48
Optional Type: D12, AD48, AD220
Monitoring Circuit: L(+),N(-)
Rated Voltage: AC/DC 24V-48V 50/60Hz
Function: Over-voltage, Under-voltage
Over-voltage Adjustment Range: AC/DC 20V-80V,OFF
Under-voltage Adjustment Range: AC/DC 0.1V-30V
Over-voltage / Under-voltage Action Range: 0.1-999s
Reset Mode: manual, automatic, automatic with power-on delay
Reset Time: 0.1-999s
Display: Chinese LCD
Form: 1 CO & 1NC
Capacity: 6A 250VAC
Size: Approx. 80*43*54mm/3.1*1.7*2.1in
Installation: 35mm Rail
Typical Application Scope: electric motor, blower, , air compressor, crane, travelling crane, lifter, elevator, machine tool, central air-conditioning, refrigeration equipment, equipment, industrial control system

Package List:
1 * Over-voltage Under-voltage Relay

ProductSiteLaunchDate : 2023-12-23T00:00:00.000Z
Size : AD48
SpecificationMet : Compliant
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40000000
Wattage : 1000 watts
