Specification
Brand : LUCKDANO
BulletPoint1 : [PHASE ] Features phase sequence and phase error
BulletPoint2 : [CLEAR DISPLAY] Green LED power indicator and red LED output relay indicator
BulletPoint3 : [] Mechanical lifespan of 1x10^7 ensures longevity
BulletPoint4 : [EASY INSTALLATION] Mount on a 35mm DIN rail for easy installation
BulletPoint5 : [LIGHTWEIGHT] Weighs about 78g (2.7 ounces) for convenient handling
CurrentRating : 5 amps

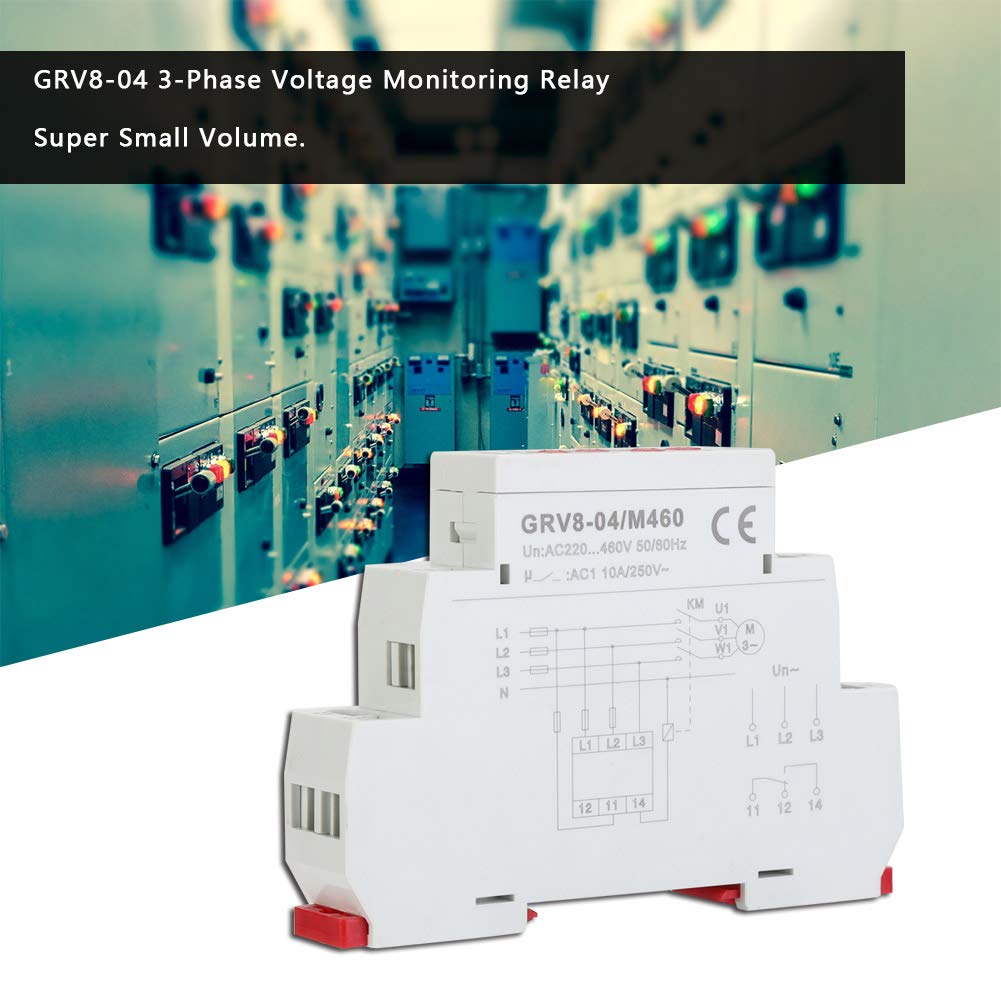

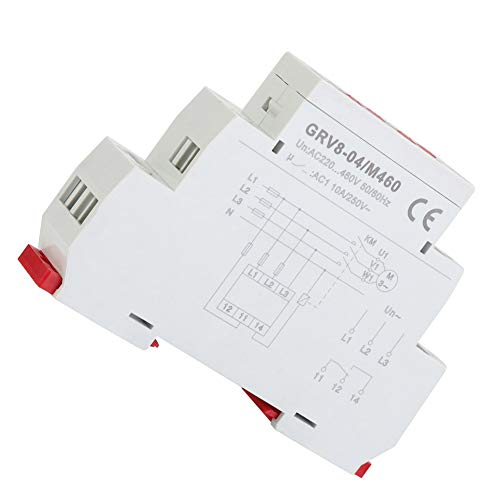

ItemName : 3-Phase Relay with 1% Accuracy, Refrigerated Vehicle, Phase Sequence Monitoring
ItemPackageDimensions_Height : 3 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 8 centimeters
ItemTypeKeyword : phase-monitoring-relays
Manufacturer : LUCKDANO
MaximumSwitchingCurrent : 5 amps
MeasurementSystem1 : Imperial
MeasurementSystem2 : Metric
ModelName : LUCKDANOzenskdxh8m
ModelNumber : LUCKDANOzenskdxh8m
OperationMode : Automatic
PartNumber : LUCKDANOzenskdxh8m
ProductDescription : 1. This relay can monitor its own working voltage (true RMS measurement).
2. 8 kinds of adjustable rated voltage.
3. The accuracy of voltage measurement is not more than 1%.
4. The working status of the relay is shown by LED indicators.
5. With its extremely small volume, this relay can be mounted on a 35mm DIN rail.

Technical dataification:
Characteristics:
4. The operating status of the relay is displayed by LED indicators.
5. With its extremely small volume, this relay can be mounted on a 35mm DIN rail.
6. Application: Equipment and control (tower crane, elevator, agricultural equipment, refrigerated vehicles); equipment from reversing. normal/emergency switch; against phase interruption of a dynamic load.

Technical dataification:
Monitoring terminal: L1-L2-L3
Current: L1-L2
Rated power frequency: 45Hz-65Hz
Measuring range: 176V-552V
Power on delay time: 0.5s
Wrath Attunement Accuracy: 10%
Recovery time: 1 s
Temperature fluctuation error: 0.05%/°C, at=20°C
Output: 1 x SPDT; 10A/AC1; 250VAC/24VDC
Minimum switching power: 500 mW
Overvoltage: 2%-20%
Undervoltage: -20%-2%
Action delay time: 0.1-10s adjustable
Phase sequence : Yes
Phase fault : Yes
Power indicator: Green LED
Output relay display: Red LED
Mechanical life: 1x107
Mounting methods: 35mm DIN rail mounting
Installation altitude: ≤ 2000m
Weight approx. 78g/2.7oz

List of packages:
ProductSiteLaunchDate : 2024-09-20T00:00:00.000Z
UnspscCode : 39122300
