Specification
AgeRangeDescription : adult
Amperage : 4 amps
Brand : Ylwxzenith
BulletPoint : 1PC ZYD1 Phase Sequence Protector Elevator Water Pump Three-Phase Power Supply Failure Phase Protection Relay
BulletPoint1 : 3-Phase Monitoring: Accurately monitor 3-phase voltage with clear LED indication, providing quick and easy status recognition.
BulletPoint2 : Self-Reset Function: The voltage relay supports self-reset after failure, ensuring continuous and operation.
BulletPoint3 : Powerful Protection: Designed for power supply voltage measurement and protection, the dual bus wiring designs offer enhanced capability.
BulletPoint4 : sturdy and Practical: With a stable structure, excellent performance, and small size for easy installation, this equipment is built to last.
BulletPoint5 : Technical Specifications: GRV8-SN model, rated power frequency of 45Hz-65Hz, and a working temperature range from -20 to 55.
Color : One Color
ExternallyAssignedProductIdentifier : 7320469127869
IncludedComponents : No

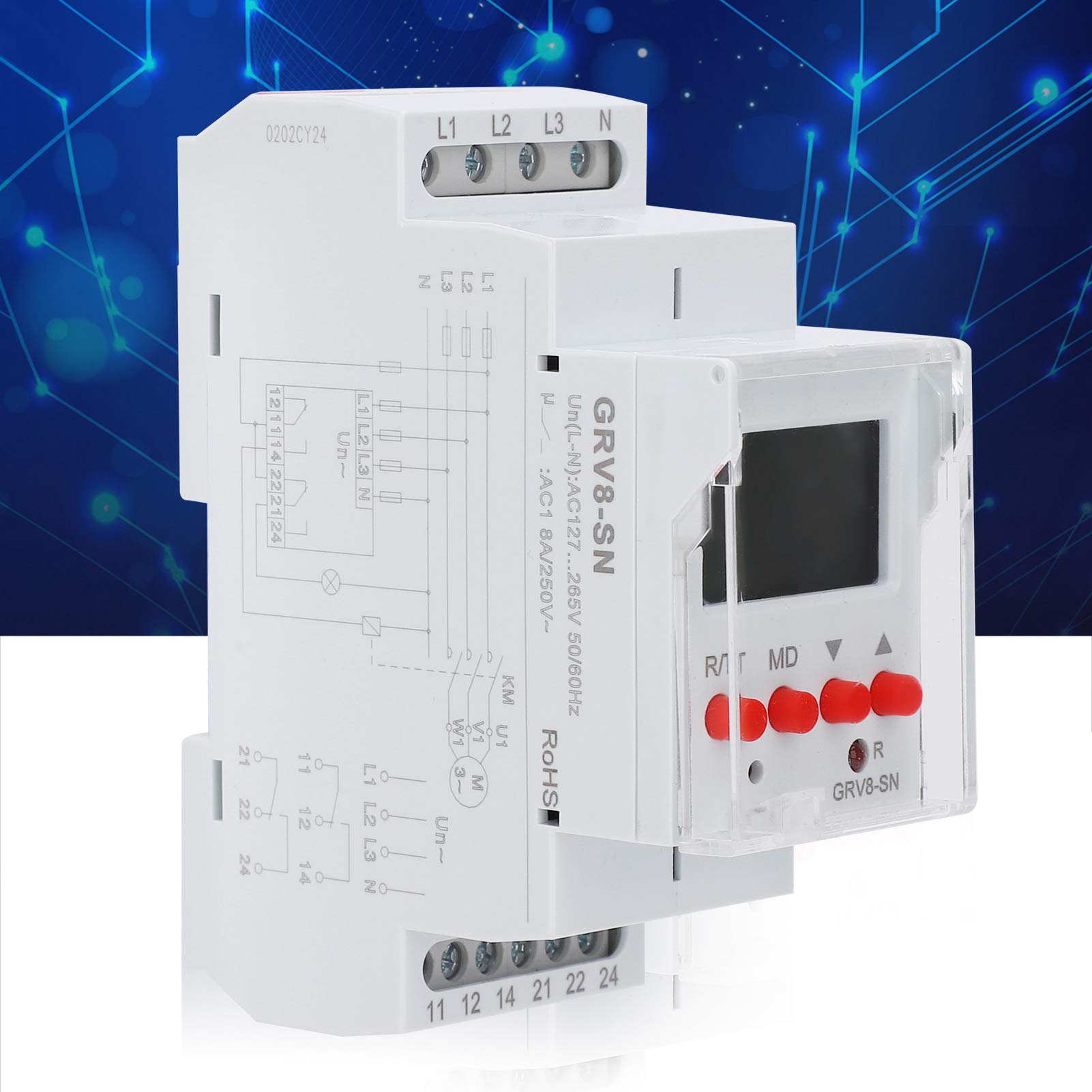

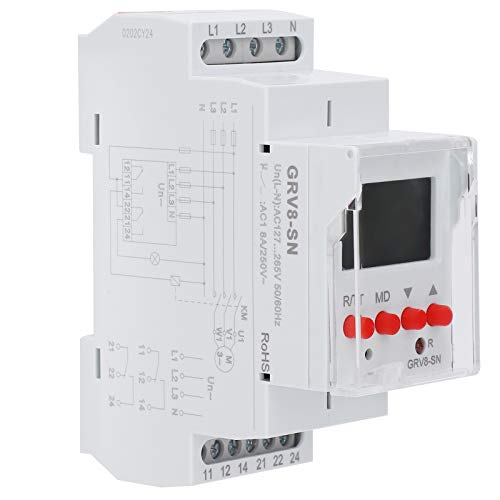

ItemName : 3 Phase Display Voltage Relay GRV8 SN, Voltage Power Protector with LED Indication, Medium and Low Voltage Equipment for Monitoring 3 Phase Voltage, Self Reset Function
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 10 centimeters
ItemPackageDimensions_Width : 9 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : phase-monitoring-relays
Manufacturer : Ylwxzenith
Material : Plastic
MeasurementAccuracy : 0.1mm
ModelName : Ylwxzenithkq4v5uxago
ModelNumber : Ylwxzenithkq4v5uxago
NumberOfBoxes : 1
NumberOfItems : 1
PackageLevel : unit
PartNumber : Ylwxzenithkq4v5uxago
PhaseType : Three Phase
ProductDescription :
Item Type: 3-Phase Display Voltage Relay
Technical Parameters: GRV8-SN
Function: Monitor 3-phase voltage
Monitoring Terminal: L1-L2-L3-N
Voltage Range(Un): 127-1-138-220-230-240--265 (P-N)
Rated Power Frequency: 45Hz-65Hz
Measuring Range: 70V-400V
Measurement Error: 1%
Hysteresis: 2%
Phase Failure Value: 50% of Un
Time Deviation: 5%
Temperature Coefficient: 0.05%/℃, = 20℃(0.05%℉, = 68℉)
Output: 2xSPDT
Rated Current: 8A / AC1
Switching Voltage: 250V AC / 24V DC
Minimum DC Breaking Capacity: 500mW
Mechanical Life: 1x10 ^ 7
Electrical Life (AC1): 1x10 ^ 5
Working Temperature: -20℃ to +55℃ (-4℉ to 131℉)
Storage Temperature: -35℃ to +75℃ (-220℉ to 158℉)
Installation/DIN Rail: DIN rail EN/IEC 60715
Protection Level: Front panel IP40 / IP20 terminal
Working Position: Any
Overvoltage Treatment: lll
Pollution Degree: 2
Maximum Cable Size (mm²): Solid wire maximum 1x2.5 or 2x1.5 / with sleeve maximum 1x2.5 (AWG 12)
Tightening Torsion: 0.4Nm

Package List：
1 x 3-Phase Display Voltage Relay
1 x User Manual

ProductSiteLaunchDate : 2024-10-19T11:38:34.516Z
Size : ZYD1-C
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 39122300
Voltage : 690 volts
WarrantyDescription : No Warranty
Wattage : 1.5 kilowatts
