Specification
Brand : Makermotor
BulletPoint1 : Brushless Motor Technology
BulletPoint2 : Planetary Gear Motor
BulletPoint3 : Variable Speed Up to 10RPM
BulletPoint4 : ON/OFF and Reverse Signal Wires
BulletPoint5 : Integral Motor Controller
CustomerPackageType : Standard Packaging
ExternallyAssignedProductIdentifier : 5175501218317
ExternallyAssignedProductIdentifier1 : 722856007193
ExternallyAssignedProductIdentifier2 : 0722856007193
ExternallyAssignedProductIdentifier3 : 00722856007193
Horsepower : 24 watts
IncludedComponents : Electric Motor
ItemName : Makermotor BBQ Spit Rotisserie Gearmotor Variable Speed Reversible Brushless Gear Motor 10 RPM 110/220vac
ItemPackageDimensions_Height : 29.21 centimeters
ItemPackageDimensions_Length : 17.78 centimeters
ItemPackageDimensions_Width : 19.05 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : permanent-magnet-motors
Manufacturer : Makermotor
Material : Metal
ModelNumber : PN00211
NumberOfItems : 1
PartNumber : PN00211

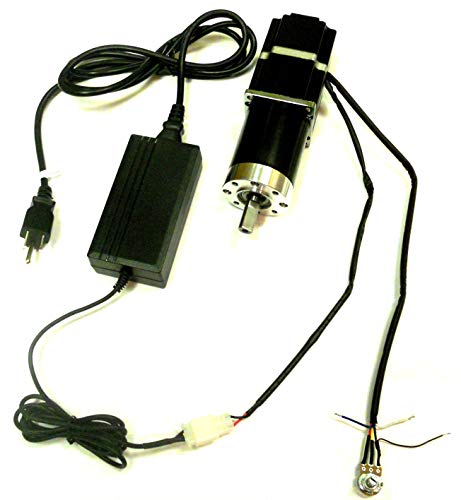

ProductDescription : Due to its low speed property and its variable speed feature. This is motor is ideal for low speed rotisserie application. This is a compact, single-phase, 115v ac to 230v ac input, permanent magnet, BRUSHLESS gear motor with reversible, on/off, speed adjustable controls. Speed range varies depending on the shaft load. Motor's maximum speed is 10 RPM. Rotation is reversible by a signal wire. This combination will be described in two parts: brushless dc gear motor and power adapter. Brushless 12VDC Gear Motor: 24 N-m (17.7 ft-lb) torque at 10 RPM. Permanent magnet rotor. 60mm x 60mm square motor with 56mm diameter gear box. 4 M5 threaded holes located at front for face mounting. Motor length is 6.75 inch (171mm) long and its controller is integrated as part of the motor. Shaft is 12mm in diameter with a flat and is 1 inch (25.4mm) long. The control line, which contains speed adjustment (with a pot soldered already), reversing signal wire, on/off signal wire, and signal ground wire, is 14 inch (356mm) long. Connector line that is to connect to the power adapter is 14 inch (356mm) long. Motor control is very simple. To turn the motor on, simply disconnect the on/off (blue) wire to signal ground (black) wire. A typical practice is to introduce a switch between the on/off wire and the ground wire. To reverse the rotation of the motor, simply connect the reverse (white) wire to the same ground wire and the motor will reverse its rotation. PLEASE BE SURE THAT THE MOTOR IS AT FULL STOP BEFORE REVERSING. To vary the speed, simply turn the potentiometer. Power Adapter: The power cord is 5 ft(152 cm) long and has a standard plug ready to plug into a standard appliance outlet. The adapter is able to universally accept 115v ac or 230v ac. Connector line that is to connect to the motor is 3 ft (91 cm) long. Adapter's dimensions are 2.5 in(64mm) width by 4.75in(121mm) length by 1.75in(44mm) depth.
ProductSiteLaunchDate : 2011-09-08T07:00:00.000Z
Size : 20RPM
Speed : 10 rpm
UnitCount : 1
UnspscCode : 26101208
Voltage : 230 volts
Wattage : 0.37 kilowatts
