Specification
Brand : FUZHUI
BulletPoint1 : Performance Motor: Features two magnets in motor for improved motor performance, delivering torsion and efficiency.
BulletPoint2 : Durably Gear : Utilizes -temperature grease for reduced friction, noise, and slow temperature rise, extending gear's lifespan.
BulletPoint3 : Mechanism: Automatically cuts off when current reaches 3A to motor burnout and increase .
BulletPoint4 : Enhanced Conductivity: copper coil stator and rotor boost deceleration and conductivity, resulting in increased motor torsion.
BulletPoint5 : Quiet and Stable: All-metal gears ensure -quiet operation, stability, -, and a long service .
IncludedComponents : No

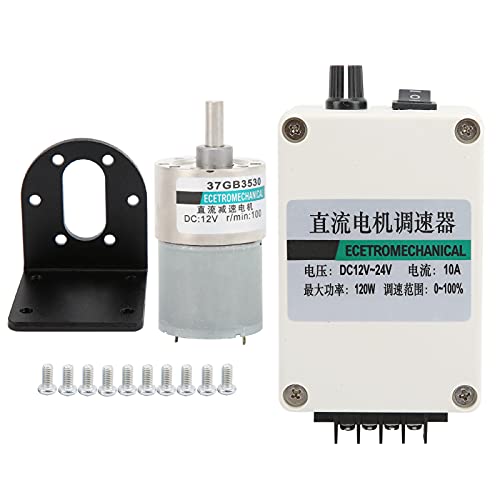

ItemName : DC Gear Motor XD37GB3530 Low Speed, Torsion, Permanent Magnet, 12V, with Bracket and Governor (100rpm/min)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 5 centimeters
ItemTypeKeyword : permanent-magnet-motors
Manufacturer : FUZHUI
ModelName : FUZHUI2qwxa418i7-11
ModelNumber : FUZHUI2qwxa418i7-11
NumberOfItems : 1
PartNumber : FUZHUI2qwxa418i7-11
ProductDescription : Item Type: DC Gear Motor
Model: XD-37GB3530
Material: Copper
Output Shaft Size: Approx. 5.5 x 15mm / 0.2 x 0.6in
Insulation : After the rated operation of the motor under normal temperature and humidity, when measuring the insulation between the coil and the motor with a DC500V meter, it does not exceed 20MΩ
Insulation Withstand Voltage: After the rated operation of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil s for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated operation under normal temperature and humidity by using the to measure the temperature rise of the coil below 70℃
Insulation Class: Class B(130℃)
Operating Environment Temperature: Motor: -10~+40℃ (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes

Governor Voltage: DC12-24V
Speed Adjustment Range: 0-



Model Voltage)DC/V) No-Load Speed (rpm/min) No-Load Current(A) Rated Torsion)kg/cm) Load Speed (rpm/min) Load Current)A) Power)W)
XD-37GB3530 12 100 0.15 4 93 0.58 10
200 0.15 2.5 175 0.58 10
300 0.15 1.8 245 0.58 10
500 0.15 1 480 0.58 10

Notes:
1 Overload and Locked Rotor:
When the motor is running, it generates heat due to the energy conversion that occurs inside the coil and the iron core, and the temperature gradually rises. The load is within the rated range, and the heat generation and heat dissipation are balanced, and the coil of the motor will not be burnt. However, it will cause heat under overload and locked-rotor conditions. When the running time is too long, the insulating film on the enameled wire of the coil is dissolved, causing a short circuit between the enameled wires and burning the motor.
2 When Running at Low Speed:
For DC motors, carbon brushes are generally used. The rotating
ProductSiteLaunchDate : 2025-05-06T11:22:10.510Z
Size : DC12V 220RPM
Style : 100rpm/min
UnspscCode : 26101200
