Specification
Amperage : 40 milliamps
Brand : FUZHUI
BulletPoint : Generators
BulletPoint1 : High Performance: Features two magnets inside, enhancing motor performance with high remanence, coercivity, and magnetic energy product.
BulletPoint2 : Gearing: Utilizes high-temperature grease lubricating oil for reduced friction, noise, and slow temperature rise, extending gear lifespan.
BulletPoint3 : Safety Mechanism: Brushless motor automatically cuts off power at 3A to prevent burnout and increase motor life.
BulletPoint4 : Enhanced Conductivity: Pure copper coils in stator and rotor boost torsion and conductivity.
BulletPoint5 : Quiet : All-metal gears ensure ultra-quiet, with large torsion in a small size.
Color : One Color
ControlMethod : remote
ExternallyAssignedProductIdentifier : 7779395463617

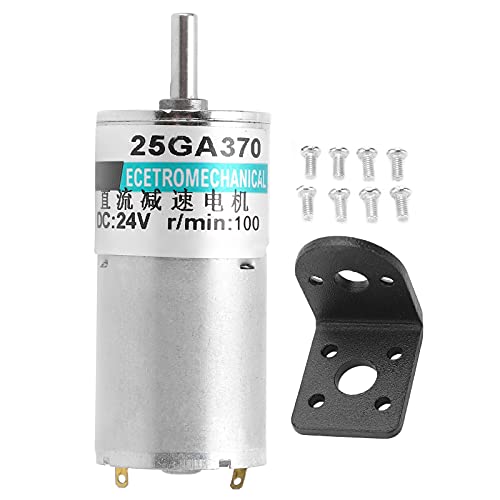

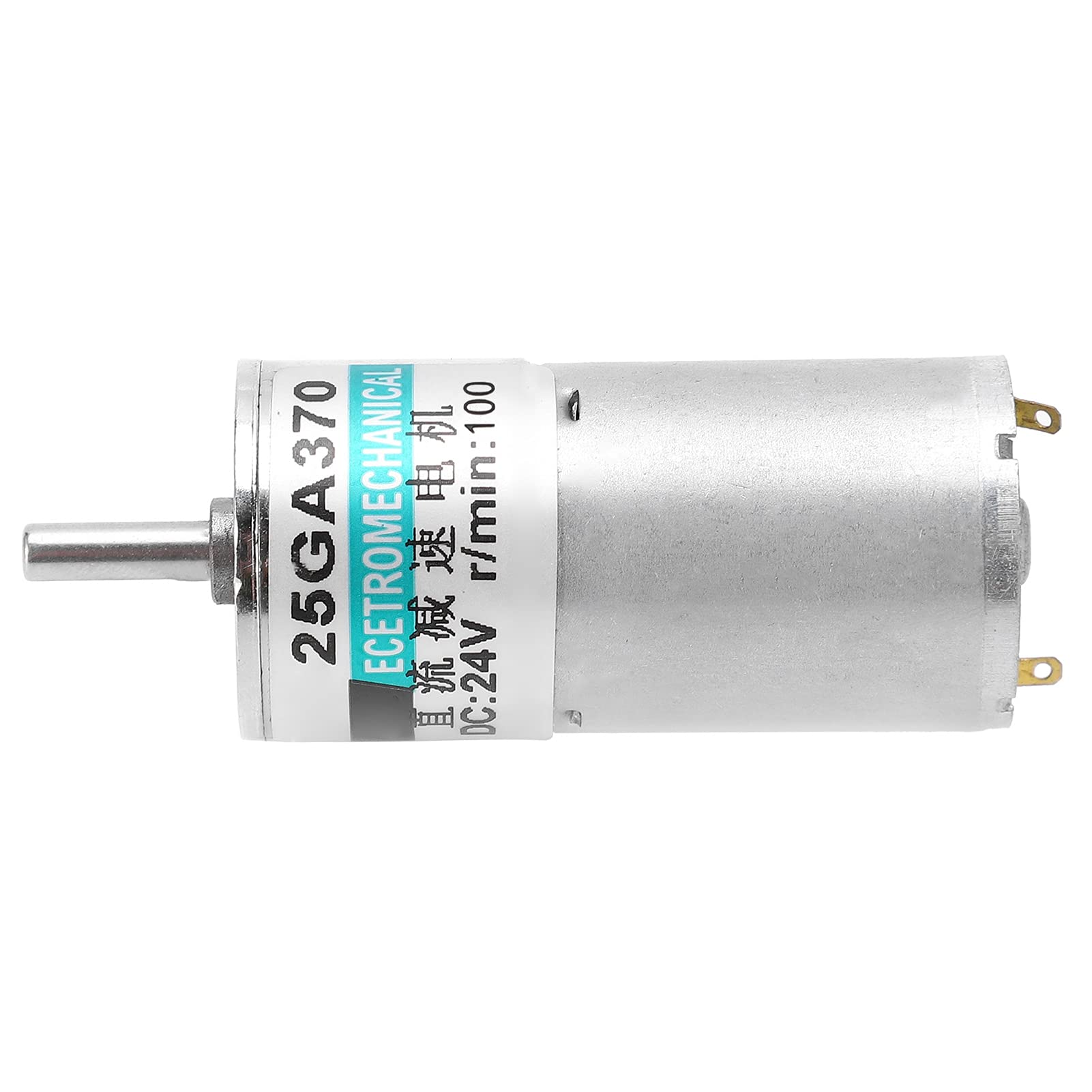

ItemName : DC Gear Motor XD25GA370 Low Speed CW CCW Permanent Magnet High Torsion Copper Coil Motor with Bracket for Sport Control 24V (100rpm/min)
ItemPackageDimensions_Height : 5 centimeters
ItemPackageDimensions_Length : 15 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : permanent-magnet-motors
Manufacturer : FUZHUI
Material : Copper
MinimumFrequency : 50 hertz
ModelName : FUZHUIeg1p3u2btf-11
ModelNumber : FUZHUIeg1p3u2btf-11
MountingType : Panel Mount
NumberOfItems : 1
NumberOfLightSources : 1
PartNumber : FUZHUIeg1p3u2btf-11
PowerSourceType : Battery Powered
ProductDescription : Item Type: DC Gear Motor
Model: XD-25GA370
Material: Copper
Output Shaft Size: Approx. 4 x 12mm / 0.2 x 0.5in
Insulation : After the rated of the motor under normal temperature and humidity, when measuring the insulation between the coil and the motor with a DC500V meter, it does not exceed 20MΩ
Insulation Withstand Voltage: After the rated of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil s for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated under normal temperature and humidity by using the to measure the temperature rise of the coil below 70℃
Insulation Class: Class B(130℃)
Operating Environment Temperature: Motor: -10~+40℃ (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes

Model Voltage)DC/V) No-Load Speed (rpm/min) No-Load Current(A) Load Speed (rpm/min) Loading Moment)kgf·cm) Load Current)A) Power)W)
XD-25GA370 24V 100 0.05 93 0.47 0.2 2
200 0.05 175 0.23 0.2 2
300 0.05 245 0.16 0.2 2
500 0.05 485 0.05 0.2 2 Notes:
1 Overload and Locked Rotor:
When the motor is running, it generates heat due to the energy conversion that occurs inside the coil and the iron core, and the temperature gradually rises. The load is within the rated range, and the heat generation and heat dissipation are balanced, and the coil of the motor will not be burnt. However, it will cause heat under overload and locked-rotor conditions. When the running time is too long, the insulating film on the enameled wire of the coil is dissolved, causing a short circuit between the enameled wires and burning the motor.
2 When Running at Low Speed:
For DC motors, carbon brushes are generally used. The rotating commutator rubs against the carbon brushes, creating sparks at the notches of the commutator. When the motor is
ProductSiteLaunchDate : 2025-04-22T03:22:17.156Z
Size : 100rpm/min
SpecificationMet : IP 67/RoHS
Style : Modern
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 26101200
Voltage : 30 volts_of_direct_current
Voltage1 : 120 volts
Voltage2 : 6 volts
