Specification
Brand : WnewTools
BulletPoint1 : 2. All the gear of metal mechanism:Wear resistance, strong resistance to torsion, smooth transmission, compact structure.
BulletPoint2 : 1. Pure copper winding wire:The rotor is made of pure copper with low resistance and high conductivity, which improves the motor torque.
BulletPoint3 : 3. D axis font:D-shaped shaft, more convenient to install, not easy to slide, save installation time
BulletPoint4 : 4. Rare earth magnetic hollow cup motor inlet:High efficiency, low noise, good sensitivity, long service life, energy saving, fast response, etc.
BulletPoint5 : 5. Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Color : One Color
ExternallyAssignedProductIdentifier : 9010064193861
ExternallyAssignedProductIdentifier1 : 0769903001636
ExternallyAssignedProductIdentifier2 : 769903001636
IncludedComponents : No
ItemDisplayWeight : 0.65 pounds

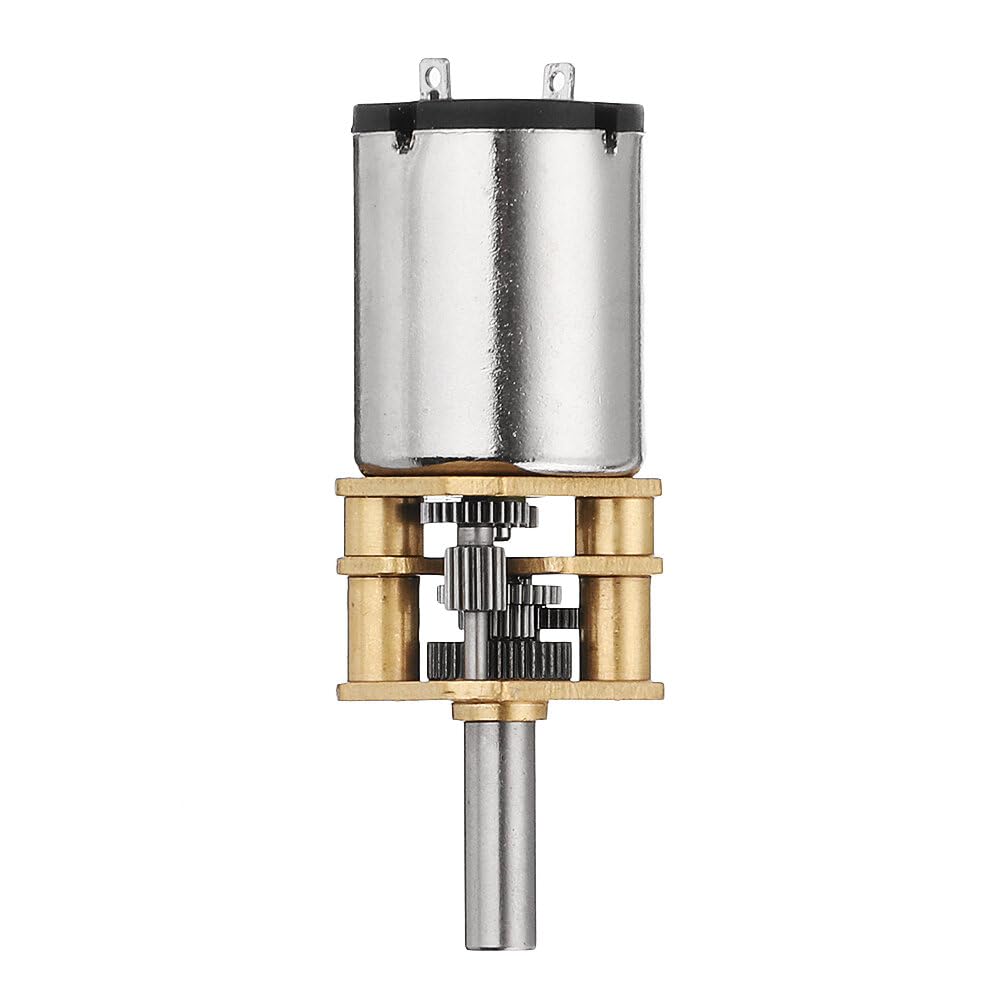

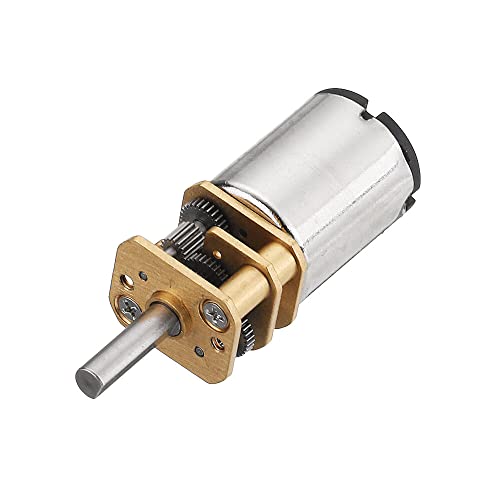

ItemName : CHF-GM12-1215R DC Motor 12V 1050rpm Mute Torsion Large Hollow Cup Reduction Gear Motor
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 3 centimeters
ItemPackageDimensions_Width : 2 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : permanent-magnet-motors
Manufacturer : Wnew
Material : Iron
ModelName : CHF-GM12-1215R DC motor
ModelNumber : ATOOL1424645
NumberOfBoxes : 1
NumberOfItems : 1
NumberOfLithiumMetalCells : 1
NumberOfPieces : 1
PackageLevel : unit
PartNumber : ATOOL1424645
PowerSourceType : hand_powered
ProductDescription :

Specification:

Model CHF-GM12-1215R permanent magnet dc motor with brush speed reducer

Shaft diameter Output shaft diameter: 3mm, D type D thickness 2.5mm

Outside diameter Diameter: 12 x 24.2mm (excluding the size of outgoing shaft)

Shaft length Length: 10mm / 4.4mm, etc.

Application cases Intelligent fingerprint door lock, intelligent robot, intelligent manipulator, intelligent furniture, intelligent focusing system, miniature head, etc.

Optional accessories Flange coupling, positive and negative drive, etc.

Parameter:

Warning:can't exceed 3.0 kq.cm (0.3 N.M). Otherwise, it will cause gear damage.

Voltage RATIO No-load Rated-Load STALL

current (mA) speed (rpm) Torque (kg.cm) speed (rpm) current (mA) Torque (kg.cm) current(mA) (mA)

DC 12.0V Max . Power 1.3W 1:20 ≤40 1050 0.2 600 ≤0.3 ≥0.4 ≤0.75

Package Included:

1 X CHF-GM12-1215R DC motor

ProductSiteLaunchDate : 2022-08-30T15:58:11.573Z
Size : 2.5rpm
SupplierDeclaredDgHzRegulation : unknown
UnitCount : 1
UnspscCode : 26101208
