Specification
Brand : ZGEXING
BulletPoint1 : Build to Last: High-quality ABS casing, PPS pump head, and stainless steel drill make it rust-resistant and durable, enduring the test of time.
BulletPoint2 : Excellent Function: Composed of a driver, pump head, and hose, this product with a maximum power of 30W, a flow rate of 0.07-380 mL/min, and a rotational speed of 0.1-100rpm can quickly transfer liquid and empty, improving your efficiency.
BulletPoint3 : Convenient Use: The LED screen makes it easy for you to observe the running speed, direction, and status, with easy-to-use switches, ergonomic control panel (at an angle of 18 degrees to the horizontal), easy-to-use pipe clamps and ratchets, and detailed instructions to assist you in effortless use.
BulletPoint4 : Adjustable Design: Use an operation panel or connect external controls to allow it to rotate forward and backward, increase or decrease the speed at 0.1-100rpm to control the flow rate (0.07-380m/min) for fast filling and emptying.
BulletPoint5 : Thoughtful Design: Power-off memory function (required to maintain the working state for more than 5 seconds), noise below 60 decibels, suitable for a variety of pump head designs, providing you with a more comfortable user experience.
Color : Black
IncludedComponents : 1* Peristaltic Pump

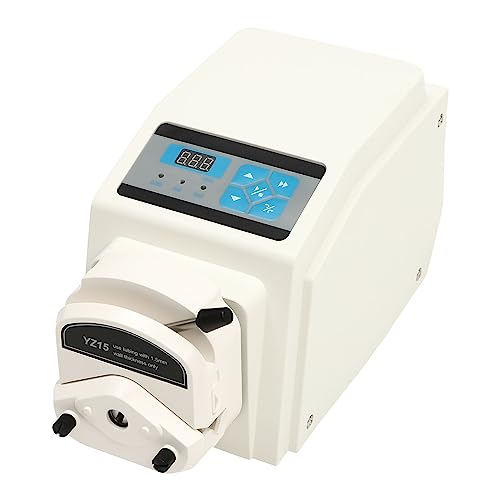

ItemName : ZGEXING Variable Speed Peristaltic Pump with Pump Head YZ15, Flow Rate 0.07~380 mL/min, 0.1-100rpm,Industrial Variable Speed Liquid Metering Pump
ItemPackageDimensions_Height : 4 centimeters
ItemPackageDimensions_Length : 7 centimeters
ItemPackageDimensions_Width : 6 centimeters
ItemTypeKeyword : industrial-peristaltic-metering-pumps
Manufacturer : ZGEXING
Material : Acrylonitrile Butadiene Styrene
Material1 : Acrylonitrile Butadiene Styrene
Material2 : Stainless Steel
ModelName : Peristaltic Pump
ModelNumber : 85281771
NumberOfItems : 1
PartNumber : Nas4-AL213-MT1-2996
PowerSourceType : hand_powered
ProductDescription :

Details

Drive External Interface: The drive external interface allows it to control the machine through external information, increasing its applicability.

It can only match hoses( 13#, 14#, 19#, 16#, 25#, 17#, 18#) with a 1.6mm wall, can be used in education, research, testing institutions, industry, filling, production, pharmaceutical, medical, food industry, factory production lines, laboratories, research institutions, medical equipment for rapid filling, emptying, dispensing and non-viscous liquid delivery.

Specification

Color: Beige

Drive Mode: Electric

Material: ABS, PPS, Stainless Steel

Power Source: Corded Electric

Shape: Rectangular

Assembly Required: No

Plug Type: US Standard

Number of Items: 1

Model: YZ15-13A

Available Tubing: 13#, 14#, 19#, 16#, 25#, 17#, 18#

FlowRate Range (m/min): 0.07-380m/min

Tube Wall Thickness: 1.6mm/0.063in

Resolution: 0.1rpm

Speed Range: 0.1-100rpm

Power Supply: AC 90-260V, 50/60Hz

Maximum Power: 30W

Protection Level: IP31

Decibel: Less Than 60 dB

Direction Of Rotation: Forward/Reverse(Corresponding Indicators are CW (Geen) / CCW (Blue))

Adjustment Method: Membrane Button and Rotary Adjustment

Display Mode: Three-Digit Led Digital Tube Displays the Current Speed

External Control Interface: Start-Stop Control, Direction Control, Speed Control ( 0-5V/0-10V, 4- 20mA,0-10kHz)

Communication Method: Rs485

Working Environment: Ambient Temperature 0-40℃/ 32-104℉

Relative Humidity: <80%

Length of Tube: 4m/13.1ft

Gross Weight: 3.4kg/ 7.49 lbs

Product Size: 15.22*24.24*15.8cm/ 6*9.54*6.22in

Package Size: 41*24*21cm/ 16.1*9.4*8.3in

Package Included

1 *Peristaltic Pump

1* #17 Tube(13.1ft)

1 *Power Cord

1 *English Instruction
