SpecificationBrand : SanBouSi
BulletPoint1 : ✔ Excellent Function: Composed of a driver, pump head, and hose, this peristaltic pump with a maximum power of 30W, a flow rate of 0.07-380 mL/min, and a rotational speed of 0.1-100rpm can quickly transfer liquid and empty, improving your efficiency
BulletPoint2 : ✔ Adjustable Design: Use an operation panel or connect external controls to allow it to rotate forward and backward, increase or decrease the speed at 0.1-100rpm to control the flow rate (0.07-380m/min) for fast filling and emptying
BulletPoint3 : ✔ Convenient Use: The LED screen makes it easy for you to observe the running speed, direction, and status, with easy-to-use switches, ergonomic control panel (at an angle of 18 degrees to the horizontal), easy-to-use pipe clamps and ratchets, and detailed instructions to assist you in effortless use
BulletPoint4 : ✔ Thoughtful Design: Power-off memory function (required to maintain the working state for more than 5 seconds), noise below 60 decibels, suitable for a variety of pump head designs. The protection level of IP31, exhaust ports, and the rectangular base with higher stability that makes it less prone to overturning, damage, and deformation can further safeguard safety, so you can use it with confidence
BulletPoint5 : ✔ Application: Peristaltic pump can only match hoses( 13#, 14#, 19#, 16#, 25#, 17#, 18#) with a 1.6mm wall , can be used in education, research, testing institutions, industry, filling, production, pharmaceutical, medical, food industry, factory production lines, laboratories, research institutions, medical equipment for rapid filling, emptying, dispensing and non-viscous liquid delivery
Color : Beige
ExternallyAssignedProductIdentifier1 : 0722487857747
ExternallyAssignedProductIdentifier2 : 722487857747
IncludedComponents1 : Tube
IncludedComponents2 : Power Cord

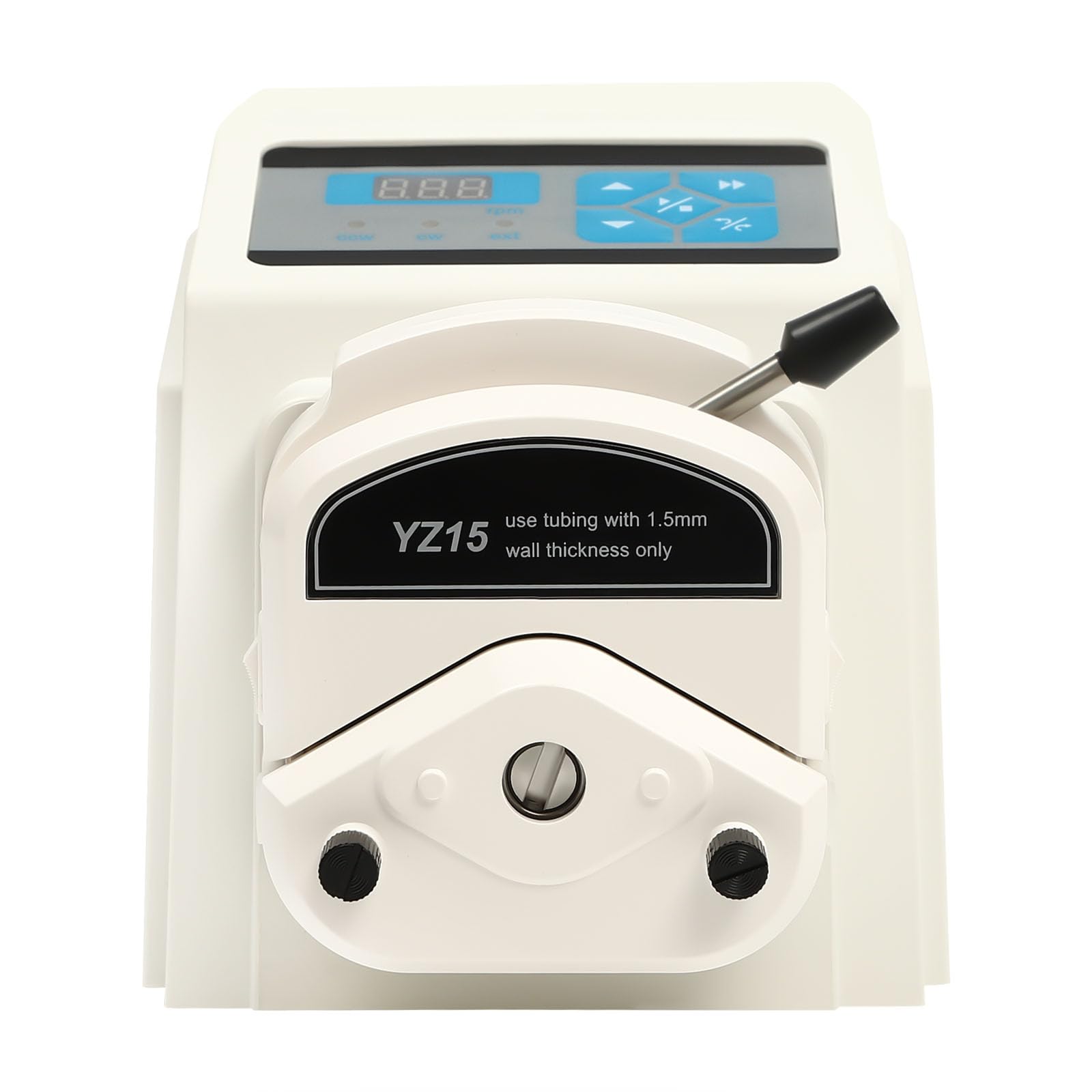

ItemName : Peristaltic Metering Pump, Industrial Variable Speed Peristaltic Pump Liquid Dosing Pump with Pump Head YZ15, Flow Rate 0.07~380 mL/min, 0.1-100rpm, with 13.1ft 17#Tubing
ItemTypeKeyword : industrial-peristaltic-metering-pumps
Manufacturer : SanBouSi
Material1 : Acrylonitrile Butadiene Styrene
Material2 : Stainless Steel
ModelName : peristaltic Pump
ModelNumber : peristaltic Pump
PowerSourceType : Corded Electric
ProductDescription :
ariable Speed Peristaltic Pump with Pump Head YZ15, Flow Rate 0.07~380 mL/min, 0.1-100rpm, with 13.1ft 17# Tubing
Description
This high-speed peristaltic machine is made of high-quality ABS, PPS, and stainless steel ensuringlong-term use. It can adjust the speed, flow rate, and direction of rotation freely through the control panel and connected external controls. At the same time, its 3-digit LED display screen and convenient switch buttons also better assist your observation and operation. It will be a good helper in your work.
Specification
Color: Beige
Drive Mode: Electric
Material: ABS, PPS, Stainless Steel
Power Source: Corded Electric
Shape: Rectangular
Assembly Required: No
Plug Type: US Standard
Number of Items: 1
Model: YZ15-13A
Available Tubing: 13#, 14#, 19#, 16#, 25#, 17#, 18#
FlowRate Range (m/min): 0.07-380m/min
Tube Wall Thickness: 1.6mm/0.063in
Resolution: 0.1rpm
Speed Range: 0.1-100rpm
Power Supply: AC 90-260V, 50/60Hz
Maximum Power: 30W
Protection Level: IP31
Decibel: Less Than 60 dB
Direction Of Rotation: Forward/Reverse(Corresponding Indicators are CW (Geen) / CCW (Blue))
Adjustment Method: Membrane Button and Rotary Adjustment
Display Mode: Three-Digit Led Digital Tube Displays the Current Speed
External Control Interface: Start-Stop Control, Direction Control, Speed Control ( 0-5V/0-10V, 4- 20mA,0-10kHz)
Communication Method: Rs485
Working Environment: Ambient Temperature 0-40℃/ 32-104℉
Relative Humidity: <80%
Length of Tube: 4m/13.1ft
Gross Weight: 3.4kg/ 7.49 lbs
Product Size: 15.22*24.24*15.8cm/ 6*9.54*6.22in
Package Size: 41*24*21cm/ 16.1*9.4*8.3in
Package Included
1* Peristaltic Pump
1* #17 Tube(13.1ft)
1* Power Cord
1* English Instruction
Notes
Please use tubing with 1.6mm wall thickness only.
Please strictly follow the instructions for operation.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
ProductSiteLaunchDate : 2024-03-30T06:39:43.474Z
SupplierDeclaredDgHzRegulation : not_applicable
UnitCount : 1
UnspscCode : 40151500
