Specification
Artist : Artist
Brand : DDYOOK
BulletPoint1 : ➤【Working power supply】: AC 90-260V, 50/60Hz, power: 30W max, weight: 3.4kg, flow range: 0.07-380ml/min, using high-precision stepping motor, longer life，low noise.
BulletPoint2 : ➤【Build to Last】: High-quality ABS casing, PPS pump head, and stainless steel drill make it rust-resistant and durable, enduring the test of time.
BulletPoint3 : ➤【Thoughtful design】: The LED screen makes it easy for you to observe the running speed, direction, and status, with easy-to-use switches, ergonomic control panel (at an angle of 18 degrees to the horizontal), easy-to-use pipe clamps and ratchets, and detailed instructions to assist you in effortless use.
BulletPoint4 : ➤【Convenient Use】: This intelligent peristaltic pump machine can be used when it is connected to the power supply, and it is also equipped with a foot switch that can be used to control the start and stop.
BulletPoint5 : ➤【Application】: This small liquid dosing pump suitable ions, industry, filling, medical, food industry, factory production lines, laboratories, research institutions, medical equipment for rapid filling, emptying and non-viscous liquid delivery.
ExternallyAssignedProductIdentifier1 : 0759224671625
ExternallyAssignedProductIdentifier2 : 759224671625
IncludedComponents : 1* Peristaltic Pump 1* #17 Tube(13.1ft) 1* Power Cord 1* English Instruction

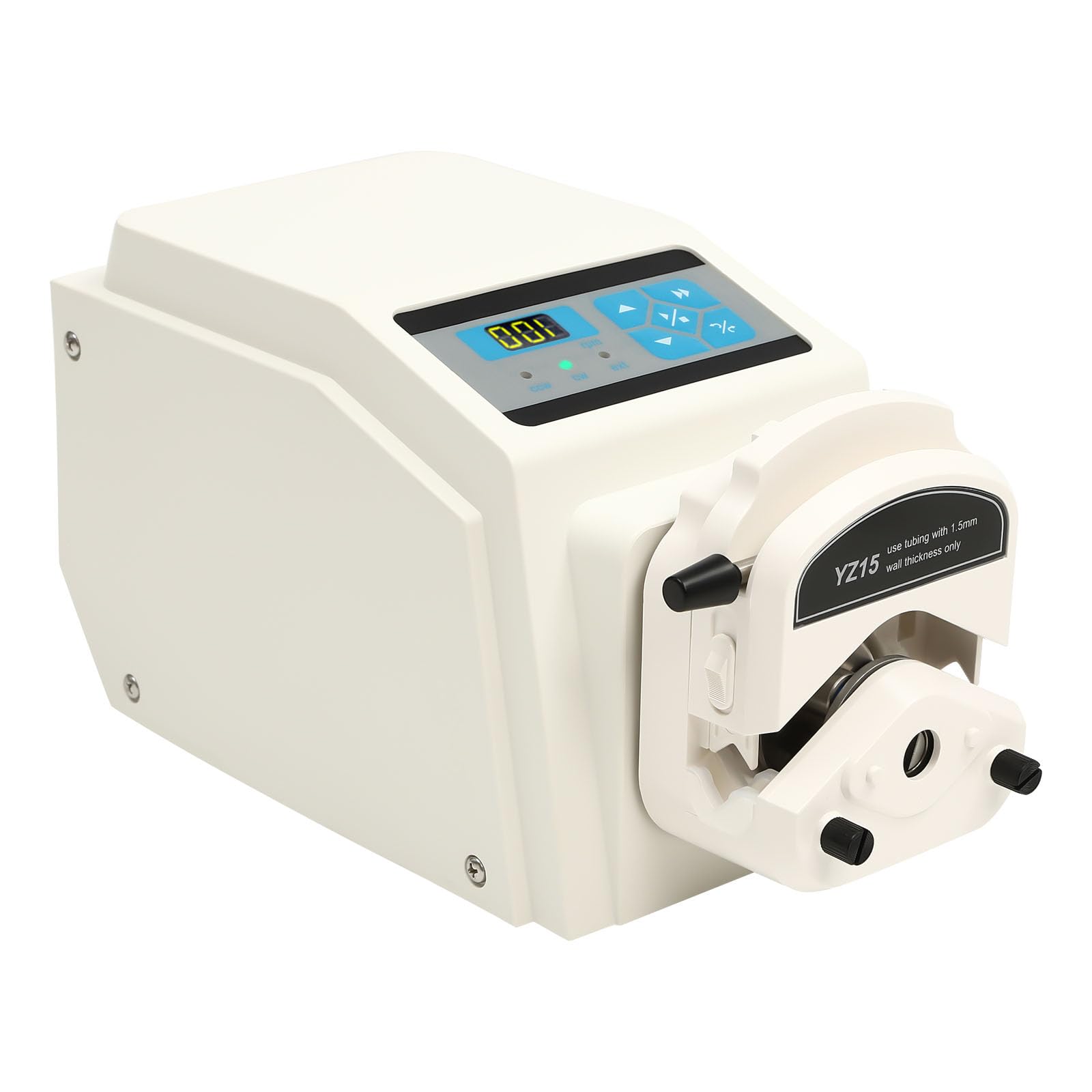

ItemName : Industrial Peristaltic Pump Stepper with Digital Control 90V-260V Variable Speed Small Intelligent Liquid dosing Pump High Precision for lab 0.1-100rpm 0.07-380ml/min Per Channel
ItemPackageDimensions_Height : 12 centimeters
ItemPackageDimensions_Length : 17 centimeters
ItemPackageDimensions_Width : 12 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-peristaltic-metering-pumps
Manufacturer : Aongslank
MediaType : ArtworkMedium
ModelName : Peristaltic Pump Stepper
ModelNumber : DDYOOK178
NumberOfItems : 1
PartNumber : FEW45465G
PowerSourceType : Corded Electric
ProductDescription :

Description

This high-speed peristaltic machine is made of high-quality ABS, PPS, and stainless steel ensuringlong-term use. It can adjust the speed, flow rate, and direction of rotation freely through the control panel and connected external controls. At the same time, its 3-digit LED display screen and convenient switch buttons also better assist your observation and operation. It will be a good helper in your work.

Key Features

Safe and Stable: The protection level of IP31, exhaust ports, and the rectangular base with higher stability that makes it less prone to overturning, damage, and deformation can further safeguard safety, so you can use it with confidence.



Application

It can only match hoses( 13#, 14#, 19#, 16#, 25#, 17#, 18#) with a 1.6mm wall.

Specification

Color: Beige

Drive Mode: Electric

Material: ABS, PPS, Stainless Steel

Power Source: Corded Electric

Shape: Rectangular

Assembly Required: No

Plug Type: US Standard

Number of Items: 1

Model: YZ15-13A

Available Tubing: 13#, 14#, 19#, 16#, 25#, 17#, 18#

FlowRate Range (m/min): 0.07-380m/min

Tube Wall Thickness: 1.6mm/0.063in

Resolution: 0.1rpm

Speed Range: 0.1-100rpm

Power Supply: AC 90-260V, 50/60Hz

Maximum Power: 30W

Protection Level: IP31

Decibel: Less Than 60 dB

Direction Of Rotation: Forward/Reverse(Corresponding Indicators are CW (Geen) / CCW (Blue))

Adjustment Method: Membrane Button and Rotary Adjustment

Display Mode: Three-Digit Led Digital Tube Displays the Current Speed

External Control Interface: Start-Stop Control, Direction Control, Speed Control ( 0-5V/0-10V, 4- 20mA,0-10kHz)

Communication Method: Rs485

Working Environment: Ambient Temperature 0-40℃/ 32-104℉

Relative Humidity: <80%

Length of Tube: 4m/13.1ft

Gross Weight: 3.4kg/ 7.49 lbs

Product Size: 15.22*24.24*15.8cm/ 6*9.54*6.22in

Package Size: 41*24*21cm/ 16.1*9.4*8.3in

Package Included

1* Peristaltic Pump

1* #17 Tube(13.1ft)

1* Power Cord

1* English Instruction

ProductSiteLaunchDate : 2024-05-04T06:11:23.611Z
RegulatoryComplianceCertification : RSDOS.0494GA-004
Size : US Plug
Style : 1*3(hose)
SupplierDeclaredDgHzRegulation : not_applicable
TheatricalReleaseDate : 2024-05-17T17:45:38.000-07:00
UnitCount : 1
UnspscCode : 43000000
