Specification
Brand : CIXIFM
BulletPoint : Diaphragm Pumps
BulletPoint1 : Note: Before buying, in order to avoid buying mistakes, it is recommended to tell the customer service the medium and flow range you need to measure.
BulletPoint2 : Displacement: 0.15CC/R(±0.3%)~60CC/R(±0.3%) Medium: Fluid Minimum pressure: <0.2Mpa Maximum outlet pressure: <8Mpa Working temperature: 0~180℃ or 180℃~350℃ Direction of rotation: clockwise from the direction of the rotation axis
BulletPoint3 : To prolong the life of your metering pump, please review the following recommendations: If it is a high viscosity fluid (20000~100000CPS), the recommended rotation speed is 10~20 rpm. If it is a liquid with medium viscosity (3000~20000CPS), the recommended rotation speed is 10~40Rmin. If it is a low-viscosity liquid (20~3000CPS), the recommended rotation speed is 10~60R/min, and the maximum can be used at 80R/min.
BulletPoint4 : For high-viscosity fluids, it is recommended to choose a metering pump with a large displacement. If you don’t know how to choose a model, please consult customer service.
BulletPoint5 : Factory direct selling price, fine workmanship, exquisite measurement, high-quality after-sales customer service.
Color : One Color
ExternallyAssignedProductIdentifier : 7755859746793

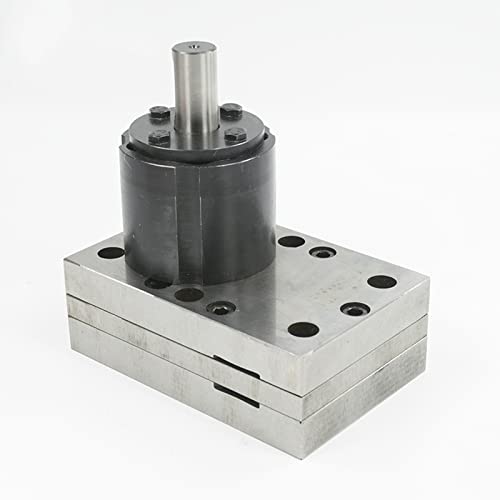

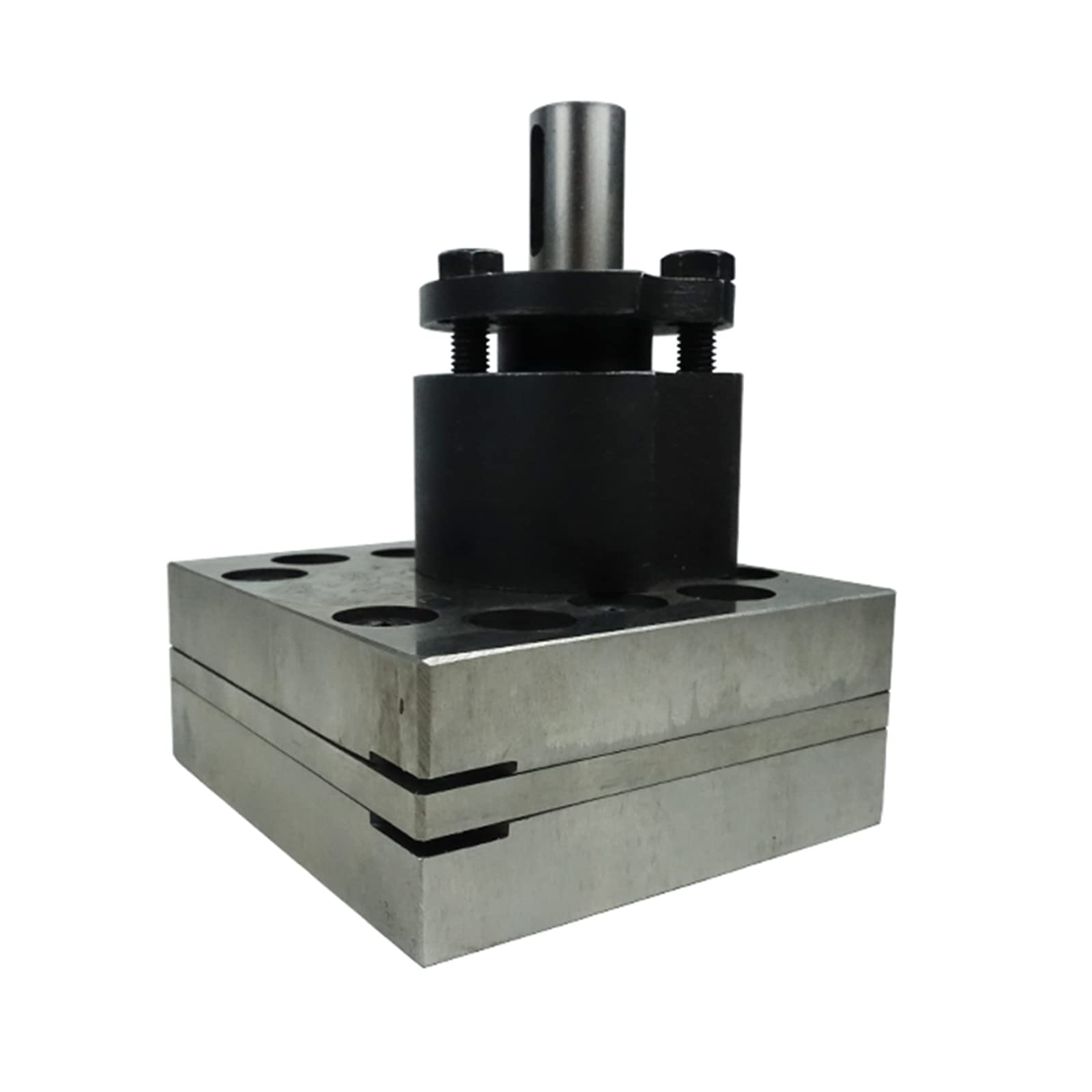

ItemName : CIXIFM High Precision Epoxy Metering Pump Polyurethane Foam Polymeric MDI Resin Gear Metering Pump Injection Glue Chemical Dosing Pump High Viscosity Gear Pump Customized (0~180℃ 0.3CC/R)
ItemPackageDimensions_Height : 1 centimeters
ItemPackageDimensions_Length : 1 centimeters
ItemPackageDimensions_Width : 1 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : industrial-peristaltic-metering-pumps
Manufacturer : Shanghai Cixi Instrument Co., Ltd.
ModelName : SOSODBBM
ModelNumber : SOSODBBM
NumberOfItems : 1
PartNumber : CX-GWMP
ProductDescription : CIXIFM High Precision Epoxy Gear Metering Pump Injection Glue Chemical Dosing Pump High Viscosity Gear Pump Customized


Note: Before buying, in order to avoid buying mistakes, it is recommended to tell the customer service the medium and flow range you need to measure.

To prolong the life of your metering pump, please review the following recommendations:

If it is a high-viscosity fluid (20000~100000CPS), the recommended rotation speed is 10~20RPM. If it is a medium viscosity liquid (3000~20000CPS), the recommended rotation speed is 10~40RPM. If it is a low-viscosity liquid (20~3000CPS), the recommended rotation speed is 10~60RPM, and the highest can be used at 80RPM. If it is a high temperature liquid (180~350°C), 10~40RPM is recommended.


Applicable displacement of metering pump:
0.3CC/R(±0.3%)~60CC/R(±0.3%)
Medium: Fluid
Minimum pressure: <0.2Mpa
Maximum outlet pressure: <8Mpa
Working temperature: 0~180℃ or 180℃~350℃
Direction of rotation: clockwise from the direction of the rotation axis


Application:

PU Glue Dispenser Machine Hot Melt
High Viscosity Polyurethane Paint
water stain paint
two-component polyurethane system doing
a+b pu Glue dispensing
polylactic acid
Epoxy resin
polyurethane foam polymeric MDI
sodium silicate
Molten ABS plastic
Polyol Polyurethane mixing system
Glue
hotmelt adhesive EVA
polyurethane components
Resin fluid Catalyst fluid
DMAC Dimethy lacetamide THF Tetrahydrofuran
hot melt wax
hot melt extruders
polymeric cellulose polymer solution
Hot Melt Adhesive PSA and Thermoset EVA
Hardener polyethylene polyamine PEPA


ProductSiteLaunchDate : 2023-02-14T09:21:58.459Z
Size : DC24V 10W
Style : 0~180℃ 0.3CC/R
UnitCount : 1
UnspscCode : 40151500
