Specification
Brand : LOHODIZI
BulletPoint1 : Commercial grade Quality: New Metal Materials, Compression, Wear-resisting Reinforcement Enclosure Structure,Used more safely and conveniently than other thanks to its sealed design
BulletPoint2 : Protection: Every Channel is Protected by using separate fused to ensure short-circuits and surges do not affect other connected devices.
BulletPoint3 : Total 30Amps Max OutputT: DC Voltage Can be Adjusted 10%, Good Load Capacity, Input and Output Over-voltage Protection
BulletPoint4 : MULTIPLE USES: can be used to power most any DC 12V devices, including CCTV security equipment, Mics, and Lighting equipment.
BulletPoint5 : PACKAGE INCLUDES: One 18CH 12V DC Power box,Key Lock, Rubber Seal, Power cord & Installation Accessories
BulletPoint6 : Make sure your device match the 12V voltage or other models vol. ,Please don't run it overload .The max use should be no more than 85% of the full loads,otherwise, It's cause the power supply to overheat,the service life of the power supply will be greatly shortened.
BulletPoint7 : LOHODIZI store: OEM factory competency, Most efficient technical support with superb processing technology,please feel free to contact us.
CompatibleDevices : Camera
ConnectorType : Local AC plug
ControlMethod : application
CoolingMethod : Air

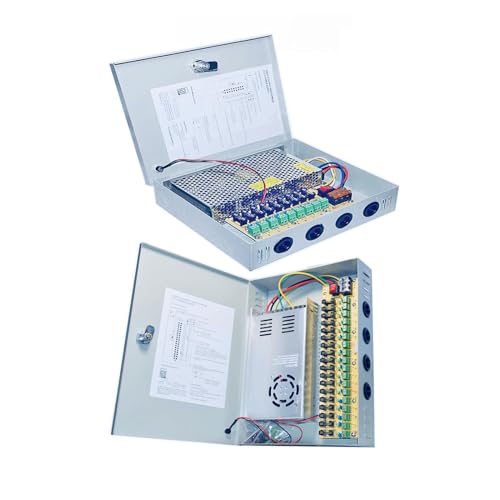

ItemName : LOHODIZI 18 Channel/Port 30 AMPS, 15A 9CH,5A 9CH,12V DC Power Supply Box, Individually Fused for CCTV, LED, and All 12V DC Devices (18 Port-12V30A, AC200~245V, CCTV Power Supply Box)
ItemPackageDimensions_Height : 8 inches
ItemPackageDimensions_Length : 11.8 inches
ItemPackageDimensions_Width : 7 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-distribution-units
Manufacturer : LiangHong
Material : metal
ModelName : CCTV-BOX12V
ModelNumber : 18 Port-12V30A
NumberOfItems : 50
OutputWattage : 360
PartNumber : CCTV Power Supply Box
PowerSupplyDesign : Non-Modular

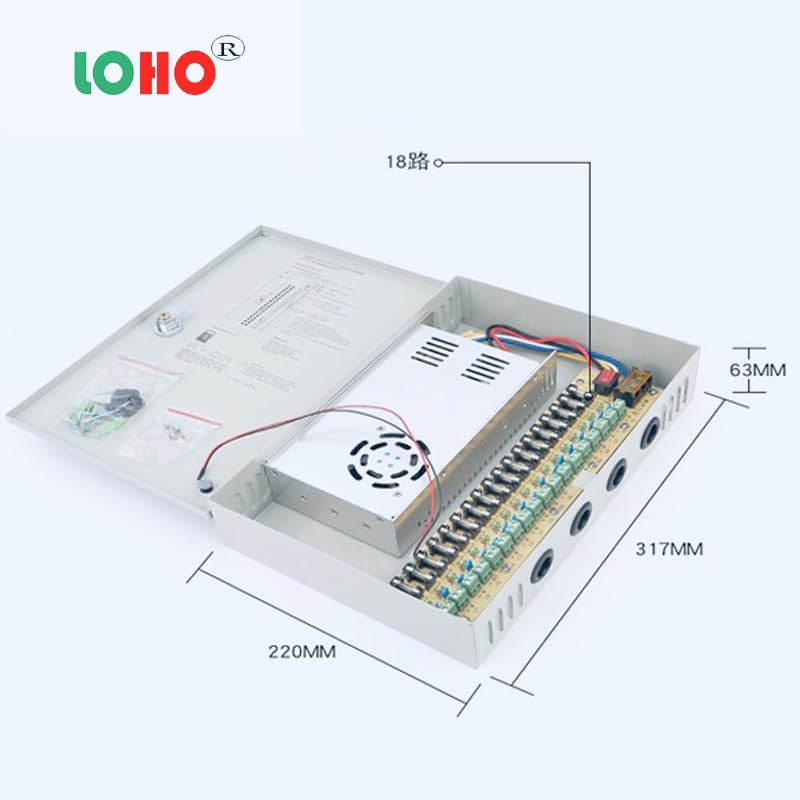

ProductDescription : DC Output : DC Voltage: 12V ... ( 60~ 120W~180W~350W ) . DC Current : 12V30A / 12V10A / 12V5A / 12V15A/ 12V20A ... There are many series models, please consult our customer service. Thank you . Ripple & Noise: 160MV , Size : 315X210X60mm , 305X215X53mm , 235X210X55mm , 163X163X45mm (L*W*H) ... DC Adjustable Range: Micro range voltage regulation . Voltage Tolerance: ±2.0% . Line Regulation: ±0.5% . Load Regulation : ±1% . Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC . AC Input AC Voltage Range: 85-264VAC . Frequency Range: 47-63Hz . Efficiency : 90% . Leakage Current< 0.5mA /240VAC . Protection Over-load: 105%-150% hiccup mode,Auto-recovery . Over-voltage: 115%-135% Cut Off the Output,Auto-recovery . Over-temp. : Shut down O/P voltage, Auto-recovery . Environment Working temp.: -10~ +60C° (Refer to output load derating curve) . Working Humidity:20 ~ 90% RH, non-condensing . Storage Temp.: -10~ +60C° . Storage Humidity: 10 ~ 95% RH . Safety Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH . Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC . Safety standards: CE,RoHS and others / Customized according to customer requirements, please consult us for details ...
ProductSiteLaunchDate : 2018-03-22T07:00:00.000Z
Size : 18 CH / 30 AMP , 9CH / 10A , 4CH / 5A
Style : AC200~245V
SupplierDeclaredDgHzRegulation : not_applicable
SupplierDeclaredHasProductIdentifierExemption : 1
UnspscCode : 43210000
WarrantyDescription : 3 Year Manufacturer
Wattage : 360 watts
