Specification
Brand : Larson Electronics
BulletPoint : Contact us today for information about custom options tailored to meet your specific needs

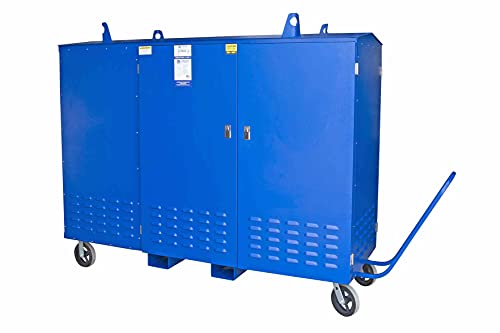

ItemName : 75KVA Mobile Power Distribution System - 480V to 208Y/120V 3PH - (38) Receptacles - Fully Enclosed/Ventilated N3R
ItemPackageDimensions_Height : 30 inches
ItemPackageDimensions_Length : 30 inches
ItemPackageDimensions_Width : 30 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-distribution-units
Manufacturer : Larson Electronics LLC
Material : Alloy Steel
ModelNumber : 257448
NumberOfItems : 1
PartNumber : 257448

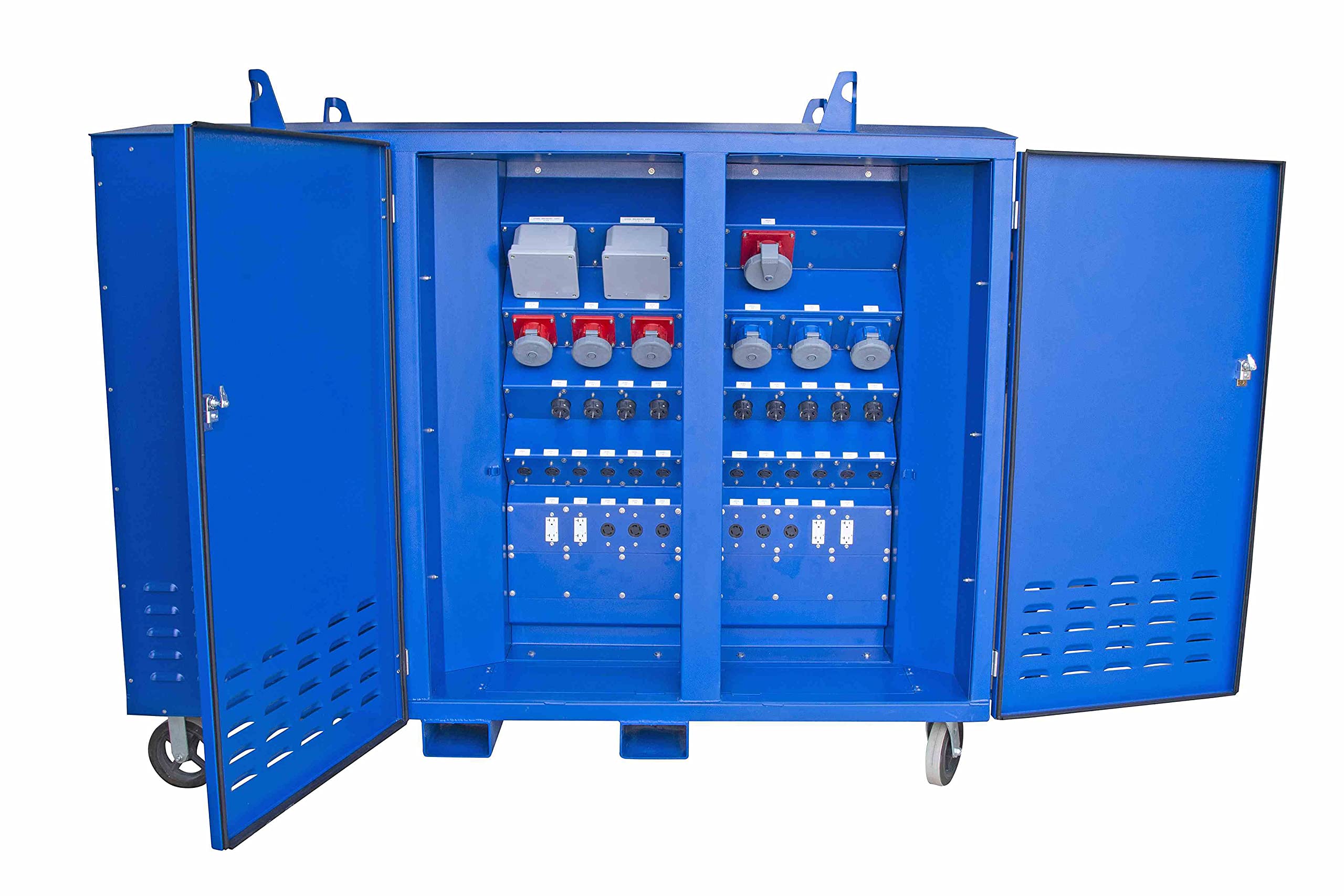

ProductDescription : Powers 480 volt, 208 volt and 120 volt equipment from a single system. On the primary side, operators connect three-phase 480 volt line-in power using a customer-provided cord and to one 4100R7W, three 460R7W and three L16-30R receptacles for 480V equipment and a terminal block enclosure. On the secondary side, three L15-30R and twelve L14-30R receptacles for 208V equipment and four 5-20R GFCI receptacles for 120V equipment are available in secondary side A. Secondary side B contains three 460R9W for 208V equipment, nine CS6369 receptacles for 120/208V equipment and a terminal block enclosure. A customer-provided cord brings three-phase 480V power to the 200-amp, three-phase 480V main circuit breaker on the primary side, which contains two 100-amp 3-pole 480V breakers with one of the breakers protecting one 100-amp 480V 4100R7W receptacle, three 60-amp 3-pole 480V breakers protecting three 60-amp 480V 460R7W receptacles and six 30-amp 3-pole 480V breakers with three of the 30-amp breakers protecting three 30-amp 480V L16-30R receptacles, as well as one (15) terminal-block enclosure, and passes power to the transformer. The NEMA 3R 75 KVA transformer converts 480V to 208Y/120V 60Hz and passes the current to the secondary side. The secondary side of the system contains two main circuit breakers. Secondary side A is a 200-amp, three-phase 208Y/120V main circuit breaker is equipped with three 30-amp 3-pole 250V breakers protecting three 30-amp 250V L15-30R receptacles, twelve 30-amp 2-pole 250V breakers protecting twelve L14-30R 250V receptacles and four 20-amp 1-pole breakers protecting four 20-amp 125V 5-20R GFCI receptacles. Secondary side B is a 200-amp, three-phase 208Y/120V main circuit breaker that contains three 60-amp 3-pole 250V breakers protecting three 60-amp 250V 460R9W receptacles and nine 50-amp 2-pole 250V breakers protecting nine 50-amp 125/250V CS6969 receptacles, as well as fifteen 20-amp 1-pole 125V breakers and one (15) terminal-block enclosure.
ProductSiteLaunchDate : 2024-04-26T19:09:35.343Z
RecommendedUsesForProduct : Outdoor
UnspscCode : 24101500
