Specification
Brand : 4PRO
BulletPoint1 : Generator remote start/stop outputs
BulletPoint2 : Suitable for 230V (1 phase), 230/400V(2-3 phase), 120/208V(3 phase), 120/240V (2 phase) 50/60Hz. source switching
BulletPoint3 : Automatic / Manual switching modes with an additional load disconnected position.
BulletPoint4 : External indicator connections. Built-in mechanical and electrical interlocking;
BulletPoint5 : Input and output resettable circuit breaker protection
CircuitType : 4-way
Color : Black
CompatibleDevices : Server, Network Switch, Router, Server Rack, UPS, Patch Panel, KVM, Monitor, Server Cabinet, Data Center Equipment
ConnectivityProtocol : X-10
ConnectorType : Screw Terminals
ControlMethod : remote
CurrentRating : 125 amps
ExternallyAssignedProductIdentifier1 : 636601330712
ExternallyAssignedProductIdentifier2 : 0636601330712
ExternallyAssignedProductIdentifier3 : 00767041026924
FormFactor : Tower
InternationalProtectionRating : IP54
ItemDisplayDimensions_Height : 7 inches
ItemDisplayDimensions_Length : 72 inches
ItemDisplayDimensions_Width : 9 inches
ItemDisplayWeight : 30 pounds

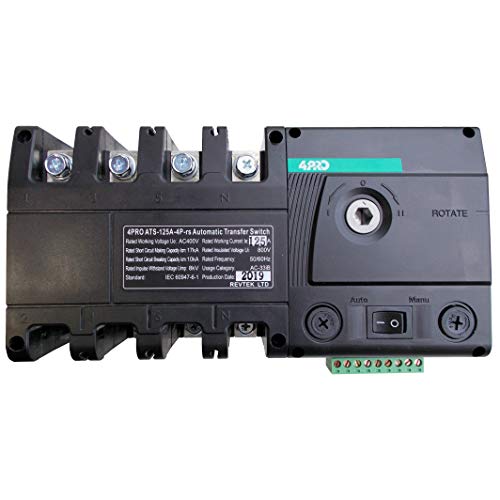

ItemName : 4PRO ATS-125A-4P-rs, 50/60Hz Automatic Changeover Transfer Switch
ItemPackageDimensions_Height : 55.88 centimeters
ItemPackageDimensions_Length : 7.62 centimeters
ItemPackageDimensions_Width : 24.13 centimeters
ItemPackageQuantity : 1
ItemTypeKeyword : power-distribution-units
Manufacturer : 4PRO
Material : Changeover
ModelName : PD5-004
ModelNumber : PD5-004
MountingType : Panel Mount, Surface Mount
NumberOfItems : 1
NumberOfPositions : 3
OperatingVoltage : 240 volts
OperationMode : Automatic
PackageLevel : unit
PartNumber : ATS-125A-4P-rs
PowerPlugType : type_b_3pin_na
ProductDescription : DESCRIPTION

The AT S-125A-rs changeover switch is designed to automatically transfer load circuits from main power source to reserve source in a wide variety of 1-3 phase applications.

FEATURES

- Electric motor gear activated switching;
- 1-3 phase 4 pole operation;
- Auto and Manual mode switch;
- 3 position switch handle(”I”-”0”-”II”);
- Generator start/stop remote control outputs;
- High reliability and low power consumption due to fixed positions of the change-over mechanism energized during switching process only;
- Front side position indication pointer and external lamp outputs;
- Control signal protection fuses;
- Built-in mechanical and electrical interlocking.

INPUTS AND OUTPUTS

- Normal source inputs: R, S, T, N;
- Reserve source inputs: R, S, T, N;
- Load cirquit outputs: R, S, T, N;
- External indication lamp outputs.

TECHNICAL SPECIFICATIONS

- Rated Operating Voltage: 230/400V(2-3 phase), 230V (1 phase), 120/208V(3 phase), 120/240V (2 phase).
- Voltage frequency: 50/60Hz.
- Switching poles: 4
- Rated operating current: up to 125А per device pole;
- Working temperature range: от -5'C до +40'C;
- Humidity: up to 95%;
- Installation type: vertical;
- Switching current: up to 0.5A;
- Switching time: 1-2 sec;
- Rated insulation voltage: 800V
- Rated impulse withstand voltage: 8kV
- Rated making capability: 10KA
- Rated short-time withstand currrent Ie 30ms:17KA
- Nominal control supply voltage: 230VAC
- Life switching cycles: up to 10000;
- Use category: AC-331B;
- Altitude: up to 2000 meters;
- Protection class: IP30
- Weight: 2.2 kg.
ProductSiteLaunchDate : 2019-08-13T09:31:57.680Z
StreetDate : 2019-08-12T00:00:01Z
Style : GXT5 PD5-004
SupplierDeclaredDgHzRegulation : unknown
SwitchType : Mechanical
TotalPowerOutlets : 6
UnitCount : 1
UnspscCode : 39122200
Voltage : 230 volts
WarrantyDescription : 22 year manufacturer
Wattage : 21450 watts
