Specification
Brand : Larson Electronics
BulletPoint : Contact us today for information about custom options tailored to meet your specific needs

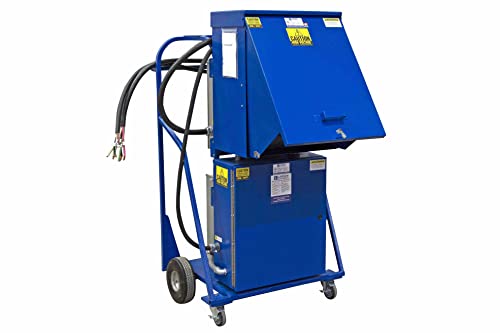

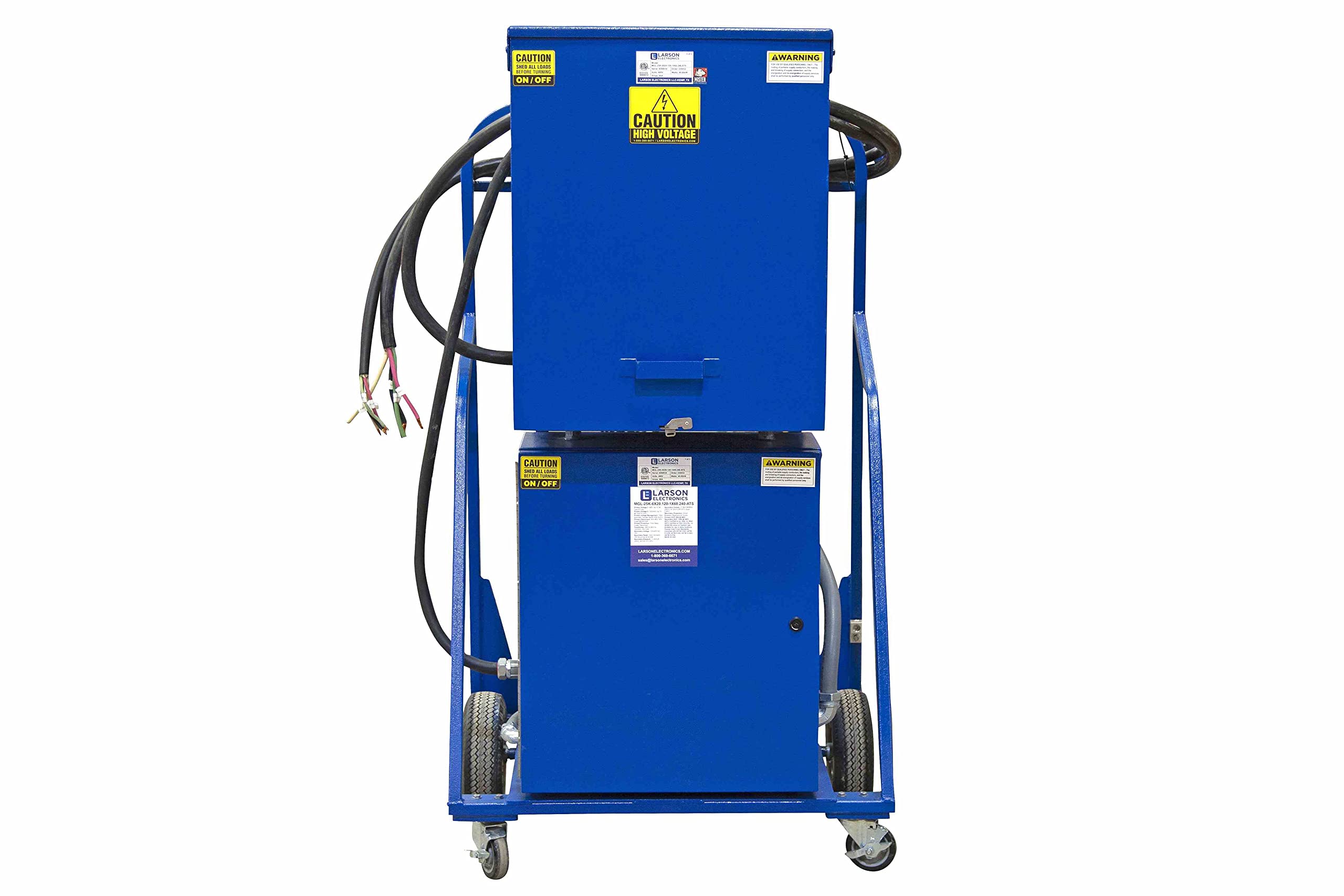

ItemName : 25KVA Temporary Power Distribution w/ 240V ATS - 480V to 120/240V 1PH - (1) 360R6W (6) 5-20R GFCI
ItemPackageDimensions_Height : 69 inches
ItemPackageDimensions_Length : 48 inches
ItemPackageDimensions_Width : 40 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-distribution-units
Manufacturer : Larson Electronics LLC
Material : Copper
ModelNumber : 104844
NumberOfItems : 1
PartNumber : 104844
ProductDescription : This portable power distribution system powers240 volt and 120 volt equipment from a single system. On the primary side, operators connect 480V using a 10` #8 Type W cord. On the secondary side, operators connect to one 360R6W receptacle for 240V equipment and to six 5-20R GFCI quad receptacles for 120V equipment. All receptacles are equipped with weatherproof covers. Operators may also access an automatic transfer switch with 10` of #4 Type W cord on the secondary side. A 10` #8 Type W cord brings three-phase 480V power to the NEMA 3R 60-amp 480V three phase primary disconnect, which contains two 60-amp time delay fuses, and passes single-phase 480V power through to the transformer. The NEMA 3R 25 KVA transformer converts single-phase 480V to single-phase 120/240V and passes the current to the secondary side. The secondary side of the transformer feeds a NEMA 3R 100-amp 120/240V single phase shunt-trip main circuit breaker panel. This secondary side contains one 60-amp 2-pole 250V breaker protecting one 60-amp 250V 360R6W receptacle and six 20-amp 1-pole 125V breakers protecting six 20-amp 125V 5-20R GFCI quad receptacles. Certification: Larson Electronics is a UL 1640 panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. If this model does not meet your needs, please contact us to discuss your specific requirements.
ProductSiteLaunchDate : 2024-04-26T19:09:43.582Z
UnspscCode : 32000000
