Specification
Brand : Larson Electronics
BulletPoint : Contact us today for information about custom options tailored to meet your specific needs
IsAssemblyRequired : 1

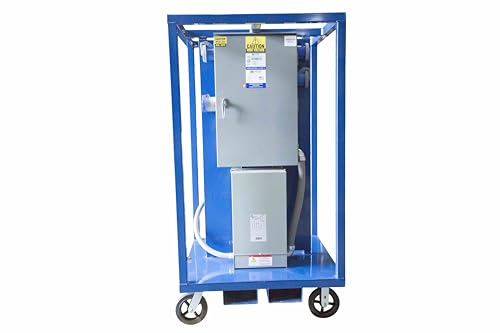

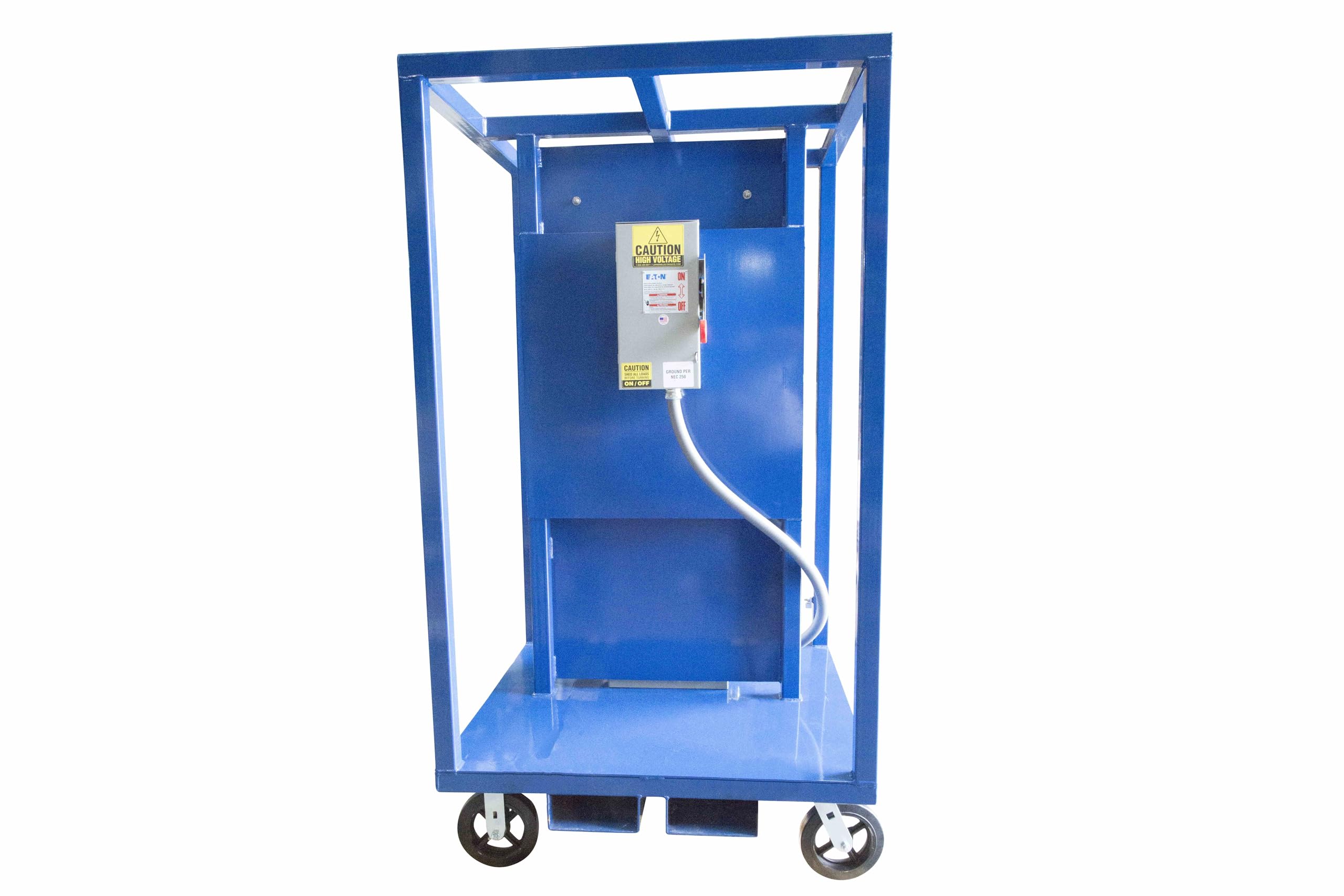

ItemName : 25 KVA Power Distribution Panel - 480V to 120/240V 1PH - (3) 360R6W (1) 3100R6W Receptacles
ItemPackageDimensions_Height : 65 inches
ItemPackageDimensions_Length : 40 inches
ItemPackageDimensions_Width : 50 inches
ItemPackageQuantity : 1
ItemTypeKeyword : power-distribution-units
Manufacturer : Larson Electronics LLC
Material : carbon
ModelNumber : 150237
NumberOfItems : 1
NumberOfWheels : 4
PartNumber : 150237
PowerSourceType : Corded Electric
ProductDescription : This portable power distribution system powers240V equipment from a single system. On the primary side, operators connect 480 volt using a customer provided cord. On the secondary side, operators connect to one 100-amp, 3100R6W receptacle and to three 60-amp, 360R6W receptacles for single phase 240V equipment. A customer provided cord brings 480V power to the NEMA 3R 60-amp, 480V three phase primary disconnect, which contains two 60-amp time delay fuses, and passes 480V single phase through to the transformer. The NEMA 3R 25 KVA transformer converts 480V power to 120/240V single phase and passes the current to the secondary side. The secondary side of the transformer feeds a NEMA 3R 125-amp, 120/240V single phase main lug only panel. This secondary side contains one 100-amp, 2 pole breaker protecting one 100-amp, 240V single phase 3100R6W pin/sleeve receptacle and three 50-amp, 2 pole breakers protecting three 60-amp, 240V single phase 360R6W receptacles. All receptacles are equipped with weatherproof covers. The transformer and load assembly is mounted on a 3/16" thick carbon steel mounting platform and the load center/distribution assembly is mounted to the standard 2" x 2" x 1/8" square carbon steel tubing frame, resulting in an extremely stable, durable and well protected power distribution platform. This model is equipped with forklift skid pockets, locking casters, and a top located lifting eyelet which allows easy lifting with cable or chain hooks. Larger units are available upon request and can be equipped with skids or trailer mounted. Certification: Larson Electronics is a UL 1640 panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. If this model does not meet your needs, please contact us to discuss your specific requirements.
ProductSiteLaunchDate : 2024-04-26T19:09:28.015Z
RecommendedUsesForProduct : Outdoor
TargetAudience : Unisex Adult
UnspscCode : 60141000
