Specification
Brand : T TORY CARRIER
BulletPoint1 : Full Electric Tugger, load capacity of 2200 lbs, overall width: 20.5", overall length: 50.4", overall height: 48".
BulletPoint2 : This industrial trailer is designed to pull loads, thus reducing the burden on the operator and the risk of accidents and injuries, perfect for use in warehouses, factory floors, airports, hospitals and retail stores.
BulletPoint3 : Multi-function handle with PIN and turtle buttons, throttle, forward and reverse controls and horn. An additional emergency stop button keeps the safty.
BulletPoint4 : Compact design for confined spaces, good pass-through, rubber drive wheels and PU balance wheels, the electric tractor provides excellent traction and stability, provides good grip(Required for use on level ground).
BulletPoint5 : Removable lithuim battery for easy charging and changing. Battery voltage 24V.
Color : Yellow
Hazmat1 : LITHIUM ION BATTERIES PACKED WITH EQUIPMENT
Hazmat10 : CN_SmallLithiumIonBatteryWithEquipment
Hazmat11 : DE_SmallLithiumIonBatteryWithEquipment
Hazmat12 : EG_SmallLithiumIonBatteryWithEquipment
Hazmat13 : ES_SmallLithiumIonBatteryWithEquipment
Hazmat14 : FR_SmallLithiumIonBatteryWithEquipment
Hazmat15 : GB_SmallLithiumIonBatteryWithEquipment
Hazmat16 : IN_SmallLithiumIonBatteryWithEquipment
Hazmat17 : IT_SmallLithiumIonBatteryWithEquipment
Hazmat18 : JP_SmallLithiumIonBatteryWithEquipment
Hazmat19 : MX_SmallLithiumIonBatteryWithEquipment
Hazmat2 : UN3481
Hazmat20 : NL_SmallLithiumIonBatteryWithEquipment
Hazmat21 : PL_SmallLithiumIonBatteryWithEquipment
Hazmat22 : SA_SmallLithiumIonBatteryWithEquipment
Hazmat23 : SE_SmallLithiumIonBatteryWithEquipment
Hazmat24 : SG_SmallLithiumIonBatteryWithEquipment
Hazmat25 : TR_SmallLithiumIonBatteryWithEquipment
Hazmat26 : US_SmallLithiumIonBatteryWithEquipment
Hazmat27 : ZA_SmallLithiumIonBatteryWithEquipment
Hazmat3 : II
Hazmat4 : 9
Hazmat5 : AE_SmallLithiumIonBatteryWithEquipment
Hazmat6 : AU_SmallLithiumIonBatteryWithEquipment
Hazmat7 : BE_SmallLithiumIonBatteryWithEquipment
Hazmat8 : BR_SmallLithiumIonBatteryWithEquipment
Hazmat9 : CA_SmallLithiumIonBatteryWithEquipment

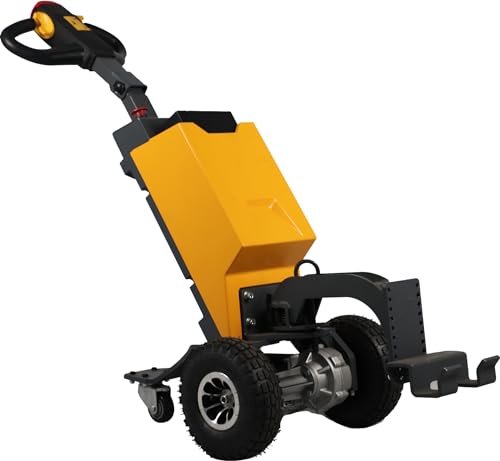

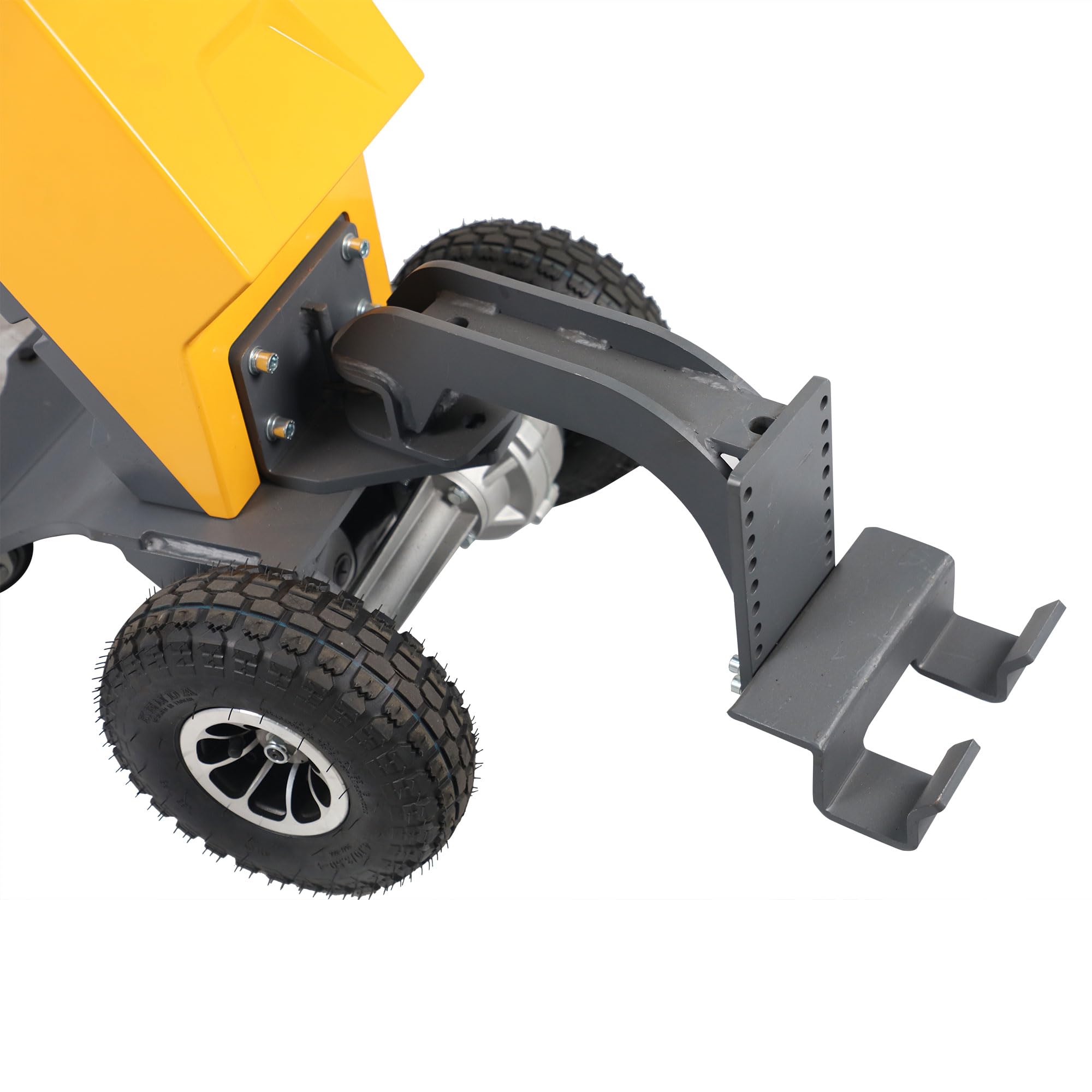

ItemName : Tory Carrier Electric Tugger, Powered Tractor, 2200 lbs Capacity Electric Auxiliary Traction Trailer for Pulling Industrial Carts, Hoppers, Trash Cans, Trailers, and Tow Bars
ItemPackageDimensions_Height : 48 inches
ItemPackageDimensions_Length : 20.5 inches
ItemPackageDimensions_Width : 50.4 inches
ItemTypeKeyword : pallet-trucks
LoadCapacity : 2200 LBS
Manufacturer : T Tory Carrier
Material : Rubber
ModelName : A-6003
ModelNumber : A-6003
NumberOfItems : 1
NumberOfWheels : 4
PartNumber : A-6003
ProductDescription :

Rated Capacity/Rated Load: 2200 lbs

Rated Drawbar Pull: 200 N

Wheelbase: 13.4 inch

Item Weight

Service Weight(With Battery): 165 lbs

Axle Load, Front/Rear, Laden: 165/0 lbs

Axle Load, Front/Rear, Unladen: 110/55 lbs

Tires

Tires: Pneumatic Rubber

Tire Size: Front 9.8x3.1 inch

Tire Size Rear: 3x1.3 inch

Wheel Number, Front/Rear (x = Driving Wheel): 2x/2 inch

Tread, Front: 16.9 inch

Tread, Rear: 8.5 inch

Dimension

Overall Height: 39-44.5-47.2 feet

Height Drawbar In Driving Position Min./Max.: 37-41.3-43.3 feet

Overall Length: 47.6-50.4-53 inch

Overall Width: 20.5 inch

Ground Clearance, Centre Of Wheelbase: 1.4 inch

Performance Data

Travel Speed, Laden/Unladen: 2.8/3.1 km/h(mph)

Drawbar Pull, Laden/Unladen: 200 N

Max. Drawbar Pull, Laden/Unladen: 600 N

Max.Gradeability, Laden/Unladen: 3/16%

Service Brake: Electromagnetic

Power

Drive Motor Rating S2 60 min: 0.4kW

Battery Voltage/Nominal Capacity Lithium: 24/30 (V)/(Ah) or kWh
